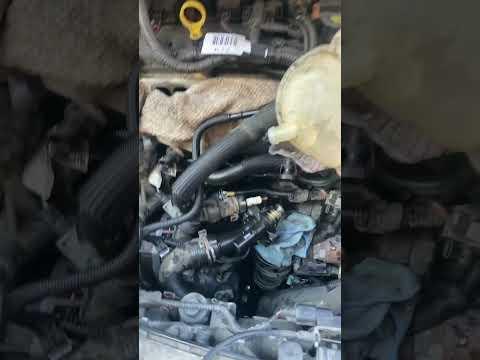

🔧 Escape - Alternator Replacement

Replacing the alternator on your Escape means removing the drive belt, disconnecting the battery and alternator wiring, then unbolting the alternator from the engine. The alternator keeps the battery charged while the engine runs, so replacement is needed if it is not charging correctly, making noise, or setting charging-system warnings.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring. The alternator main cable is always connected to battery power.
• ⚠️ Let the engine cool completely before working near the turbocharger, exhaust, and cooling fan area.
• ⚠️ Keep fingers clear of the belt and pulleys. The belt tensioner is spring-loaded and can snap back quickly.
• ⚠️ Support the hood securely and work on a level surface with the parking brake applied.
• ⚠️ If raising the front of your Escape for access, use jack stands. Never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 1/4-inch ratchet
• 3/8-inch ratchet
• 3/8-inch breaker bar
• 3-inch extension
• 6-inch extension
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench 5-80 Nm
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• Park your Escape on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool fully.
• Write down any radio presets if needed. Disconnecting the battery may reset some settings.
• A serpentine belt is the single ribbed belt that drives accessories like the alternator and A/C compressor.
• A belt tensioner is a spring-loaded pulley that keeps the belt tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket and ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot touch the terminal.
• Always disconnect negative first.

Step 2: Raise and Support the Front

• Use a floor jack rated 2-ton minimum to lift the front of your Escape at the proper front jacking point.
• Place jack stands rated 2-ton minimum under the front support points.
• Gently lower the vehicle onto the jack stands and give it a light shake to confirm it is stable.
• Wear safety glasses before working underneath.

Step 3: Remove the Lower Splash Shield

• Use an 8mm socket to remove the lower splash shield fasteners.
• Use a trim clip removal tool to remove any plastic push clips.
• Lower the splash shield and set it aside.
• Keep clips in a cup.

Step 4: Record the Belt Routing

• Use your phone to take a clear photo of the serpentine belt path before removing it.
• If the belt routing decal is visible under the hood, compare it with your photo.
• This helps prevent installing the belt around the pulleys incorrectly.

Step 5: Remove the Serpentine Belt

• Use a serpentine belt tool or 3/8-inch breaker bar on the belt tensioner.
• Rotate the tensioner slowly to relieve belt tension.
• Slide the belt off the alternator pulley first, then slowly release the tensioner.
• Remove the belt from the remaining pulleys.
• Release the tensioner slowly.

Step 6: Disconnect the Alternator Electrical Connectors

• Use a flat-blade screwdriver to gently release the locking tab on the small alternator electrical connector.
• Pull the connector straight off. Do not pull on the wires.
• Use a 10mm socket or 13mm socket to remove the nut from the large alternator battery cable terminal, depending on the replacement unit style.
• Move the cable aside and keep the terminal from touching metal.

Step 7: Remove the Alternator Mounting Bolts

• Use a 13mm socket, 15mm socket, ratchet, and extensions as needed to remove the alternator mounting bolts.
• Support the alternator with one hand while removing the final bolt.
• Carefully work the alternator out of the mounting bracket.
• If it feels stuck, gently rock it by hand. Do not pry against plastic parts or wiring.

Step 8: Compare the New Alternator

• Place the old and new alternators side by side.
• Check that the pulley, mounting ears, electrical connector, and battery cable stud are in the same positions.
• Spin the new pulley by hand. It should turn smoothly with no grinding.

Step 9: Install the New Alternator

• Position the new alternator into the engine bracket by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 13mm socket or 15mm socket to snug the bolts evenly.
• Use a torque wrench 5-80 Nm to tighten the alternator mounting bolts to Torque to 48 Nm (35 ft-lbs).

Step 10: Reconnect the Alternator Wiring

• Install the large battery cable onto the alternator output stud.
• Use a 10mm socket or 13mm socket and torque wrench 5-80 Nm to tighten the alternator output terminal nut to Torque to 10 Nm (89 in-lbs).
• Push the small electrical connector into the alternator until it clicks.
• Apply battery terminal protectant lightly to exposed battery cable connection areas if needed.

Step 11: Install the Serpentine Belt

• Route the belt around all pulleys except the alternator pulley using your photo as a guide.
• Use the serpentine belt tool or 3/8-inch breaker bar to rotate the tensioner again.
• Slide the belt over the alternator pulley.
• Slowly release the tensioner and inspect every pulley to make sure the belt ribs sit fully in the grooves.
• One rib off can destroy the belt.

Step 12: Reinstall the Lower Splash Shield

• Raise the splash shield into place by hand.
• Use a trim clip removal tool to reinstall plastic push clips.
• Use an 8mm socket to reinstall the splash shield fasteners.
• Tighten plastic shield fasteners snug only. Do not overtighten them.

Step 13: Lower the Vehicle

• Use the floor jack rated 2-ton minimum to raise the front slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower your Escape slowly to the ground.

Step 14: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket to tighten the negative terminal clamp snugly.
• Do not overtighten the clamp because the battery post can be damaged.

---

✅ After Repair

• Start your Escape and let it idle.
• Watch the belt for smooth tracking. Shut the engine off immediately if the belt wobbles, squeals, or walks off a pulley.
• Check that the battery warning light turns off after startup.
• If you have a multimeter, check battery voltage at idle. A healthy charging system is typically about 13.5-14.8 volts.
• Turn on headlights, blower fan, and rear defogger. Make sure the engine continues running normally and no battery warning appears.
• Some idle relearn behavior may occur after battery disconnect. Let the engine idle for a few minutes, then drive normally.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $250-$500 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
