🔧 Highlander - A/C Compressor Replacement

You’ll be removing the old A/C compressor and installing a new one, plus related seals and (usually) the receiver/drier. This is mainly a mechanical job, but the refrigerant side must be handled with proper equipment.

Difficulty Level: Advanced | Estimated Time: 4-6 hours (not counting shop A/C work)

---

⚠️ Safety & Precautions

• ⚠️ Do NOT vent refrigerant to the air. It is illegal and dangerous; have a shop evacuate and later recharge the system with a recovery machine.
• ⚠️ Refrigerant can cause frostbite and eye injury; avoid any contact with skin or eyes.
• ⚠️ Always support the Highlander with jack stands, never rely only on a floor jack.
• ⚠️ Let the engine cool fully before working near belts, pulleys, or hot components.
• ⚠️ Disconnect the negative battery terminal to avoid accidental starts and shorts.
• ⚠️ Keep dirt and moisture out of any open A/C lines; even small contamination can damage the new compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench
• 🛠️ Extension bar set (3"-6")
• 🛠️ Serpentine belt tool or 1/2" drive breaker bar (specialty)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Needle-nose pliers
• 🛠️ Line wrench set (metric)
• 🛠️ Pry bar (small)
• 🛠️ Oil drain pan or catch pan
• 🛠️ Clean funnel (small)
• 🛠️ Digital scale (for measuring compressor oil)
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ OBD2 scan tool (basic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor (correct for 3.5L V6, with clutch) - Qty: 1
• 🔩 A/C compressor mounting bolts (if one-time-use) - Qty: 1 set
• 🔩 A/C compressor O-ring set - Qty: 1 kit
• 🔩 Receiver/drier or desiccant bag (if serviceable separately) - Qty: 1
• 🔩 Expansion valve O-rings - Qty: 1 set
• 🔩 PAG A/C compressor oil (Toyota-spec viscosity) - Qty: as required by compressor
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 New plastic clips for splash shield / under covers - Qty: 1 set
• 🔩 R-134a refrigerant (for shop recharge) - Qty: as required by system
• 🔩 Nitrile gloves (disposable) - Qty: 1 box
• 🔩 Brake cleaner or A/C-safe cleaner (for cleaning oil residue) - Qty: 1 can

---

📋 Before You Begin

• Park the Highlander on level ground, set the parking brake, and chock the rear wheels.
• Have a local A/C shop recover the refrigerant completely before you disconnect any A/C lines.
• Open the hood and note the A/C refrigerant and oil type/amount on the under-hood label.
• Disconnect the negative battery terminal with a 10mm socket and move the cable aside.
• Gather clean caps or tape to seal open A/C line ends so dust and moisture cannot enter.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the front

• Use the floor jack at the front jacking point shown in your owner’s manual.
• Place the Highlander onto jack stands under the proper support points on both sides.
• Leave the floor jack lightly touching as a backup, but not bearing full weight.

Step 2: Remove the engine under covers / splash shields

• Use the trim clip removal tool to pop out plastic clips from the front splash shield.
• Remove any bolts with a 10mm socket and 3/8" ratchet.
• Lower the splash shield and set it aside along with all hardware.

Step 3: Remove the serpentine belt

• Take a picture or make a sketch of the belt routing before removal.
• Place the serpentine belt tool or 1/2" breaker bar into the tensioner square drive.
• Rotate the tensioner to relieve tension, then slide the belt off the A/C compressor pulley.
• Slowly release the tensioner back to its rest position and remove the belt from the other pulleys.

Step 4: Disconnect electrical connectors from the compressor

• Locate the electrical connector(s) on the compressor body.
• Press the tab using your fingers or a flathead screwdriver and gently pull the connectors off.
• Move the harness out of the way so it cannot get pinched or damaged.

Step 5: Disconnect A/C lines from the compressor

• Confirm again that the system has been evacuated by a shop before doing this step.
• Use the correct line wrench or 12mm/14mm socket to loosen the A/C line bolts at the compressor.
• Carefully pull the lines away from the compressor and immediately cap or tape the openings on the lines.
• Remove the old O-rings from the line ends and discard them.

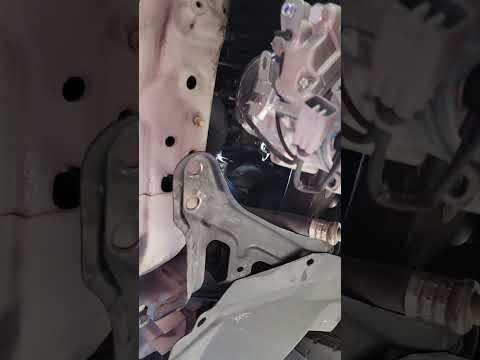

Step 6: Unbolt and remove the old compressor

• Support the compressor with one hand or a small pry bar if needed.
• Remove the compressor mounting bolts using a 14mm socket and 3/8" ratchet.
• Once all bolts are out, carefully lower the compressor out from the bottom of the engine bay.
• If it sticks, gently wiggle it free without prying on aluminum parts.

Step 7: Drain and measure oil from the old compressor

• Place the old compressor over a drain pan.
• Rotate the compressor by hand and pour the oil out into a clean container.
• Use the digital scale or markings on the container to measure how much oil came out.
• Match new oil amount to old within spec range

Step 8: Prepare the new compressor

• Check any instructions included with the new compressor regarding pre-filled oil.
• If required, add the correct PAG oil through the compressor ports using a small funnel.
• Rotate the compressor clutch/pulley by hand several times to distribute the oil.
• Install new O-rings on the compressor ports if they are compressor-mounted types.

Step 9: Install the new compressor

• Position the new compressor into place from the bottom of the engine bay.
• Hand-thread the mounting bolts to avoid cross-threading.
• Tighten the bolts with a 14mm socket and 3/8" ratchet.
• Torque to manufacturer specification (see service manual)

Step 10: Reconnect A/C lines with new O-rings

• Lightly coat each new O-ring with a small amount of clean PAG oil.
• Install the O-rings onto the line fittings, not into the compressor ports.
• Position the lines onto the compressor ports and install the line bolts by hand.
• Tighten using the correct line wrench or 12mm/14mm socket.
• Torque to manufacturer specification (see service manual)

Step 11: Reconnect the electrical connectors

• Plug the compressor electrical connectors back into their sockets until they click.
• Verify they are fully seated and that the harness is routed away from moving parts.

Step 12: Replace the receiver/drier or desiccant (if applicable)

• Locate the receiver/drier (often integrated in the condenser on this Toyota platform).
• If your replacement is a desiccant bag, follow the kit instructions to open the end section and swap the bag, using a 10mm socket if needed.
• Install new O-rings and seals that come with the receiver/drier or bag kit.
• Torque to manufacturer specification (see service manual)

Step 13: Install a new serpentine belt

• Route the new belt exactly according to the diagram you took earlier.
• Use the serpentine belt tool or 1/2" breaker bar to rotate the tensioner and slip the belt over the final pulley.
• Make sure the belt sits in the grooves on every pulley.

Step 14: Reinstall splash shield and lower the vehicle

• Position the splash shield back into place under the engine.
• Install bolts with a 10mm socket and any new clips with the trim clip tool.
• Raise the Highlander slightly with the floor jack, remove the jack stands, then lower it to the ground.

Step 15: Reconnect battery and prepare for recharge

• Reconnect the negative battery terminal using a 10mm socket and tighten it securely.
• Drive or tow the Highlander to an A/C shop for vacuum and recharge.
• Tell them a new compressor and receiver/drier were installed so they can add the correct oil and refrigerant amount.

---

✅ After Repair

• Have the A/C system evacuated, leak-tested, and recharged by a shop to the exact factory refrigerant weight and oil quantity.
• With the engine running, switch the A/C on MAX and verify cold air from all vents.
• Listen for abnormal noises such as squealing, grinding, or rapid clicking from the compressor area.
• Use your OBD2 scan tool to check for and clear any stored A/C or engine-related fault codes.
• Over the next few days, watch for any new spots of oily residue around A/C connections under the hood.

---

💰 DIY vs Shop Cost

Shop Cost: $1,400-$2,000 (parts + labor + recharge)

DIY Cost: $450-$800 (parts only; plus shop recharge)

You Save: $600-$1,200 by doing the mechanical work yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours plus A/C machine time.

---
