🔧 Escape - A/C Compressor Replacement

On your Escape, the A/C compressor is the pump that circulates refrigerant and oil through the A/C system. Replacing it is a mechanical job plus a refrigerant recovery/evacuation/recharge process—refrigerant handling must be done with proper R-1234yf equipment.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant—R-1234yf must be recovered with proper equipment.
• ⚠️ R-1234yf is mildly flammable; keep sparks/heat away and work in a ventilated area.
• ⚠️ Wear eye protection—refrigerant can cause frostbite and eye injury.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor connector.
• ⚠️ Never run the A/C with low/no refrigerant—compressor damage can occur.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip removal tool
• Metric socket set (8mm-15mm)
• 3/8" ratchet
• 3/8" torque wrench (5-60 Nm range)
• Extensions (3" and 6")
• Serpentine belt tool (specialty)
• Line/cap plug kit for A/C fittings
• R-1234yf recovery/recharge machine (specialty)
• R-1234yf manifold gauge set (specialty)
• Vacuum pump (specialty)
• Electronic refrigerant leak detector (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• R-1234yf refrigerant - Qty: As specified on under-hood A/C label
• PAG oil for R-1234yf systems - Qty: As specified / measured

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant recovered first using an R-1234yf recovery/recharge machine (specialty). Many DIYers have a shop do this.
• Open the hood and confirm the system refrigerant type and factory charge amount on the under-hood A/C label.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the R-1234yf manifold gauge set (specialty) and use the R-1234yf recovery/recharge machine (specialty) to recover refrigerant from the system.
• If you don’t have this equipment, have a shop recover it first, then continue with the mechanical steps.

Step 2: Raise the front of the vehicle and remove the lower covers

• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower splash shield/undertray fasteners using a trim clip removal tool and 8mm socket.

Step 3: Remove the drive belt from the A/C compressor

• Relieve belt tension using a serpentine belt tool (specialty).
• Slip the belt off the A/C compressor pulley area and move it aside.
• Take a quick photo of belt routing.

Step 4: Disconnect the compressor electrical connector

• Locate the compressor connector and unplug it by hand; use a trim clip removal tool if the locking tab is stubborn.

Step 5: Disconnect the A/C lines from the compressor

• Clean around the line connection to keep dirt out.
• Remove the A/C line retaining bolts using an 8mm socket (some fittings use a small bolt at the manifold block).
• Carefully pull the lines/manifold off the compressor.
• Immediately cap/plug the open lines using a line/cap plug kit for A/C fittings.
• Remove and discard old O-rings.
• When reinstalling later: Torque the A/C line/manifold bolts to 10 Nm (89 in-lbs).
• Use only clean PAG oil to lube O-rings.

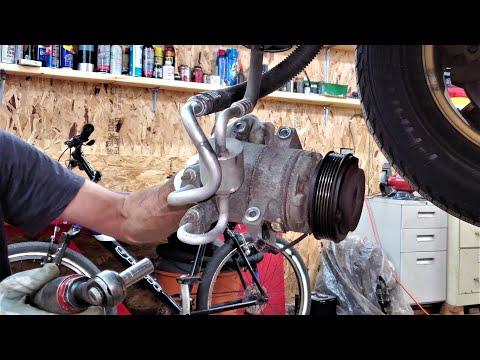

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a 13mm socket and extensions (3" and 6").
• Lower and remove the compressor from the vehicle.
• On installation: Torque the A/C compressor mounting bolts to 25 Nm (18 ft-lbs).

Step 7: Prepare and install the new compressor

• If your new compressor ships with oil, follow the instructions included with it.
• Measure oil drained from the old compressor and add the same amount of correct PAG oil for R-1234yf systems to the new compressor (unless the new unit is pre-filled per its instructions).
• Install the compressor and hand-start bolts to avoid cross-threading.
• Tighten mounting bolts with a 3/8" torque wrench: Torque to 25 Nm (18 ft-lbs).

Step 8: Reconnect A/C lines with new O-rings

• Install new O-rings and lightly lubricate them with clean PAG oil for R-1234yf systems.
• Reinstall the line manifold and bolts using an 8mm socket.
• Tighten with a 3/8" torque wrench: Torque to 10 Nm (89 in-lbs).

Step 9: Reconnect electrical and reinstall the belt and shields

• Plug the compressor connector back in until it clicks.
• Reinstall the drive belt using the serpentine belt tool (specialty).
• Reinstall the undertray using a trim clip removal tool and 8mm socket.
• Reconnect the negative battery cable using a 10mm socket.

Step 10: Evacuate, leak-check, and recharge the A/C system

• Connect the R-1234yf manifold gauge set (specialty) and pull vacuum using a vacuum pump (specialty) (this removes air/moisture).
• Verify vacuum holds (no rapid loss). If it won’t hold, find leaks before charging.
• Charge the exact amount listed on the under-hood A/C label using the R-1234yf recovery/recharge machine (specialty).
• Use an electronic refrigerant leak detector (specialty) around the compressor and line joints to confirm no leaks.

---

✅ After Repair

• Start your Escape and set A/C to MAX with blower high; confirm cold air and stable vent temperature.
• Listen for abnormal noises near the compressor area.
• Recheck for leaks after a short drive using an electronic refrigerant leak detector (specialty).

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$2,200 (parts + labor + recover/evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have refrigerant service handled)

You Save: $400-$1,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
