🔧 Telluride - A/C Compressor Replacement

Replacing the A/C compressor on your Telluride means removing the drive belt and A/C lines, swapping the compressor, then evacuating and recharging the refrigerant by weight. The big “gotcha” is the refrigerant must be safely recovered (not vented), and the system must be vacuumed before recharging or it won’t cool correctly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Quick check (2 questions so I keep this trim-accurate):

• 🧾 What refrigerant is on your under-hood A/C label: R-1234yf or R-134a?
• 🔍 Did the old compressor seize/grind or did it mainly leak/not engage? (Seized can mean debris in the system.)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is high-pressure and can cause frostbite/blindness—do not loosen A/C lines until the refrigerant is professionally recovered.
• ⚠️ Never vent refrigerant to the air—recovery requires proper equipment.
• ⚠️ Keep hands/tools clear of the belt path when checking operation.
• 🔋 Disconnecting the battery is recommended before unplugging the compressor connector.
• 🔥 Work on a cool engine to avoid burns near the front of the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (10-150 ft-lbs)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Pick set
• Line/flare-nut wrench set (metric)
• Catch pan
• Shop rags
• A/C manifold gauge set (R-1234yf or R-134a specific)
• A/C vacuum pump (specialty)
• Refrigerant charging scale (specialty)
• Refrigerant recovery machine (specialty)
• UV leak light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (Telluride 3.8L) - Qty: 1
• A/C compressor O-ring set - Qty: 1
• PAG A/C oil (correct type for your refrigerant/system) - Qty: 1
• Refrigerant (match under-hood label: R-1234yf or R-134a) - Qty: 1
• Serpentine belt - Qty: 1
• Receiver/drier or condenser assembly (only if system is contaminated) - Qty: 1
• Expansion valve (only if system is contaminated) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks.
• Have a shop recover the refrigerant using a recovery machine before you open any A/C line.
• Disconnect the battery negative terminal using a 10mm socket.
• Look at the under-hood A/C label and write down: refrigerant type and factory charge weight. You must recharge by weight using a charging scale.
• Take photos before unplugging/undoing anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

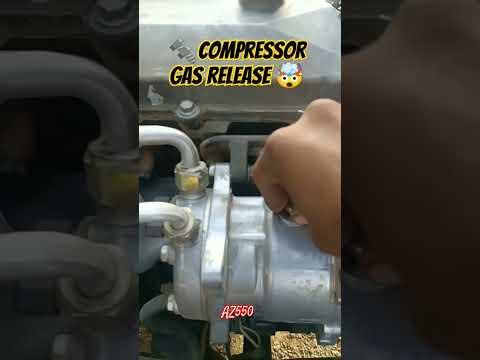

Step 1: Recover the refrigerant (required)

• Have the refrigerant recovered with a refrigerant recovery machine (specialty) at a shop or by a properly equipped tech.
• Do not continue until the system is confirmed at 0 psi on an A/C manifold gauge set.

Step 2: Disconnect battery power

• Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back.

Step 3: Raise and access the front lower area (as needed)

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove any lower splash shield panels using a trim clip removal tool and metric socket set (8mm-19mm).

Step 4: Remove the serpentine belt

• Relieve belt tension using a serpentine belt tool (specialty).
• Slip the belt off the A/C compressor pulley first, then remove it fully if you’re replacing the belt.
• Sketch the belt routing before removal.

Step 5: Unplug the compressor electrical connector

• Release the connector lock and unplug it by hand; if stuck, use a pick set gently on the lock tab.

Step 6: Remove the A/C lines from the compressor

• Place a catch pan and shop rags under the compressor area.
• Remove the line fasteners using a metric socket set (8mm-19mm) or line/flare-nut wrench set (metric) (use the flare-nut wrench if the fitting is a tube nut).
• Remove and discard the old O-rings using a pick set.
• Cap/cover the open lines to keep dirt and moisture out.

Step 7: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the mounting bolts using a metric socket set (8mm-19mm) and 3/8" ratchet.
• Remove the compressor from the bracket and lower it out carefully.

Step 8: Set the oil amount (critical)

• Drain the old compressor oil into a catch pan and measure what came out (this helps match oil quantity).
• Check the new compressor’s oil (some ship pre-filled). Adjust using the correct PAG A/C oil.
• If your old compressor failed catastrophically (seized/grinding), stop and plan for contamination parts (condenser/drier + expansion valve) before reassembly.

Step 9: Install the new compressor

• Position the compressor and hand-start all mounting bolts.
• Tighten using a torque wrench (10-150 ft-lbs) to Torque to Kia factory specification.

Step 10: Reconnect A/C lines with new O-rings

• Install new O-rings from the A/C compressor O-ring set.
• Lightly lubricate O-rings with a small amount of PAG A/C oil (this prevents tearing).
• Reinstall the lines and tighten fasteners using a torque wrench (10-150 ft-lbs) to Torque to Kia factory specification.

Step 11: Reinstall belt and panels

• Route the belt correctly and apply tension using the serpentine belt tool (specialty).
• Reinstall any splash shields using a trim clip removal tool and metric socket set (8mm-19mm).
• Lower the vehicle from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 12: Evacuate the system (remove air/moisture)

• Connect the A/C manifold gauge set (R-1234yf or R-134a specific) and pull vacuum using an A/C vacuum pump (specialty).
• Evacuate for at least 30–45 minutes.
• Close the valves and verify it holds vacuum (no leak-down). If it won’t hold, fix leaks before charging.

Step 13: Recharge by weight (not by pressure)

• Charge with the exact refrigerant type on your under-hood label using a refrigerant charging scale (specialty).
• Add the exact factory charge weight shown on the label.

Step 14: Power up and verify operation

• Reconnect the battery negative using a 10mm socket.
• Start the engine and turn A/C on MAX.
• Check for leaks using a UV leak light (specialty) if dye is present, and confirm stable readings on the A/C manifold gauge set.

---

✅ After Repair

• Confirm cold air at the vents and that the compressor cycles normally.
• Recheck for oily residue at the compressor fittings after a short drive.
• If you had a contaminated failure, recheck cooling performance over the next few days—debris issues usually show up quickly.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor)

DIY Cost: $450-$1,400 (parts only, assuming you already have access to A/C service equipment)

You Save: $750-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
