🔧 Highlander - A/C Compressor Replacement

On your Highlander, the A/C compressor is the pump that circulates refrigerant and oil through the A/C system. Replacement is usually needed for internal failure (noise/seizure) or an internal leak, and it must be done with the refrigerant safely recovered and then the system vacuumed and recharged to spec.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air; have the system recovered with approved equipment.
• ⚠️ Refrigerant can cause frostbite and eye injury; wear gloves and safety glasses.
• ⚠️ Let the engine cool before working near the radiator/exhaust.
• ⚠️ Keep dirt/moisture out of A/C lines; cap/plug lines immediately after disconnecting.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor.
• ⚠️ Use only the refrigerant and compressor oil specified on the under-hood A/C label.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Breaker bar 1/2"
• Torque wrench 3/8" (10-80 Nm range)
• Torque wrench 1/2" (40-200 Nm range)
• Socket set 8mm-19mm
• Ratchet 3/8"
• Extension set 3/8"
• Wrench set 10mm-19mm
• Trim clip removal tool
• Flathead screwdriver
• Serpentine belt tool 14mm
• A/C line plug/cap kit (specialty)
• R-1234yf manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV dye leak detection light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• A/C compressor oil (ND-OIL 12 or per under-hood label) - Qty: 1
• Refrigerant (type and charge per under-hood label) - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have an A/C shop recover the refrigerant first if you don’t have a recovery machine.
• Open the hood and confirm the under-hood A/C label shows the refrigerant type and exact charge amount; you’ll need this for recharging.
• Disconnect the negative battery cable using a 10mm socket and move it aside so it can’t spring back.
• “O-ring” is a rubber seal that prevents leaks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the R-1234yf manifold gauge set (specialty) to the high and low service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• Verify both gauges show 0 psi before opening any A/C line connections.

Step 2: Raise the right-front and remove the wheel

• Use wheel chocks at the rear wheels.
• Lift the right-front using the floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the right-front wheel using a 21mm socket and breaker bar 1/2".

Step 3: Remove the right-front splash shield/fender liner section

• Remove plastic clips and screws using a trim clip removal tool and flathead screwdriver.
• Peel back/remove the liner section needed to access the compressor area.

Step 4: Remove the serpentine belt from the compressor

• Rotate the belt tensioner using the serpentine belt tool 14mm and slide the belt off the compressor pulley.
• If the belt is cracked/glazed, plan to replace it (recommended while you’re here).

Step 5: Disconnect the compressor electrical connector

• Press the lock tab and unplug the connector by hand; use a flathead screwdriver gently only if needed.
• Make sure the connector and harness stay clean and dry.

Step 6: Disconnect the refrigerant lines from the compressor

• Place a shop towel underneath to catch any residual oil.
• Remove the compressor line retaining bolt using a 10mm socket.
• Pull the line block straight off the compressor.
• Immediately cap the open lines and compressor ports using the A/C line plug/cap kit (specialty).

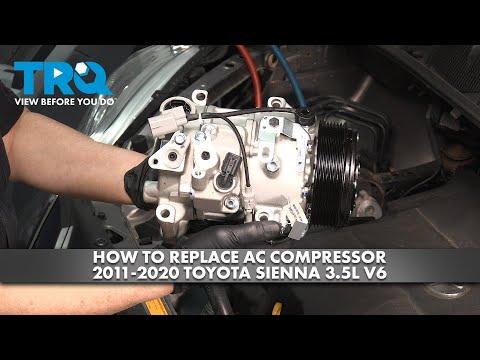

Step 7: Remove the A/C compressor

• Support the compressor by hand from underneath.
• Remove the compressor mounting bolts using a 14mm socket, ratchet 3/8", and extension set 3/8".
• Lower and remove the compressor through the wheel well opening.

Step 8: Prep the new compressor (oil + seals)

• Remove the caps from the new compressor only when ready to install.
• Drain and measure oil from the old compressor into a clean container (use the compressor ports). Add the same amount of fresh oil into the new compressor using A/C compressor oil (ND-OIL 12 or per under-hood label).
• Replace the line-block O-rings with the new ones from the A/C compressor manifold O-ring set.
• Lightly coat the new O-rings with clean A/C oil by hand. Dry O-rings can tear and leak.

Step 9: Install the new compressor

• Position the compressor and start the mounting bolts by hand to avoid cross-threading.
• Tighten compressor mounting bolts using a torque wrench 3/8" (10-80 Nm range): Torque to 25 Nm (18 ft-lbs).

Step 10: Reconnect the refrigerant line block

• Remove the caps/plugs and connect the line block straight onto the compressor (do not force).
• Install the retaining bolt using a 10mm socket, then use the torque wrench 3/8": Torque to 9.8 Nm (87 in-lbs).

Step 11: Reconnect electrical and reinstall belt/liners/wheel

• Plug in the compressor connector until it clicks (by hand).
• Reinstall the serpentine belt using the serpentine belt tool 14mm.
• Reinstall the fender liner/splash shield using the trim clip removal tool and flathead screwdriver.
• Reinstall the wheel using a 21mm socket; lower the vehicle and torque lug nuts with a torque wrench 1/2" (40-200 Nm range): Torque to 140 Nm (103 ft-lbs).

Step 12: Evacuate (vacuum) the A/C system

• Connect the R-1234yf manifold gauge set (specialty) and vacuum pump (specialty).
• Pull vacuum for at least 30 minutes, then close valves and verify it holds vacuum (no leak) for 10 minutes.
• If vacuum won’t hold, stop and fix the leak before charging.

Step 13: Recharge refrigerant by exact label amount

• Charge by weight using a refrigerant scale (specialty) (not “by pressure”).
• Add the exact refrigerant type and amount shown on the under-hood A/C label.
• After charging, use the UV dye leak detection light (specialty) to check the compressor/line connection for leaks if dye is present.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set A/C to MAX, blower HIGH, recirculation ON.
• Confirm cold vent air, stable idle, and no belt squeal or clicking from the compressor.
• Check for oily residue at the compressor line connection (a common leak clue).
• If cooling is weak or pressures look abnormal, stop and re-check charge amount and leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + recover/evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C equipment)

You Save: $300-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
