🔧 Camry - A/C Compressor Replacement

You’ll be removing the A/C compressor, swapping over the refrigerant oil and any brackets, and reinstalling it so the air conditioning can cool properly again. On this Camry, the compressor is driven by the serpentine belt and mounted low on the engine.

Difficulty Level: Advanced | Estimated Time: 4-6 hours (plus shop time for refrigerant work)

---

⚠️ Safety & Precautions

• ⚠️ Never vent A/C refrigerant to the air. It is illegal and dangerous. Have a licensed A/C shop recover the refrigerant before you start.
• ⚠️ Refrigerant can cause severe frostbite if it touches your skin or eyes. Always wear safety glasses and gloves when working around A/C lines.
• ⚠️ Let the engine cool completely before working near the serpentine belt and exhaust area.
• ⚠️ Always support the car with jack stands; never rely only on a floor jack.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor electrical connector.
• ⚠️ Keep fingers, tools, and clothing away from the belt and pulleys if the engine is running for checks later.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, pair)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive extension set
• 🛠️ Torque wrench (3/8" drive, 5-80 ft-lb range)
• 🛠️ Serpentine belt tool or long 14mm combination wrench
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Needle-nose pliers
• 🛠️ Pick tool set
• 🛠️ Drain pan (small, clean)
• 🛠️ Funnel (small)
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ OBD2 scan tool
• 🛠️ R-134a or R-1234yf manifold gauge set (specialty, depending on system)
• 🛠️ Vacuum pump (A/C service, specialty)
• 🛠️ Electronic refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor (new or remanufactured, with clutch) - Qty: 1
• 🔩 A/C compressor mounting bolt set - Qty: 1
• 🔩 A/C suction and discharge line O-ring set - Qty: 1
• 🔩 PAG A/C compressor oil (Toyota-spec viscosity) - Qty: 1 bottle
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 A/C system dye (optional) - Qty: 1
• 🔩 Brake cleaner spray - Qty: 1
• 🔩 Anti-seize compound - Qty: 1
• 🔩 Dielectric grease (for electrical connector) - Qty: 1
• 🔩 R-1234yf or R-134a refrigerant (correct for your Camry, by weight) - Qty: As specified by manufacturer

---

📋 Before You Begin

• 🧾 Confirm which refrigerant your Camry uses (most 2020 Toyota models use R-1234yf; check the under-hood sticker on the radiator support or underside of the hood).
• 🧾 Have a professional A/C shop recover the refrigerant from the system before you disconnect any A/C hoses.
• 🧾 Park the Camry on a flat, level surface, engage the parking brake, and place wheel chocks behind the rear wheels.
• 🧾 Open the hood and locate the battery; using a 10mm socket, disconnect the negative battery cable and move it aside.
• 🧾 Decide if you or a shop will do the vacuum and recharge step. As a first-time DIYer, it is strongly recommended to let a shop handle that part after you install the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely lift and support the front of the car

• Use the floor jack at the front center jacking point (behind the front bumper crossmember) to lift the front of your Camry.
• Place jack stands under the factory pinch welds on both sides. Lower the jack so the car rests securely on the stands.
• Keep wheel chocks at the rear wheels.
• Give the car a push test; it must not move.

Step 2: Remove lower engine splash shield

• Use a 10mm socket to remove the bolts holding the plastic splash shield under the engine.
• Use the trim clip removal tool for any plastic push clips.
• Lower the shield and set it aside.

Step 3: Remove the serpentine belt

• Note the belt routing or take a clear photo before removal.
• Place a serpentine belt tool or long 14mm wrench on the belt tensioner bolt.
• Rotate the tensioner to relieve tension, then slide the belt off the A/C compressor pulley first.
• Carefully release the tensioner and remove the belt from the other pulleys.

Step 4: Disconnect the A/C compressor electrical connector

• Locate the electrical connector on the A/C compressor (low on the front of the engine).
• Press the tab and pull the connector apart using your fingers or needle-nose pliers if needed.
• Inspect for corrosion and set the harness aside.

Step 5: Prepare to disconnect A/C lines (only after recovery)

• Confirm that the refrigerant has been professionally recovered.
• Place a drain pan under the compressor area to catch any remaining oil.
• Use a 12mm or 14mm socket (depending on bolt head size) to loosen but not yet fully remove the A/C suction and discharge line bolts at the compressor.

Step 6: Remove A/C lines from the compressor

• Finish removing the line bolts with the 12mm or 14mm socket.
• Gently wiggle and pull the lines away from the compressor. Use a flathead screwdriver carefully if needed to break the seal, but do not damage the sealing surfaces.
• Plug or cap the open lines with clean caps or tape to keep dirt and moisture out.
• Remove the old O-rings from the line ends using a pick tool.

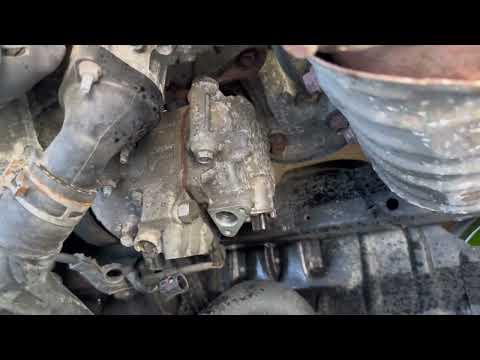

Step 7: Unbolt and remove the A/C compressor

• Locate the compressor mounting bolts (usually three or four) on the front of the engine block.
• Use a 14mm socket and ratchet to remove the mounting bolts.
• Support the compressor with one hand while removing the last bolt.
• Lower and remove the compressor from below the car, being careful not to spill oil on yourself.

Step 8: Drain and measure old compressor oil

• Hold the old compressor over a drain pan and rotate it through various positions to drain as much oil as possible.
• Pour the drained oil into a small measuring container (use a clean cup if needed) to see how much came out.
• This helps match the oil amount in the new compressor.

Step 9: Prepare the new compressor

• Check if your new compressor is shipped with oil. If it is, drain it the same way as the old one into a container to know how much is inside.
• Add fresh PAG oil (correct Toyota spec) so that the total amount in the new compressor matches what came out of the old one, unless a service bulletin or instructions say otherwise.
• Rotate the compressor clutch hub by hand a few turns to distribute oil inside.

Step 10: Install new O-rings on A/C lines

• Clean the sealing surfaces of the A/C lines with a rag and a little brake cleaner, then let them dry.
• Install new O-rings from the A/C line O-ring set on each line end.
• Lightly coat the O-rings with clean PAG oil using your finger.

Step 11: Install the new compressor

• Position the new compressor on the engine in the same orientation as the old one.
• Start all compressor mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug them evenly.
• Use a torque wrench with 14mm socket and tighten each mounting bolt to manufacturer specification (refer to service manual).
• Tighten bolts evenly to avoid twisting the housing.

Step 12: Reconnect A/C lines to the compressor

• Align the suction and discharge lines with the correct ports on the compressor.
• Install line bolts by hand first to avoid cross-threading.
• Use a 12mm or 14mm socket to snug the bolts.
• Use a torque wrench and tighten line bolts to manufacturer specification (refer to service manual).

Step 13: Reconnect compressor electrical connector

• Apply a tiny amount of dielectric grease inside the connector if available.
• Push the connector together until it clicks.

Step 14: Install new serpentine belt

• Route the new belt according to the belt routing diagram under the hood or your earlier photo.
• Use the serpentine belt tool or 14mm wrench to rotate the tensioner and slip the belt over the last pulley (usually an idler or the A/C compressor).
• Slowly release the tensioner to tension the belt.
• Visually confirm the belt is seated correctly in all pulley grooves.

Step 15: Reinstall lower splash shield

• Position the splash shield back under the engine.
• Install all bolts using a 10mm socket and all clips using the trim clip removal tool to push them in securely.

Step 16: Lower the car and reconnect the battery

• Use the floor jack to lift the car slightly off the jack stands.
• Remove the jack stands and lower the car fully to the ground.
• Under the hood, use a 10mm socket to reconnect the negative battery cable and tighten the nut to manufacturer specification (snug, not over-tight).

Step 17: Evacuate and recharge the A/C system (recommended at a shop)

• If you choose to do this yourself, connect the manifold gauge set to the high and low service ports and the vacuum pump to the center hose.
• Run the vacuum pump for at least 30 minutes to remove air and moisture, then close manifold valves and observe for 10–15 minutes to ensure there is no vacuum loss.
• Weigh the correct amount of refrigerant with an electronic refrigerant scale, and charge the system through the low side according to Toyota’s specified weight on the under-hood label.
• As a beginner, have a professional A/C shop do this step.

Step 18: Clear any stored codes

• Connect an OBD2 scan tool to the diagnostic port under the dash.
• Turn the ignition ON (engine off) and read any stored codes related to the A/C system or compressor clutch.
• Clear codes if present, then cycle the ignition OFF and ON again.

---

✅ After Repair

• 🧪 Start the engine and turn the A/C to MAX cold, fan on high, and recirculation ON.
• 🧪 Check that the A/C compressor engages and that cold air comes from the vents within a few minutes.
• 🧪 Inspect under the hood with the engine running: look for any oil or refrigerant leaks around the compressor and A/C line connections.
• 🧪 Listen for abnormal noises from the new compressor or belt; squeals may mean the belt is misrouted or loose.
• 🧪 After a short drive, recheck for any leaks and scan again for fault codes with the OBD2 scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,400 (parts + labor + recharge)

DIY Cost: $350-$650 (compressor, belt, O-rings, oil, plus A/C recharge fee)

You Save: $250-$800 by doing the mechanical work yourself and having a shop handle only the refrigerant.

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours plus A/C machine time.

---
