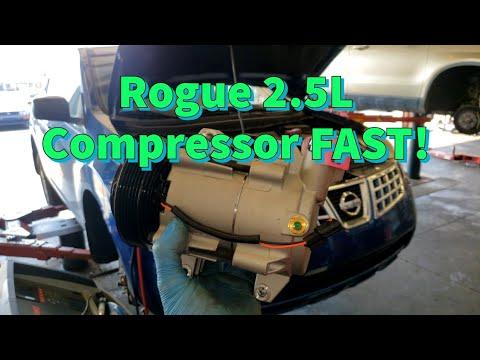

🔧 Rogue - A/C Compressor Replacement

You’ll be removing the A/C compressor from your Rogue, swapping it with a new unit, and then the system must be evacuated and recharged with the correct refrigerant and oil. This job is a bit advanced because it involves the refrigerant system and access from under the vehicle.

Difficulty Level: Advanced | Estimated Time: 4–6 hours (plus shop time for evac/recharge)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be professionally recovered with an A/C machine; venting to atmosphere is illegal and dangerous.
• ⚠️ Wear safety glasses and mechanic gloves to protect against sharp edges and possible refrigerant exposure.
• ⚠️ Disconnect the negative battery cable before unplugging compressor wiring.
• ⚠️ Support the Rogue securely with jack stands on solid, level ground if you raise it.
• ⚠️ Do not run the engine or A/C until the system is fully evacuated, vacuum-tested, and recharged to spec.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive extension set
• 🛠️ Torque wrench (3/8" drive, 5–80 ft-lb range)
• 🛠️ Serpentine belt tool or 3/8" breaker bar
• 🛠️ Flat trim clip remover
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ AC manifold gauge set (specialty)
• 🛠️ Refrigerant recovery/recharge machine (specialty)
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ Work light or LED inspection light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor (with clutch, for 2.5L) - Qty: 1
• 🔩 A/C compressor mounting bolts (optional new) - Qty: 4
• 🔩 A/C discharge/suction line O-ring set - Qty: 1 set
• 🔩 PAG refrigerant oil (type specified for your Rogue) - Qty: as required (typically 120 mL total system, confirm label)
• 🔩 R-134a refrigerant - Qty: approx. 0.52–0.55 kg (18–19 oz), confirm under-hood label
• 🔩 Serpentine drive belt (optional but recommended if worn) - Qty: 1
• 🔩 Plastic push clips for splash shield (if any break) - Qty: 6–10
• 🔩 Brake cleaner or AC-safe cleaner spray - Qty: 1

---

📋 Before You Begin

• Park the Rogue on level ground, engage the parking brake, and chock the rear wheels.
• Have a shop with an A/C machine recover the refrigerant completely before you open any A/C lines.
• After recovery, drive home if needed, then disconnect the negative battery terminal using a 10mm socket.
• Gather all tools and parts and make sure you have good lighting under the front of the vehicle.
• Identify the A/C compressor: it sits low on the passenger side of the engine, driven by the serpentine belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the Rogue

• Use the floor jack on the front center jacking point (behind the front bumper crossmember) to lift the front of the Rogue.
• Place jack stands under the reinforced pinch welds on both sides and slowly lower the vehicle onto them.
• Leave the floor jack lightly touching as a backup support and double-check stability by gently rocking the vehicle.

Step 2: Remove the lower engine splash shield

• Use a 10mm socket to remove the bolts securing the plastic splash shield under the engine.
• Use the flat trim clip remover or flathead screwdriver to pop out the plastic push clips.
• Lower the shield and set it aside where you can find it later.

Step 3: Release tension and remove the serpentine belt

• Locate the belt tensioner (spring-loaded pulley) on the front of the engine.
• Insert the serpentine belt tool or 3/8" breaker bar into the square drive or bolt head on the tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the A/C compressor pulley with your free hand.
• Slowly release tensioner back to rest. If removing the belt fully, note the routing or take a photo. Pictures avoid routing mistakes

Step 4: Disconnect the A/C compressor electrical connector

• Locate the electrical connector on top or side of the compressor.
• Press the locking tab with your finger or use needle-nose pliers gently, then pull the connector straight off.
• Move the harness aside so it won’t snag during removal.

Step 5: Disconnect A/C lines from the compressor

• Confirm again that the refrigerant has been professionally recovered.
• Use a 12mm socket to remove the bolt securing the refrigerant line manifold to the rear of the compressor.
• Gently wiggle and pull the manifold block straight off the compressor ports.
• Use shop rags to cover open lines and compressor ports to keep dirt out.
• Remove and discard the old O-rings from the line ends using needle-nose pliers.
• Torque spec on reassembly for line bolt: 10–12 Nm (89–106 in-lb)

Step 6: Remove the A/C compressor

• Use a 14mm socket and 3/8" ratchet to remove the four compressor mounting bolts (usually two upper, two lower).
• Support the compressor with one hand while removing the last bolt so it doesn’t drop.
• Lower the compressor carefully out through the bottom of the engine bay.
• Torque spec on reassembly for compressor bolts: 24–28 Nm (18–21 ft-lb)

Step 7: Prepare the new compressor

• Check the new compressor for shipping plugs in the ports and remove them.
• Drain the shipping oil into a clean container to measure how much is inside.
• Consult the compressor or under-hood label for the required total oil charge for your Rogue’s system.
• Add or remove PAG refrigerant oil to match the correct amount for a new compressor (typically a portion of total system oil). Follow compressor instructions
• Lightly coat new O-rings with fresh PAG oil so they seal smoothly.

Step 8: Install the new A/C compressor

• Position the new compressor in place from underneath.
• Start all four mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and ratchet to snug each bolt evenly.
• Use a torque wrench with a 14mm socket to tighten the bolts to 24–28 Nm (18–21 ft-lb) in a crisscross pattern.

Step 9: Reconnect A/C lines with new O-rings

• Install the new lubricated O-rings on the suction and discharge line ends.
• Align the line manifold with the compressor ports and push it straight on so it seats fully.
• Install the manifold retaining bolt by hand to avoid cross-threading.
• Use a 12mm socket and torque wrench to tighten the bolt to 10–12 Nm (89–106 in-lb).

Step 10: Reconnect the compressor electrical connector

• Plug the electrical connector back into the compressor until it clicks.
• Gently tug to confirm it is fully locked in place.

Step 11: Reinstall the serpentine belt

• Route the belt according to your photo or the routing diagram sticker in the engine bay.
• Use the serpentine belt tool or 3/8" breaker bar on the tensioner to rotate it and create slack.
• Slide the belt over the A/C compressor pulley last, then slowly release the tensioner.
• Check that the belt sits in the grooves of every pulley correctly. Mis-routed belts squeal or jump

Step 12: Reinstall the splash shield and lower the Rogue

• Lift the lower engine splash shield back into place.
• Install bolts with a 10mm socket and push in the plastic clips using the trim clip remover or by hand.
• Use the floor jack to raise the vehicle off the jack stands, remove the stands, and lower the Rogue fully to the ground.

Step 13: Evacuate and recharge the A/C system

• Reconnect the negative battery terminal with a 10mm socket.
• Connect the AC manifold gauge set to the low and high service ports under the hood.
• Use an A/C recovery/recharge machine to pull a deep vacuum (usually around 30 minutes) and check for leaks.
• If the vacuum holds, charge the system with the exact amount of R-134a refrigerant listed on the under-hood label (about 0.52–0.55 kg / 18–19 oz for most Rogues).
• Verify the correct amount of PAG oil has been added per service procedure.

---

✅ After Repair

• Start the engine and turn the A/C on MAX with blower on high and windows open.
• Verify the A/C clutch engages and disengages normally and there are no unusual noises from the compressor area.
• Check for cold air from the center vents after a few minutes; you should see vent temperatures well below ambient.
• Inspect all A/C line connections and the compressor area for any signs of oil or refrigerant leaks.
• Recheck the serpentine belt to ensure it tracks correctly and is quiet.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000–$1,400 (parts + labor + evac/recharge)

DIY Cost: $350–$550 (compressor, O-rings, oil, refrigerant, plus separate evac/recharge fee if a shop handles that)

You Save: $450–$800 by doing the mechanical work yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 3–4 hours.

---
