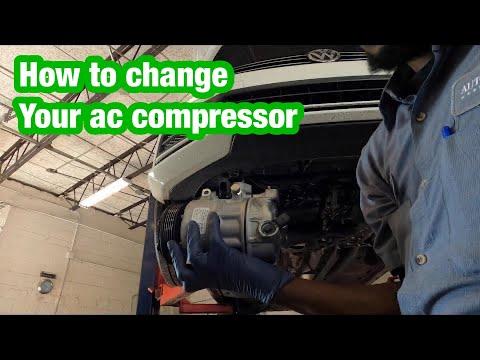

🔧 Jetta - A/C Compressor Replacement

Replacing the A/C compressor on your Jetta means safely recovering the refrigerant, swapping the compressor and seals, then vacuuming and recharging the system by weight. This job matters because opening the A/C system introduces moisture/air, which can damage the new compressor if it isn’t evacuated and recharged correctly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air; it must be recovered with proper equipment.
• ⚠️ Refrigerant can cause frostbite; wear gloves and safety glasses.
• ⚠️ Your Jetta typically uses R-1234yf, which is mildly flammable; keep sparks/flames away.
• ⚠️ Support the car on jack stands; never work under a car held only by a jack.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 10mm socket
• 13mm socket
• 16mm socket
• Ratchet
• 6-inch extension
• Torx T25 driver
• Torx T30 driver
• Flat trim tool
• Torque wrench (5-60 Nm range)
• Serpentine belt tool (16mm)
• A/C line plug kit (specialty)
• O-ring pick set
• R-1234yf manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring seal set - Qty: 1
• R-1234yf refrigerant - Qty: As specified on under-hood label
• PAG oil (R-1234yf compatible) - Qty: As needed to match removed oil
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have a shop recover the refrigerant first if you don’t have a recovery machine; the system must be empty before any lines are opened.
• Let the engine cool fully so you’re not working around hot components.
• Disconnect the battery negative terminal using a 10mm socket.
• Locate the under-hood A/C label and note the refrigerant type and charge amount; you’ll recharge by weight later. Charging by “pressure only” is inaccurate.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the R-1234yf manifold gauge set (specialty) to the high and low service ports.
• Use a refrigerant recovery machine (specialty) to fully recover the refrigerant.
• Verify both gauges read 0 psi after recovery before you open any fittings.

Step 2: Raise the front of the car and remove the lower cover

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine cover/splash shield fasteners using a Torx T25 driver and Torx T30 driver, then set the cover aside.

Step 3: Remove the serpentine belt from the A/C compressor

• Rotate the belt tensioner using a serpentine belt tool (16mm) to relieve tension.
• Slip the belt off the A/C compressor pulley first, then release the tensioner slowly.
• If the belt shows cracks/glazing, replace it now. Old belts can squeal after reassembly.

Step 4: Disconnect the compressor electrical connector

• Press the lock tab and unplug the connector at the compressor using a flat trim tool if needed.

Step 5: Remove the A/C lines from the compressor

• Place rags under the compressor to catch any oil residue.
• Remove the A/C line retaining bolt(s) using a 13mm socket.
• Gently wiggle and pull the line block straight off the compressor.
• Immediately cap/plug the open lines using an A/C line plug kit (specialty) to keep moisture out.
• Remove old O-rings using an O-ring pick set.
• Install new O-rings and lubricate them with a light film of PAG oil (R-1234yf compatible).
• When reinstalling later, Torque the A/C line retaining bolt(s) to 9 Nm (80 in-lbs).

Step 6: Remove the A/C compressor

• Support the compressor with one hand as you remove bolts.
• Remove the compressor mounting bolts using a 13mm socket and ratchet.
• Lower the compressor out carefully from underneath.
• When reinstalling later, Torque the A/C compressor mounting bolts to 25 Nm (18 ft-lbs).

Step 7: Set the oil amount for the new compressor

• Drain the old compressor oil into a clean measuring container and note how much comes out.
• Add the same amount of PAG oil (R-1234yf compatible) into the new compressor (unless the new compressor instructions specify a prefill amount to adjust).
• Rotate the compressor hub/pulley by hand a few turns to distribute oil evenly.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a torque wrench (5-60 Nm range): Torque to 25 Nm (18 ft-lbs).
• Reconnect the electrical connector until it clicks.

Step 9: Reconnect the A/C lines with new seals

• Remove the caps/plugs, then install the line block squarely onto the compressor.
• Install the retaining bolt(s) with a 13mm socket.
• Tighten with a torque wrench (5-60 Nm range): Torque to 9 Nm (80 in-lbs).

Step 10: Reinstall the belt and lower cover

• Route the belt correctly and rotate the tensioner using the serpentine belt tool (16mm).
• Slip the belt onto the A/C compressor pulley last, then release the tensioner slowly.
• Reinstall the lower engine cover using a Torx T25 driver and Torx T30 driver.

Step 11: Evacuate the system and recharge by weight

• Reconnect the battery negative terminal using a 10mm socket.
• Connect the R-1234yf manifold gauge set (specialty) and run the vacuum pump (specialty) for 30–45 minutes.
• Close valves, shut off the pump, and hold vacuum for 10 minutes to check for leaks (vacuum should not rise).
• Recharge using a refrigerant scale (specialty) to the exact amount listed on the under-hood A/C label.

---

✅ After Repair

• Start the engine and set A/C to MAX; confirm the compressor engages and the center vents blow cold.
• Check for abnormal belt noise and verify the belt tracks straight on all pulleys.
• Inspect the compressor line connection area for oil residue or signs of leakage.
• If cooling is weak or pressures are abnormal, stop and recheck charge amount and for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
