🔧 Ranger - A/C Compressor Replacement

Replacing the A/C compressor on your Ranger means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then evacuating and recharging the system. The biggest “must-do” is proper refrigerant recovery and a deep vacuum before recharge to prevent damage and leaks.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous and must be recovered with approved equipment; do not vent to air.
• ⚠️ Keep hands/tools clear of the belt drive; never work near moving pulleys.
• ⚠️ Wear gloves and safety glasses; refrigerant/oil can frost-burn skin and eyes.
• ⚠️ Support the truck securely on jack stands if you raise it.
• Disconnect the negative battery cable if you’ll unplug the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-15mm)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Pick set
• Line/crowfoot wrench set (metric) (specialty)
• A/C manifold gauge set (R-134a) (specialty)
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV dye leak flashlight (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct for Ranger) - Qty: 1
• A/C compressor O-ring seal set - Qty: 1
• Receiver drier / desiccant bag (if serviced separately) - Qty: 1
• Refrigerant (R-134a) - Qty: 1 full system charge (by weight)
• PAG A/C oil (correct viscosity for Ranger) - Qty: as required
• Serpentine belt (optional if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Plan for refrigerant recovery: the system must be empty before any lines are opened.
• If the old compressor failed loudly or “grenaded,” plan to replace the condenser and flush lines (metal debris can destroy the new compressor quickly).
• If you raise the front, lift with a floor jack and support with jack stands under the frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the refrigerant is professionally recovered

• Use an A/C recovery machine (specialty) to recover refrigerant from the system.
• If you don’t have recovery equipment, stop here and have a shop recover the refrigerant first.

Step 2: Disconnect the battery

• Use a 10mm socket and 3/8" drive ratchet to disconnect the negative battery cable.

Step 3: Remove shields/air ducting for access (as equipped)

• Use a trim clip removal tool to remove any lower splash shield clips.
• Use a metric socket set (8mm-10mm) with a 3/8" drive ratchet to remove any shield bolts.

Step 4: Release the serpentine belt from the A/C compressor pulley

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a photo of belt routing first.

Step 5: Unplug the compressor electrical connector

• Release the connector lock and unplug it by hand.
• If the lock is stubborn, use a pick set gently to lift the tab (don’t break it).

Step 6: Disconnect the refrigerant line manifold from the compressor

• Use a line/crowfoot wrench set (metric) (specialty) or metric socket set to remove the line/manifold retaining fastener(s).
• Carefully pull the line block straight off the compressor.
• Remove old O-rings with a pick set.
• Cap or cover open lines to keep dirt/moisture out.

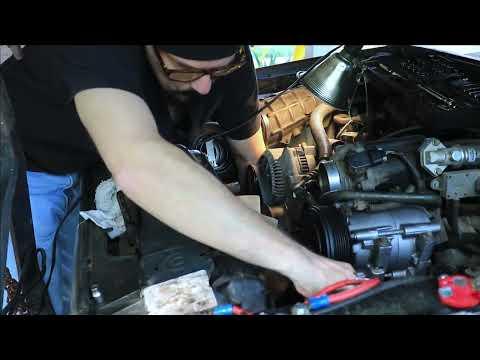

Step 7: Remove the A/C compressor mounting bolts and compressor

• Support the compressor with one hand.
• Use a metric socket set and 3/8" drive ratchet to remove the compressor mounting bolts.
• Lower and remove the compressor from the engine bay.

Step 8: Prepare the new compressor (oil and seals)

• Install new O-rings from the A/C compressor O-ring seal set.
• Lightly lubricate O-rings with PAG A/C oil before assembly.
• If the new compressor is not pre-filled correctly, add the correct amount of PAG A/C oil for your Ranger’s system per the underhood A/C label/service information.

Step 9: Install the new compressor

• Position the compressor and start mounting bolts by hand.
• Use a 3/8" drive torque wrench (10-100 Nm range) and the correct metric socket to tighten mounting bolts to Torque to Ford specification for your Ranger.

Step 10: Reconnect the refrigerant line manifold

• Align the line block squarely and push it in evenly (don’t pinch O-rings).
• Use a 3/8" drive torque wrench with the correct metric socket or line/crowfoot wrench set (metric) (specialty) to tighten to Torque to Ford specification for your Ranger.

Step 11: Reconnect electrical connector and reinstall belt

• Plug in the compressor connector until it clicks.
• Use a serpentine belt tool (specialty) to rotate the tensioner and route the belt back onto the A/C compressor pulley.

Step 12: Reinstall shields/ducting

• Use a metric socket set and 3/8" drive ratchet to reinstall bolts.
• Reinstall clips using the trim clip removal tool as needed.

Step 13: Evacuate the system (deep vacuum)

• Connect the A/C manifold gauge set (R-134a) (specialty) to the high and low service ports.
• Connect the center hose to the vacuum pump (A/C) (specialty).
• Pull vacuum and hold it to confirm no leaks (a steady vacuum indicates the system is sealed).

Step 14: Recharge by weight

• Use a refrigerant scale (specialty) and charge the exact amount listed on the underhood A/C label (do not “charge by pressure”).
• Use the A/C manifold gauge set (R-134a) (specialty) to monitor pressures during charging.

Step 15: Reconnect battery and function check

• Use a 10mm socket and 3/8" drive ratchet to reconnect the negative battery cable.
• Start the engine and set A/C to MAX and recirculation.
• Confirm the compressor engages and vent temperature drops.

---

✅ After Repair

• Check for leaks at the compressor manifold connection (oil “wetness” is a clue).
• If performance is weak, verify the charge amount by weight again.
• If the compressor failed with debris, watch for repeat noise/poor cooling; you may need condenser replacement and a full system flush.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
