🔧 Escape - A/C Compressor Replacement

You’ll be removing the A/C compressor from your Escape and installing a new one, then having the system properly evacuated, vacuumed, and recharged. This restores cold air when the compressor has failed, is noisy, or is leaking.

Difficulty Level: Advanced | Estimated Time: 4-6 hours (plus shop time for evacuate/recharge)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be evacuated with certified A/C equipment before you disconnect any A/C lines. Venting refrigerant to the atmosphere is illegal and dangerous (frostbite, eye damage, breathing issues).
• ⚠️ Have a local A/C or general repair shop in Los Angeles recover the refrigerant before you start and vacuum/recharge the system after you finish.
• ⚠️ Always support the vehicle with jack stands. Never rely only on a floor jack.
• ⚠️ Let the engine cool fully to avoid burns from hot engine parts.
• ⚠️ Disconnect the negative battery cable whenever working near the alternator, starter, or compressor wiring.
• ⚠️ Wear safety glasses and mechanic gloves to protect your eyes and hands from metal edges and dirt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 1/4" drive ratchet
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5-80 ft-lbs range)
• 🛠️ 1/2" drive torque wrench (30-150 ft-lbs range)
• 🛠️ Metric socket set (1/4" and 3/8" drive, 8mm-19mm)
• 🛠️ Metric combination wrench set (8mm-19mm)
• 🛠️ E-torx socket set (if needed for splash shields)
• 🛠️ Torx bit set (T20-T40)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Serpentine belt tool or 3/8" breaker bar
• 🛠️ Pry bar (small)
• 🛠️ Line wrench set (10mm-14mm)
• 🛠️ Needle-nose pliers
• 🛠️ Shop light or LED work light
• 🛠️ Catch pan
• 🛠️ Fender cover
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ OBD2 scan tool (basic)
• 🛠️ Manifold gauge set (A/C) (specialty, optional for checking after service)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor (with clutch, for 2.0L EcoBoost) - Qty: 1
• 🔩 A/C compressor mounting bolts (single-use if specified) - Qty: 4
• 🔩 A/C compressor manifold O-rings (suction and discharge) - Qty: 2
• 🔩 PAG refrigerant oil (Ford-spec for your Escape) - Qty: as specified by compressor manufacturer
• 🔩 Serpentine drive belt - Qty: 1 (recommended while you’re in there)
• 🔩 Plastic push clips / splash shield retainers - Qty: assorted (to replace any that break)
• 🔩 R-1234yf refrigerant - Qty: as specified under-hood label (shop will usually supply)
• 🔩 A/C system dye or leak detector additive - Qty: as needed (shop usually supplies)

---

📋 Before You Begin

• Park your Escape on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Call a local A/C shop and have them recover the refrigerant from your A/C system before you disconnect any A/C lines.
• Open the hood and note the A/C system charge info on the under-hood sticker (this shows the correct R-1234yf amount and oil type).
• Turn ignition OFF, remove the key or turn off the start button, and disconnect the negative battery cable using a 10mm socket.
• Gather all tools and parts and keep bolts in labeled containers as you remove them. Labeling saves huge headaches later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely lift and support the front of the vehicle

• Use the floor jack to lift the front of your Escape at the front crossmember or approved jacking point (see owner’s manual).
• Place jack stands under the pinch welds or frame points on both sides and slowly lower the vehicle onto them.
• Verify the Escape is solidly supported by gently rocking it. If it moves, reposition stands.

Step 2: Remove the engine undershield / splash shield

• Use a flathead screwdriver or trim clip removal tool to remove the plastic push clips holding the front splash shield.
• Use the appropriate Torx bit (often T25/T30) or metric socket (8mm-10mm) to remove any screws.
• Lower the splash shield and set it aside, keeping clips and screws together.

Step 3: Remove the serpentine belt

• From the front, locate the belt routing diagram under the hood or take a clear photo.
• Use a serpentine belt tool or 3/8" breaker bar in the belt tensioner square hole and rotate the tensioner to relieve tension.
• While holding the tensioner, slip the belt off the A/C compressor pulley, then slowly release the tensioner.
• Remove the belt from all pulleys and inspect it; replace with the new belt later.

Step 4: Disconnect A/C compressor electrical connector

• Locate the electrical connector on the A/C compressor body from below.
• Use your fingers or needle-nose pliers to gently depress the locking tab on the connector.
• Pull the connector straight off the compressor; avoid pulling on the wires.

Step 5: Disconnect A/C lines from compressor (after refrigerant recovery)

• Confirm the A/C system has been evacuated by your shop. The system should be at or near 0 psi.
• Locate the A/C line manifold on the back or top of the compressor (two lines attached with a plate and bolts).
• Use a line wrench or metric socket (usually 10mm-13mm) to remove the bolts securing the line manifold to the compressor.
• Gently wiggle and pull the line block away from the compressor. Do not bend the lines sharply.
• Immediately cover the open line ends and compressor ports with clean caps or tape to keep dirt out.

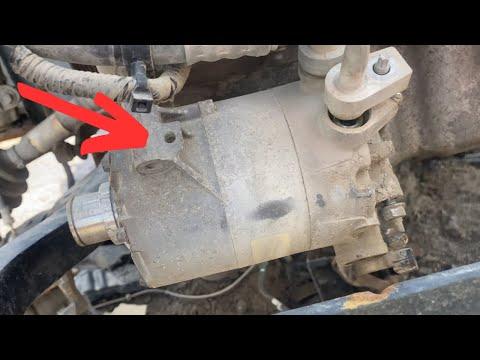

Step 6: Remove the A/C compressor mounting bolts

• Identify the A/C compressor mounting bolts (typically three or four) attaching it to the engine block or bracket.
• Use a 3/8" ratchet with the correct metric socket (commonly 13mm-15mm) to loosen and remove the bolts.
• Support the compressor with one hand as you remove the last bolt so it doesn’t drop.
• Carefully lower the old compressor out of the engine bay from below.

Step 7: Prepare the new compressor

• Compare the new compressor to the old one to ensure the mounting points, pulley, ports, and connector all match.
• Check the new compressor’s included instructions for PAG oil quantity and whether oil is pre-filled.
• If required, add the correct amount of PAG oil to the new compressor using the supplied ports, following the compressor’s instructions.
• Install new O-rings on the A/C line manifold, lightly coating them with clean PAG oil for a good seal.

Step 8: Install the new A/C compressor

• Position the new compressor in place from below, aligning it with the mounting holes.
• Start all compressor mounting bolts by hand using your fingers to avoid cross-threading.
• Use a 3/8" ratchet and correct metric socket to snug the bolts evenly in a crisscross pattern.
• Use your 3/8" torque wrench to tighten the compressor mounting bolts to manufacturer specification (refer to Ford service data).

Step 9: Reattach A/C lines to the compressor

• Remove any temporary caps from the compressor ports and A/C line manifold.
• Carefully position the line manifold against the compressor ports, making sure the O-rings stay seated.
• Install the manifold bolts by hand to avoid cross-threading.
• Use a metric socket or line wrench to snug the bolts evenly.
• Use your 3/8" torque wrench to tighten the manifold bolts to manufacturer specification (do not overtighten).

Step 10: Reconnect the compressor electrical connector

• Push the electrical connector onto the new compressor’s plug until it clicks.
• Gently tug the connector to confirm it is locked in place.

Step 11: Install the new serpentine belt

• Route the new belt around the pulleys following the belt routing diagram or your photo.
• Leave the belt off the easiest-access pulley (often the alternator or idler) for last.
• Use the serpentine belt tool or 3/8" breaker bar to rotate the tensioner and slip the belt fully onto the final pulley.
• Slowly release the tensioner and check that the belt is seated in all pulley grooves.

Step 12: Reinstall the splash shield

• Lift the splash shield back into position under the engine.
• Install the screws using the correct Torx bit or metric socket and snug them.
• Install the plastic push clips using your trim clip removal tool or fingers, replacing any broken clips.

Step 13: Lower the vehicle and reconnect the battery

• Use the floor jack to raise the vehicle slightly and remove the jack stands.
• Lower the Escape fully to the ground.
• Use a 10mm socket to reconnect the negative battery cable to the battery terminal and tighten the clamp to manufacturer specification (snug, not crushing).

Step 14: Have the A/C system vacuumed and recharged

• Drive to the A/C shop that recovered your refrigerant, or another qualified shop, and tell them you replaced the compressor.
• Ask them to perform a vacuum leak test, then recharge the system with R-1234yf and the correct amount of oil and dye as per the under-hood label and Ford specs.
• Request that they clear any A/C-related fault codes with a scan tool if present.

---

✅ After Repair

• Start the engine and turn the A/C on MAX cold with the blower on high and recirculation ON.
• Let the system run for 5-10 minutes and verify that the air from the center vents is cold and steady.
• Listen for any unusual noises like grinding or squealing from the compressor or belt area.
• Check under the hood for any signs of oil or refrigerant dye leaks at the compressor connections.
• Use an OBD2 scan tool to check for and clear any related trouble codes.
• Over the next few days, monitor A/C performance and look for any oil/dye spots under the vehicle.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200 - $1,700 (parts + labor, including evac/recharge)

DIY Cost: $350 - $650 (compressor, belt, O-rings, plus $150-$250 for professional evac/recharge)

You Save: $550 - $1,050 by doing the mechanical work yourself!

Shop labor rates in Los Angeles typically run $130-$180/hour. This repair takes a shop approximately 3-4 hours plus A/C machine time.

---
