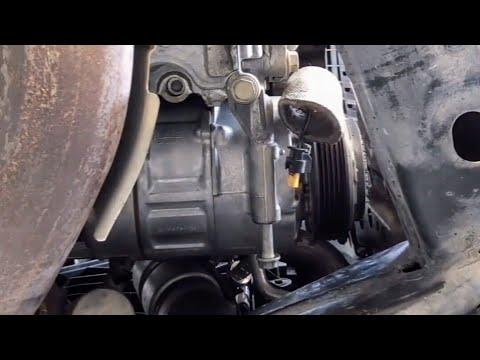

🔧 Traverse - A/C Compressor Replacement

Replacing the A/C compressor on your Traverse is a bigger job because the refrigerant must be safely recovered, the system opened up, and then the system must be vacuum-tested and recharged. Most “repeat failures” happen when debris/contamination isn’t addressed, so we’ll also cover the key checks that prevent the new compressor from dying early.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment—do not vent to air.
• ⚠️ R-1234yf systems are mildly flammable; keep sparks/flames away.
• ⚠️ Wear eye protection—refrigerant/oil can cause severe frostbite.
• ⚠️ Support your Traverse on jack stands; never rely on a jack alone.
• 🔋 Disconnect the negative battery cable before unplugging the compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set 8mm-18mm
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-100 Nm range)
• Serpentine belt tool 3/8" drive
• Trim clip remover
• Flathead screwdriver
• Line/cap plug kit for A/C hoses
• Manifold gauge set for R-1234yf (specialty)
• R-1234yf recovery/recycling machine (specialty)
• Vacuum pump (specialty)
• Electronic refrigerant scale (specialty)
• UV leak light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• R-1234yf refrigerant - Qty: Per underhood label
• A/C compressor oil (PAG oil for R-1234yf) - Qty: As required
• Serpentine belt - Qty: 1 Optional if belt is worn
• A/C suction/discharge line sealing washers/O-rings - Qty: As required

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the A/C refrigerant professionally recovered first if you don’t have recovery equipment.
• Disconnect the negative battery cable using a 10mm socket.
• Confirm the refrigerant type and factory charge amount on the underhood A/C label (your Traverse uses R-1234yf).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect an R-1234yf manifold gauge set (specialty) (a gauge set reads system pressures) to the high/low service ports.
• Use an R-1234yf recovery/recycling machine (specialty) to fully recover refrigerant from the system.
• Verify the system holds at 0 pressure before opening any lines.

Step 2: Raise the front and remove the right-front wheel (common access route)

• Use a floor jack (rated 3-ton minimum) to lift the front-right jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Remove the right-front wheel using your metric socket set 8mm-18mm and breaker bar (lug size varies by wheel).

Step 3: Remove the right-front splash shield/liner section

• Remove push-pins/clips with a trim clip remover.
• Remove any screws with a flathead screwdriver or the correct socket from your metric socket set 8mm-18mm.
• Move the liner aside to access the compressor area.

Step 4: Remove the serpentine belt from the A/C compressor

• Rotate the belt tensioner using a serpentine belt tool 3/8" drive and 3/8" drive ratchet.
• Slip the belt off the A/C compressor pulley only, then slowly release the tensioner.
• Tip: Take a belt routing photo first.

Step 5: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab using a flathead screwdriver.
• Inspect the connector for oil saturation or heat damage.

Step 6: Remove the A/C line manifold from the compressor

• Place shop towels under the connection area.
• Remove the line/manifold retaining bolt(s) using the appropriate socket from your metric socket set 8mm-18mm.
• Carefully pull the manifold straight out; do not pry hard on the aluminum lines.
• Immediately cap/plug the open lines and compressor ports using a line/cap plug kit for A/C hoses.
• Remove and discard old O-rings; you will install new ones.

Step 7: Unbolt and remove the A/C compressor

• Support the compressor with one hand.
• Remove compressor mounting bolts using a metric socket set 8mm-18mm and 3/8" drive ratchet.
• Remove the compressor from below through the wheel-well opening.

Step 8: Prepare the new compressor (oil balancing)

• Drain the old compressor oil into a clean measuring container.
• Drain shipping oil from the new compressor into a measuring container.
• Add the correct amount of A/C compressor oil (PAG oil for R-1234yf) to the new compressor so the total system oil stays correct.
• Tip: Too much oil reduces cooling.

Step 9: Install the new compressor

• Position the compressor and start mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts using a torque wrench (10-100 Nm range).
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts.

Step 10: Install new O-rings and reconnect the A/C line manifold

• Install new O-rings from the A/C compressor manifold O-ring set.
• Lightly coat O-rings with clean PAG oil for R-1234yf before assembly.
• Push the manifold in straight, then install the retaining bolt(s) with the correct socket from your metric socket set 8mm-18mm.
• Tighten using a torque wrench (10-100 Nm range).
• Torque to 18 Nm (13 ft-lbs) for the A/C line/manifold bolt.

Step 11: Reinstall belt, liner, and wheel

• Route the belt and rotate the tensioner using the serpentine belt tool 3/8" drive, then slip the belt onto the compressor pulley.
• Reinstall the splash shield/liner using the trim clip remover and tools from your metric socket set 8mm-18mm.
• Reinstall the wheel and snug lug nuts using your metric socket set 8mm-18mm.
• Lower the vehicle from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts with a torque wrench (10-100 Nm range): Torque to 190 Nm (140 ft-lbs).

Step 12: Evacuate (vacuum) the system and recharge by weight

• Reconnect the R-1234yf manifold gauge set (specialty).
• Pull vacuum using a vacuum pump (specialty) for at least 30 minutes.
• Close valves and verify it holds vacuum (leak check). If it won’t hold, stop and find the leak.
• Recharge with R-1234yf refrigerant using an electronic refrigerant scale (specialty), charging the exact amount shown on the underhood A/C label.

Step 13: Reconnect battery and function test

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and turn A/C to MAX.
• Confirm compressor engagement and stable vent temperature.
• Check for leaks at the manifold connection using a UV leak light (specialty) if dye is present.

---

✅ After Repair

• Verify no abnormal noises (grinding/squeal) from the compressor or belt.
• Confirm both low-side and high-side pressures look normal on the R-1234yf manifold gauge set (specialty).
• Recheck for oil/refrigerant leaks after a short drive.
• If cooling is still weak, the system may have contamination or a restriction (common causes: condenser debris, orifice tube/expansion device issues).

---
