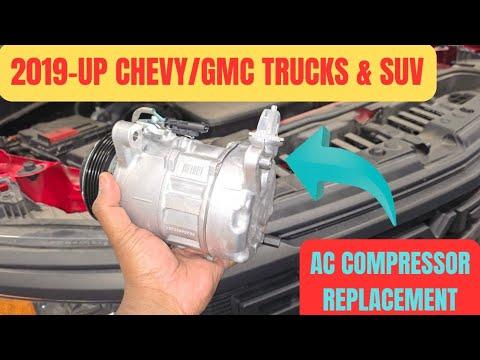

🔧 AC Compressor - Replacement

The compressor is the heart of the A/C system. On your Sierra, replacing it means recovering the refrigerant first, removing the belt-driven compressor, installing the new unit with fresh seals and the correct oil, then evacuating and recharging the system.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant professionally recovered before opening the system. Refrigerant can cause severe frostbite and eye injury.
• The A/C system is high-pressure. Never loosen lines until the system is fully evacuated.
• Wear safety glasses and gloves the entire time.
• Keep dirt out of the open A/C lines. Contamination can ruin the new compressor fast.
• If the old compressor failed internally, the system may also need the condenser, orifice tube, and accumulator/drier replaced.
• Disconnect the negative battery cable before removing the compressor or working near the belt drive.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set 7mm-15mm
• Metric wrench set 7mm-15mm
• 1/2-inch drive ratchet
• Torque wrench
• Serpentine belt tool
• Line wrench set
• Trim clip removal tool
• Drain pan
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• A/C manifold gauge set (specialty)
• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch seal kit - Qty: 1
• A/C compressor oil - Qty: 1 bottle
• Serpentine belt - Qty: 1
• Liquid line O-rings - Qty: 1 set
• Accumulator/drier - Qty: 1
• Orifice tube - Qty: 1
• Refrigerant - Qty: 1 system charge

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine and exhaust cool fully.
• Disconnect the negative battery cable before starting.
• Recover the refrigerant with approved equipment before opening any A/C line.
• Have the exact oil type and refrigerant type ready for your system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use a refrigerant recovery machine to evacuate the A/C system completely.
• Do not loosen any A/C line until the system is fully empty.
• Never vent refrigerant.

Step 2: Disconnect the battery

• Use a 10mm wrench to remove the negative battery cable.
• Isolate the cable so it cannot touch the terminal.

Step 3: Remove the intake duct and any access covers

• Use a 7mm socket or 8mm socket to remove intake duct clamps and related fasteners.
• Remove any upper covers blocking access to the compressor area.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool to rotate the tensioner and relieve belt tension.
• Slip the belt off the compressor pulley and remove it from the engine bay.
• Take a belt routing photo first.

Step 5: Disconnect the A/C lines from the compressor

• Use the correct line wrench or socket to remove the refrigerant line fasteners at the compressor.
• Cap or tape the open lines right away to keep out dirt and moisture.
• Replace the O-rings on reassembly.

Step 6: Remove the compressor mounting bolts

• Use the correct metric socket and ratchet to remove the compressor bolts.
• Support the compressor with one hand as the last bolt comes out.
• Remove the compressor from below or through the wheelhouse opening, depending on access.

Step 7: Prepare the new compressor

• Use a measuring cup to drain and measure the old oil from the removed compressor if it still holds oil.
• Add the correct amount and type of A/C oil to the new compressor.
• Install new O-rings lubricated with clean A/C oil.

Step 8: Install the new compressor

• Position the compressor in place by hand.
• Use the metric socket and torque wrench to tighten the mounting bolts to OEM specification.
• Reconnect the A/C lines and tighten the fasteners to OEM specification.
• Start all bolts by hand first.

Step 9: Reinstall the belt and removed parts

• Use the serpentine belt tool to route and tension the belt.
• Reinstall the intake duct and any covers using the 7mm socket or 8mm socket.
• Reconnect the negative battery cable with a 10mm wrench.

Step 10: Evacuate and recharge the system

• Use a vacuum pump and A/C manifold gauge set to pull a deep vacuum.
• Hold vacuum and verify there are no leaks.
• Recharge the system with the correct refrigerant charge and oil balance for your Sierra.

---

✅ After Repair

• Start the engine and turn the A/C on max.
• Check that the compressor engages and both A/C lines change temperature.
• Inspect for leaks at the compressor connections.
• Listen for belt noise or pulley wobble.
• If cooling is poor, recheck charge level and verify the condenser fan operation.

---

💰 DIY vs Shop Cost

Shop Cost: $1,050-$1,750 (parts + labor)

DIY Cost: $350-$850 (parts only)

You Save: $700-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
