🔧 Corolla - A/C Compressor Replacement

You’ll be removing the old A/C compressor from your Corolla, swapping over any needed parts, and installing a new unit with fresh seals and correct oil. The critical parts are handling the refrigerant safely, keeping dirt out of the system, and setting belt tension correctly.

Difficulty Level: Advanced | Estimated Time: 4–6 hours (plus shop time for evac/recharge)

---

⚠️ Safety & Precautions

• ⚠️ Never vent A/C refrigerant to the air. It must be removed with a proper recovery machine at a shop.
• ⚠️ Refrigerant can cause severe frostbite and eye injury. Always wear safety glasses and gloves.
• ⚠️ Disconnect the negative battery cable before working near the compressor and belt.
• ⚠️ Support the car with jack stands if you raise it. Never rely only on a jack.
• ⚠️ Keep the A/C system open (lines disconnected) for as little time as possible to avoid moisture entering.
• ⚠️ Work on a completely cool engine to avoid burns from hot parts.
• Vehicle-specific: the compressor is low on the engine, so you’ll be working from underneath; secure the front end safely.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔧 Floor jack (rated 3-ton minimum)
• 🔧 Jack stands (rated 3-ton minimum, set of 2)
• 🔧 Wheel chocks
• 🔧 10mm socket
• 🔧 12mm socket
• 🔧 14mm socket
• 🔧 3/8" drive ratchet
• 🔧 3/8" drive torque wrench (5–80 ft-lbs range)
• 🔧 Serpentine belt tool or long-handled 14mm wrench
• 🔧 Flathead screwdriver (medium)
• 🔧 Trim clip removal tool
• 🔧 Pick tool set
• 🔧 Line or flare nut wrench set (10–14mm)
• 🔧 A/C manifold gauge set (R-1234yf or R-134a, to match car)
• 🔧 Vacuum pump for A/C systems (specialty)
• 🔧 A/C refrigerant recovery machine (specialty)
• 🔧 Clean drain pan
• 🔧 Shop rags
• 🔧 Nitrile gloves
• 🔧 Safety glasses
• 🔧 OBD2 scan tool (basic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor with clutch (new or reman, Corolla 2.0L) - Qty: 1
• 🔩 A/C compressor mounting bolt set (if not reusing) - Qty: 1 set
• 🔩 A/C O-ring kit (suction and discharge line seals, compressor-specific) - Qty: 1 kit
• 🔩 Compressor oil (Toyota-specified type and quantity for your compressor) - Qty: as specified
• 🔩 Refrigerant (type and charge per under-hood label) - Qty: as specified
• 🔩 Serpentine drive belt - Qty: 1 (recommended while you are in there)
• 🔩 Front splash shield clips / push clips - Qty: as needed
• 🔩 A/C system dye or UV dye (optional, if checking for leaks) - Qty: 1
• 🔩 A/C condenser with integrated receiver/drier - Qty: 1 (recommended if the system was heavily contaminated or compressor failed internally)

---

📋 Before You Begin

• Park the Corolla on level ground, set the parking brake, and chock the rear wheels.
• Confirm the refrigerant type and charge amount from the sticker under the hood.
• Have a licensed A/C shop recover all refrigerant from the system before you disconnect any A/C lines.
• After recovery and with engine off, disconnect the negative battery terminal using a 10mm socket.
• Gather all tools and parts so the system is open to air for as short a time as possible.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the car

• Use the floor jack to lift the front of the Corolla at the front jacking point shown in the owner’s manual.
• Place jack stands under the front pinch welds or frame points, then gently lower the car onto them.
• Leave the floor jack touching but not lifting as a backup.
• Always shake the car slightly to confirm it is stable.

Step 2: Remove the lower engine splash shield

• Use a trim clip removal tool to pop out plastic clips along the front and sides of the splash shield.
• Use a 10mm socket to remove any small bolts holding the shield.
• Lower the shield and set it aside; keep track of clips and bolts.

Step 3: Relieve belt tension and remove the serpentine belt

• Locate the belt tensioner (spring-loaded pulley). On this engine, it is accessible from the passenger side.
• Use a 14mm socket on a long-handled ratchet, or a serpentine belt tool, on the tensioner bolt.
• Rotate the tensioner clockwise to relieve tension, then slide the belt off the A/C compressor pulley.
• Slowly release the tensioner back to rest.
• If replacing the belt, remove it entirely; if reusing, note the belt routing or take a photo.

Step 4: Disconnect electrical connector from the A/C compressor

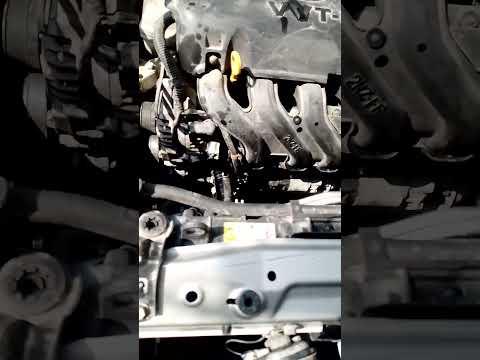

• Locate the compressor on the lower front of the engine.
• Use your fingers or a flathead screwdriver gently to release the tab on the compressor electrical connector.
• Pull the connector straight off and tuck the wiring aside.
• Do not pull on the wires themselves.

Step 5: Disconnect A/C lines at the compressor

• Confirm again that the system has been professionally evacuated. If not, stop here.
• Place a clean drain pan under the compressor area to catch any residual oil.
• Use the correct size flare nut wrench (10–14mm) or 12mm socket to remove the bolts holding the suction and discharge lines to the compressor manifold.
• Gently wiggle and pull the lines free; avoid bending the aluminum tubing.
• Immediately plug the open line ends with clean shop rags or caps to limit moisture entry.

Step 6: Remove the A/C compressor

• Use a 14mm socket and ratchet to remove the compressor mounting bolts.
• There are usually 3–4 bolts; support the compressor with one hand as you remove the last bolt.
• Lower the compressor out from the bottom of the engine bay.
• The compressor is heavy; keep your face clear.

Step 7: Prepare the new compressor

• Compare the new compressor to the old one to confirm the same mounting ears, electrical connector, and ports.
• Check the new compressor’s label or instructions for oil type and pre-fill amount.
• If oil must be added or adjusted, remove the compressor shipping plugs and drain any existing oil into a clean drain pan using gravity.
• Using the instructions, add the correct amount of compressor oil through the suction port.
• Install new O-rings on the suction and discharge fittings; use a pick tool to carefully remove old O-rings without scratching the metal.
• Lightly coat the new O-rings with clean compressor oil using a gloved finger.

Step 8: Install the new compressor

• Position the new compressor in place from below.
• Install the mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and ratchet to snug the bolts evenly.
• Then use a torque wrench with 14mm socket to tighten the compressor mounting bolts to 25 Nm (18 ft-lbs) unless your part instructions specify otherwise.
• Tighten bolts in a crisscross pattern for even clamping.

Step 9: Reconnect A/C lines to the compressor

• Remove the rags or caps from the A/C lines and compressor ports.
• Align each line carefully with its port to avoid damage.
• Install the line bolts or nuts by hand first.
• Use the correct size flare nut wrench or 12mm socket to tighten.
• Using a torque wrench, tighten the line fasteners to 10 Nm (7 ft-lbs). Do not overtighten; the O-rings seal the joint.

Step 10: Reconnect electrical connector

• Plug the compressor electrical connector back in until it clicks.
• Check that the harness is routed so it cannot rub on the belt or pulleys.

Step 11: Reinstall or replace the serpentine belt

• Route the new or existing belt according to the belt routing diagram under the hood (or your photo).
• Use the serpentine belt tool or 14mm socket on the tensioner to rotate it clockwise and slip the belt over the last pulley.
• Slowly release the tensioner to put tension on the belt.
• Visually check that the belt is seated in every pulley groove.

Step 12: Reinstall the lower splash shield

• Lift the splash shield into place.
• Use a 10mm socket to reinstall bolts.
• Push in the plastic clips by hand; replace any broken ones with new clips.

Step 13: Lower the car and reconnect the battery

• Use the floor jack to lift the car slightly, remove the jack stands, then lower it fully to the ground.
• Reconnect the negative battery cable with a 10mm socket and snug it tight.

Step 14: Evacuate and recharge the A/C system

• If you have proper A/C equipment, connect the A/C manifold gauge set to the high and low service ports.
• Connect the vacuum pump and pull vacuum for at least 30 minutes to remove air and moisture.
• Close the valves and make sure the system holds vacuum for at least 10–15 minutes (no significant rise in pressure).
• Charge the system with the exact refrigerant type and weight listed on the under-hood label, using a scale if available.
• If you do not have this equipment, drive (gently) to an A/C shop and have them perform vacuum and recharge with the correct quantity of refrigerant and oil.

Step 15: Clear any codes and test

• Use an OBD2 scan tool to check for and clear any stored A/C or engine codes.
• Start the engine, turn the A/C to MAX cold, fan high, and recirculation on.
• Let it run and verify the compressor engages, the radiator fans cycle, and the air from the center vents gets cold.
• Check under the hood for any unusual noises, leaks at line connections, or belt misalignment.

---

✅ After Repair

• Use a thermometer at the center vent to confirm outlet temperature drops as the A/C runs.
• Visually inspect all A/C line connections and compressor body for signs of oil or dye, which indicate leaks.
• Listen for belt squeal or chirping; if present, recheck belt routing and tensioner operation.
• If a new compressor was installed, avoid long idling with A/C on full for the first day; drive normally so oil circulates evenly.
• Recheck A/C performance after a few days of driving in both city and highway conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000–$1,500 (parts + labor + evac/recharge)

DIY Cost: $400–$750 (compressor, seals, belt, plus paying a shop for evac/recharge if needed)

You Save: $250–$800 by doing the mechanical work yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 3–4 hours, plus A/C machine time.

---
