🔧 Land Cruiser - A/C Compressor Replacement

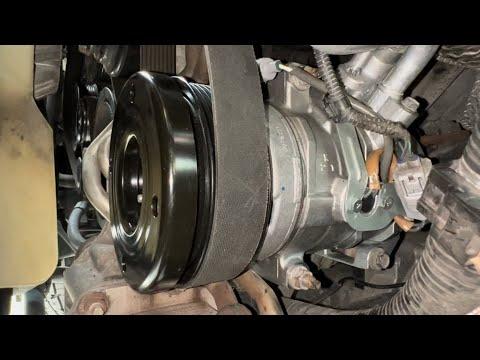

Replacing the A/C compressor on your Land Cruiser means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then pulling a vacuum and recharging the system. The most important part is handling the refrigerant correctly—your system must be fully recovered (emptied) before any lines are opened.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (plus evac/recharge time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous and regulated—have the system recovered before disconnecting any A/C line.
• ⚠️ Never vent refrigerant to the air; use a recovery machine or a shop.
• ⚠️ Wear eye protection—refrigerant/oil can cause severe eye injury.
• ⚠️ Work on a cool engine; keep hands clear of the fan and belt path.
• ⚠️ Disconnect the negative battery terminal to prevent the cooling fans from starting unexpectedly.
• ⚠️ Cap/plug A/C lines immediately to keep moisture out (moisture can damage the system).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 6" extension
• Torque wrench (10-80 Nm range)
• Serpentine belt tool 14mm
• Trim clip remover
• Pick tool
• Line caps/plugs kit
• Drain pan
• Shop rags
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV leak light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (complete assembly) - Qty: 1
• A/C compressor line O-ring set - Qty: 1
• PAG A/C oil (ND-OIL 8 / PAG 46 equivalent) - Qty: 1
• R-134a refrigerant - Qty: Per under-hood label by weight
• Receiver/drier or condenser with drier - Qty: 1 If compressor failed internally
• Serpentine drive belt - Qty: 1 Optional if worn/cracked

---

📋 Before You Begin

• Park on level ground, shift to Park, and chock the rear wheels.
• Have an A/C shop recover the refrigerant first, or use a recovery machine.
• Open the hood and disconnect the battery negative terminal using a 10mm socket.
• Raise the front safely with a floor jack and support with jack stands.
• Remove any lower splash shields/skid plates needed for access using a 12mm socket and trim clip remover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the system is empty (recovered)

• Connect your manifold gauge set for R-134a (specialty) to the high/low service ports.
• Verify both gauges read ~0 psi before opening any A/C connection.
• If pressure is present, stop and recover refrigerant with a refrigerant recovery machine (specialty).

Step 2: Remove the drive belt from the A/C compressor

• Locate the belt tensioner at the front of the engine.
• Use a serpentine belt tool 14mm to rotate the tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley first, then slowly release the tensioner.
• Tip: Take a quick photo of belt routing.

Step 3: Disconnect the compressor electrical connector

• Unplug the compressor connector by hand; use a pick tool gently if the lock tab is stubborn.

Step 4: Disconnect the A/C refrigerant lines from the compressor

• Place a drain pan under the compressor area.
• Remove the refrigerant line retaining bolt(s) using a 10mm socket.
• Carefully wiggle the lines free (do not pry hard on aluminum).
• Immediately cap/plug the open lines and compressor ports using a line caps/plugs kit.
• Remove and discard old O-rings using a pick tool.
• Torque to 9.8 Nm (87 in-lbs) for the refrigerant line retaining bolt(s) during reassembly.

Step 5: Remove the A/C compressor mounting bolts

• Support the compressor with one hand (it’s heavier than it looks).
• Remove the mounting bolts using a 12mm socket and 3/8" ratchet.
• Lower and remove the compressor from below.
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts during reassembly.

Step 6: Match oil amount (important)

• Pour the oil from the old compressor into a drain pan and note the amount removed.
• Add the same amount of fresh PAG A/C oil (ND-OIL 8 / PAG 46 equivalent) to the new compressor (unless the new compressor is pre-filled with the correct amount—check its instructions).
• This prevents under/over-oiling, which can damage the new compressor.

Step 7: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Tighten mounting bolts using a 12mm socket, then final-tighten with a torque wrench.
• Torque to 25 Nm (18 ft-lbs).

Step 8: Install new O-rings and reconnect A/C lines

• Lightly coat the new O-rings with clean PAG A/C oil (ND-OIL 8 / PAG 46 equivalent) using a gloved finger.
• Install new O-rings on the line ends, then reconnect the lines straight into the compressor ports.
• Install the retaining bolt(s) using a 10mm socket, then torque with a torque wrench.
• Torque to 9.8 Nm (87 in-lbs).

Step 9: Reinstall the belt

• Route the belt correctly, leaving the A/C compressor pulley for last.
• Use a serpentine belt tool 14mm to rotate the tensioner, slip the belt on, and release slowly.
• Visually confirm the belt ribs are fully seated in every pulley groove.

Step 10: Reinstall shields/skid plates and reconnect battery

• Reinstall any splash shields/skid plates using a 12mm socket and trim clip remover.
• Lower the vehicle from the jack stands.
• Reconnect the battery negative terminal using a 10mm socket.

Step 11: Vacuum and recharge the A/C system

• Connect the manifold gauge set for R-134a (specialty) and vacuum pump (specialty).
• Pull vacuum for at least 30–45 minutes; verify it holds vacuum afterward (leak check).
• Recharge using a refrigerant scale (specialty) by weight to the exact specification shown on the under-hood A/C label.
• Tip: Charging “by pressure” is inaccurate.

---

✅ After Repair

• Start the engine and set A/C to MAX cool; confirm the compressor engages and the air turns cold.
• Check for abnormal noises (grinding/squeal is not normal).
• Use a UV leak light (specialty) to inspect fittings if dye is present in the system.
• Recheck belt alignment after a short test drive.
• If the old compressor failed internally (metal debris), strongly consider replacing the receiver/drier (often part of the condenser) and flushing lines—otherwise the new compressor can fail quickly.

---

💰 DIY vs Shop Cost

Shop Cost: ₹35,000-₹90,000 (parts + labor + evac/recharge)

DIY Cost: ₹18,000-₹55,000 (parts only, assuming you already have specialty equipment)

You Save: ₹17,000-₹35,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
