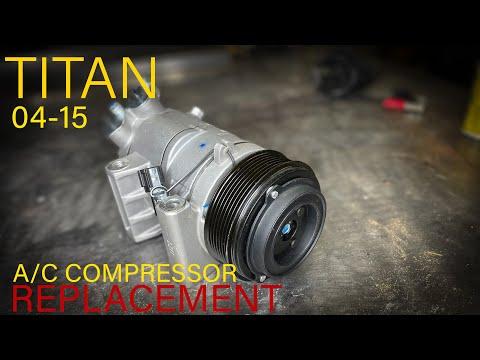

🔧 Titan - A/C Compressor Replacement

Replacing the A/C compressor on your Titan requires safely recovering the refrigerant, removing the drive belt and compressor, then installing the new compressor with the correct oil amount and pulling a deep vacuum before recharging. This job can’t be done correctly (or legally) by just “cracking lines open,” because refrigerant must be recovered with proper equipment.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Two quick questions before I give you the exact, trim-correct steps (including torque specs):

• ❓ Do you have access to an A/C recovery machine + vacuum pump + manifold gauge set, or will a shop recover/evacuate/recharge it for you?
• ❓ Are you replacing only the compressor, or also the condenser/drier or expansion valve due to a compressor failure (metal debris)?

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure—do not loosen A/C lines unless the system is professionally recovered first.
• ⚠️ Wear eye protection and gloves; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Keep hands clear of the belt drive and cooling fans; fans can run unexpectedly.
• ⚠️ Battery disconnect is recommended before unplugging compressor wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• Socket set (8mm-19mm)
• Serpentine belt tool (specialty)
• Torque wrench (10-200 Nm range)
• A/C line spring-lock / disconnect tool set (specialty)
• Pick set
• Trim clip removal tool
• Drain pan
• Shop rags
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct for your Titan) - Qty: 1
• A/C compressor clutch (if not included with compressor) - Qty: 1
• A/C compressor O-ring seal set - Qty: 1
• PAG A/C oil (correct viscosity for your Titan) - Qty: 1
• R-134a refrigerant - Qty: 1
• Receiver/drier or desiccant element (recommended if system opened) - Qty: 1
• Serpentine belt (recommended if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Have the A/C system recovered before any line is opened (shop or your recovery machine).
• Disconnect the negative battery cable using a 10mm socket.
• Clean around the A/C line fittings so dirt can’t enter the system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set (specialty) to the high/low service ports.
• Use a refrigerant recovery machine (specialty) to recover the refrigerant until both gauges read stable at/near zero.
• Never vent refrigerant to air.

Step 2: Gain access to the compressor

• Raise the front safely using a floor jack and support with jack stands.
• Remove any lower splash shield/under-cover fasteners using a trim clip removal tool and socket set (8mm-12mm).

Step 3: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a photo of belt routing first.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab using a pick set (gently).

Step 5: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor; some oil may drip.
• Remove the line retaining fasteners using the socket set (typically 10mm-12mm).
• Separate the lines using an A/C line spring-lock / disconnect tool set (specialty) if equipped with spring-lock fittings.
• Immediately cap/cover open lines with clean plastic and shop rags.

Step 6: Remove the A/C compressor

• Support the compressor by hand and remove mounting bolts using a ratchet and socket set.
• Remove the compressor from the bracket and lower it out carefully.
• Torque specs: I’ll provide exact bolt torques once you answer the two questions above (they vary by compressor/bracket configuration).

Step 7: Prep the new compressor (oil and seals)

• Replace all A/C line O-rings with the new ones from the A/C compressor O-ring seal set using a pick set.
• Lightly coat O-rings with clean PAG A/C oil so they don’t pinch.
• Set compressor oil correctly: once you tell me whether the old compressor failed internally (metal/debris) and what parts you’re replacing, I’ll give the correct oil balancing steps for your Titan.

Step 8: Install the new compressor

• Position the compressor and hand-start the mounting bolts.
• Tighten bolts evenly using a torque wrench.
• Reconnect A/C lines and tighten line fasteners using a torque wrench (exact torque to follow after your answers).
• Reconnect the electrical connector by hand until it clicks.

Step 9: Reinstall belt and shields

• Route the belt correctly and use the serpentine belt tool (specialty) to set it back onto the A/C pulley.
• Reinstall under-cover/splash shield fasteners using the socket set and trim clip removal tool.

Step 10: Evacuate and recharge the system

• Reconnect the battery using a 10mm socket.
• Pull vacuum using the vacuum pump (specialty) through the A/C manifold gauge set (specialty) to remove air/moisture.
• Recharge by weight using a refrigerant scale (specialty).
• Exact vacuum time and exact refrigerant charge amount: I’ll provide once you answer the two questions (and confirm whether the system was fully empty and opened for long).

---

✅ After Repair

• Start the engine and set A/C to MAX; confirm the compressor clutch engages and vents blow cold.
• Check for leaks at the compressor fittings using an A/C leak detector (specialty) or UV dye method if you have it.
• Listen for belt squeal or rattles; recheck belt alignment.
• Verify both low/high pressures are stable on the A/C manifold gauge set (specialty).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor, plus evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you have A/C equipment)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.
