🔧 Altima - A/C Compressor Replacement

Replacing the A/C compressor on your Altima is a mechanical job plus an A/C system service job. The system must be properly recovered (emptied), then vacuumed and recharged to the under-hood label spec to prevent damage and get cold air again.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure—do not crack A/C lines open unless the system has been professionally recovered.
• ⚠️ Wear safety glasses and gloves; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor or working near the radiator fan.
• ⚠️ Keep dirt/moisture out of open A/C lines; cap/plug openings immediately.
• ⚠️ If the old compressor failed internally (metal debris), the condenser and expansion valve often must be replaced and lines flushed, or the new compressor can fail quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive torque wrench
• 1/2" drive torque wrench
• Socket set (8mm-19mm)
• Wrench set (10mm-19mm)
• Serpentine belt tool or long 14mm box wrench
• Phillips screwdriver
• Trim clip removal tool
• Pry bar (small)
• Pick set
• Line caps/plugs assortment
• Drain pan
• Shop rags
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV flashlight (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutchless control valve (if applicable) - Qty: 1
• A/C line O-ring set - Qty: 1
• PAG A/C compressor oil (Nissan-compatible) - Qty: 1
• R-134a refrigerant - Qty: As needed (charge to under-hood label)
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• A/C condenser assembly with receiver/drier (if compressor failed internally) - Qty: 1
• A/C expansion valve (if compressor failed internally) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have an A/C shop recover the refrigerant before you start disassembly (required before opening lines).
• Open the hood and confirm the refrigerant type and factory charge amount on the under-hood A/C label.
• Disconnect the negative battery terminal using a 10mm socket.
• If you suspect internal compressor failure: plan to replace the condenser/receiver-drier and expansion valve and flush lines.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant (must be empty before opening)

• Have the system recovered with an A/C recovery machine (shop or equipped DIY).
• Do not proceed until the system is confirmed empty.

Step 2: Raise the front of the car and remove the lower cover

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the engine under-cover/splash shield fasteners using a trim clip removal tool, Phillips screwdriver, and 10mm socket as needed.

Step 3: Release serpentine belt tension

• Locate the belt tensioner and rotate it using a serpentine belt tool or long 14mm box wrench to relieve tension.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• Take a belt-routing photo first.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by hand; use a pick set gently if the lock tab is stubborn.

Step 5: Remove the A/C lines from the compressor

• Place a drain pan under the compressor; a small amount of oil may drip.
• Remove the suction/discharge line retaining bolt(s) using the correct 10mm socket or 12mm socket (varies by fitting).
• Pull the manifold/lines straight off the compressor (do not pry hard on aluminum lines); use a small pry bar only if needed and gently.
• Immediately cap the open lines and compressor ports using line caps/plugs assortment.
• Remove and discard old O-rings using a pick set.

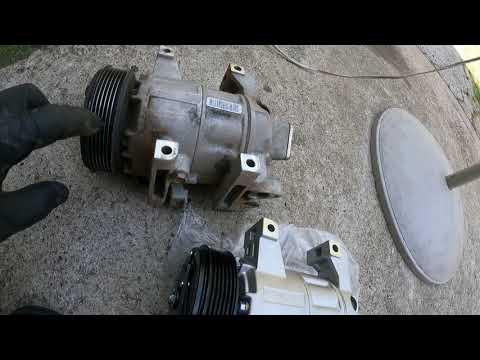

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a socket set (12mm-14mm as fitted) and ratchet.
• Lower and remove the compressor from the engine bay.

Step 7: Set compressor oil correctly (critical)

• Drain the old compressor oil into a measuring container over the drain pan.
• Add the same amount of correct PAG A/C compressor oil (Nissan-compatible) into the new compressor unless the new unit’s instructions specify otherwise.
• Rotate the compressor hub by hand several turns to distribute oil.
• Wrong oil amount can ruin the new compressor.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a torque wrench to factory specification for your Altima.

Step 9: Install new O-rings and reconnect A/C lines

• Install new O-rings from the A/C line O-ring set.
• Lightly coat O-rings with clean PAG A/C compressor oil (Nissan-compatible).
• Reconnect the line manifold straight onto the compressor and install the retaining bolt(s) using a 10mm socket or 12mm socket.
• Tighten the line fasteners with a torque wrench to factory specification for your Altima.

Step 10: Reconnect electrical connector and reinstall the belt

• Reconnect the compressor electrical connector until it clicks.
• Route the belt correctly and rotate the tensioner using a serpentine belt tool or long 14mm box wrench.
• Slip the belt back onto the compressor pulley and release the tensioner slowly.

Step 11: Reinstall splash shield and lower the car

• Reinstall the under-cover using a 10mm socket, Phillips screwdriver, and trim clip removal tool.
• Lower the vehicle safely from jack stands using the floor jack.

Step 12: Evacuate and recharge the A/C system

• Connect an A/C manifold gauge set (specialty).
• Pull a deep vacuum with a vacuum pump (specialty) and verify it holds vacuum (leak check).
• Recharge by weight using a refrigerant scale (specialty) to the exact amount listed on the under-hood label.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Start the engine and set A/C to MAX; verify the compressor engages and the air gets cold.
• Check for abnormal noises and inspect for oil residue at the compressor line fittings (possible leak).
• If cooling is weak, verify charge amount by weight (do not “top off” by pressure alone).

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$2,200 (parts + labor)

DIY Cost: $300-$1,200 (parts only, assuming you already have A/C service equipment)

You Save: $700-$1,000+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
