🔧 Mazda3 - A/C Compressor Replacement

Replacing the A/C compressor on your Mazda3 is a bolt-on job, but the A/C refrigerant must be safely recovered and the system must be vacuum-evacuated and recharged to the exact factory specification afterward. Most repeat failures come from skipped steps like flushing/contamination control or incorrect oil/refrigerant charge.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have it recovered with proper equipment.
• ⚠️ Keep hands/tools clear of the serpentine belt path.
• ⚠️ Wear eye protection; refrigerant/oil can injure eyes/skin.
• ⚠️ If the system failed “internally” (metal debris), more parts/cleaning are required or the new compressor can fail quickly.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-17mm
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Pliers
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• A/C refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring kit - Qty: 1
• R-134a refrigerant - Qty: 1 (charge to factory spec)
• PAG A/C compressor oil (correct spec for Mazda3) - Qty: 1 (amount depends on what parts are replaced)
• Receiver/drier or desiccant bag (if serviced separately on your Mazda3) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the A/C system refrigerant professionally recovered, or use an approved recovery machine before opening any A/C line.
• Disconnect the negative battery cable using a 10mm socket.
• Confirm the failure mode: if the old compressor “grenaded” (metal in oil), plan on additional parts/cleaning before installing the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Answer these two quick checks (so I give the correct path)

• Is the A/C system currently still charged (cold air recently), or is it already empty?
• Are you replacing only the compressor, or also the condenser/receiver-drier (recommended if debris contamination)?

Step 2: Recover refrigerant (required before opening lines)

• Connect the R-134a manifold gauge set to the high/low service ports.
• Use an A/C refrigerant recovery machine (specialty) to recover the refrigerant completely.
• If you don’t have recovery equipment, stop here and have a shop recover it—then continue with the mechanical steps.

Step 3: Raise the front and access the compressor area

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove any lower splash shield/undercover fasteners using a trim clip removal tool and metric socket set 8mm-12mm.

Step 4: Remove serpentine belt from the A/C compressor pulley

• Relieve belt tension with a serpentine belt tool (specialty).
• Slip the belt off the A/C compressor pulley and slowly release tension.
• Take a photo of belt routing.

Step 5: Unplug the compressor electrical connector

• Release the lock tab and unplug the compressor connector using a flathead screwdriver if needed.

Step 6: Remove the A/C lines from the compressor

• Place rags under the fittings.
• Remove the suction/discharge line retaining bolt(s) using a metric socket set and 3/8" drive ratchet.
• Carefully pull the lines straight off.
• Remove and discard the old O-rings; install new O-rings from the A/C compressor O-ring kit (lightly coat with correct PAG A/C compressor oil).

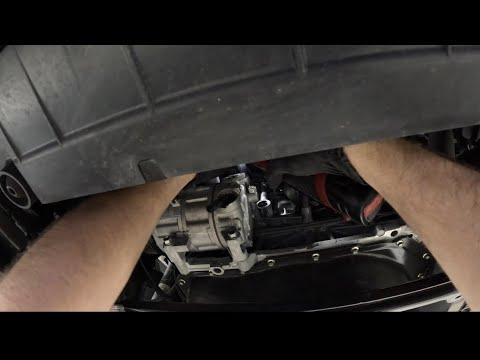

Step 7: Remove the compressor mounting bolts and compressor

• Support the compressor by hand.
• Remove compressor mounting bolts using a metric socket set and 3/8" drive ratchet.
• Remove the compressor from below.
• Torque to manufacturer specification (Mazda service manual) on install.

Step 8: Set compressor oil correctly (critical)

• If your new compressor is shipped with oil, verify the amount/type before installing.
• Drain and measure oil from the old compressor into a container to estimate how much to add back (method depends on whether other components are replaced).
• Add the correct PAG A/C compressor oil (correct spec for Mazda3) to the new compressor as required.
• Wrong oil amount can destroy the compressor.

Step 9: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Tighten bolts evenly using a 3/8" drive ratchet, then final tighten with a 3/8" drive torque wrench.
• Torque to manufacturer specification (Mazda service manual).

Step 10: Reconnect the A/C lines with new O-rings

• Install the lines straight into place (do not force).
• Install the retaining bolt(s) using a metric socket set and final tighten with a 3/8" drive torque wrench.
• Torque to manufacturer specification (Mazda service manual).

Step 11: Reconnect electrical connector and reinstall belt

• Plug the connector back in until it clicks.
• Route the belt and apply tension with the serpentine belt tool (specialty).
• Visually confirm the belt is fully seated in every pulley groove.

Step 12: Vacuum-evacuate and recharge the A/C system

• Connect the R-134a manifold gauge set.
• Pull vacuum using a vacuum pump (specialty) for a proper evacuation.
• Verify vacuum holds (leak check).
• Recharge by weight using a refrigerant scale (specialty) with R-134a refrigerant to the exact factory charge amount.
• Charge amount must match the under-hood A/C label.

Step 13: Reinstall splash shields and lower the car

• Reinstall undercovers using a trim clip removal tool and metric socket set.
• Lower the vehicle from jack stands.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Start the engine and turn A/C on MAX; confirm the compressor engages and air gets cold.
• Check for abnormal noises and check for leaks at the compressor line connections.
• If cooling is weak, do not “top off” randomly—recover and recharge by weight.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + recover/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C equipment)

You Save: $300-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
