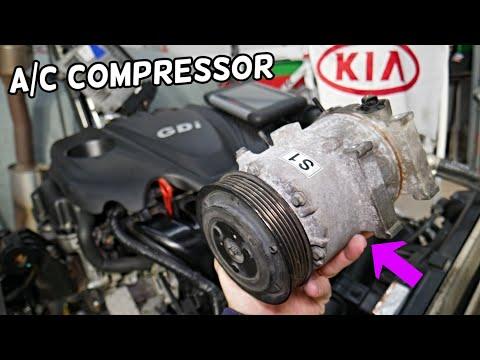

🔧 Sorento - A/C Compressor Replacement

Replacing the A/C compressor on your Sorento requires safely recovering the refrigerant, removing the drive belt and refrigerant lines, swapping the compressor, then pulling a deep vacuum and recharging to the exact factory specification. The “exact spec” matters a lot here—wrong refrigerant charge or oil amount can destroy the new compressor quickly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper A/C equipment—do not vent to the air.
• ⚠️ Wear eye protection and gloves—liquid refrigerant can cause frostbite.
• ⚠️ Do not run the A/C system empty—compressor damage can occur.
• ⚠️ Support the vehicle securely if you’ll be working underneath.
• ⚠️ If the compressor failed internally (metal debris), additional parts/flush work may be required to prevent repeat failure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 Nm range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Pliers
• Line/flare-nut wrench set (metric)
• A/C manifold gauge set for R-134a
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch (if serviced separately) - Qty: 1
• A/C compressor O-ring set - Qty: 1
• PAG A/C oil (correct viscosity per underhood label) - Qty: 1
• R-134a refrigerant (charge amount per underhood label) - Qty: 1
• A/C receiver/drier or desiccant (if applicable for your system) - Qty: 1
• A/C condenser (only if compressor failed with debris) - Qty: 1
• Serpentine belt (only if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Confirm your system details from the underhood A/C label (usually on the underside of the hood or radiator support): refrigerant type, refrigerant charge amount, and oil type.
• Plan refrigerant recovery: either use a refrigerant recovery machine (specialty) or have a shop recover the refrigerant before you start disassembly.
• If you disconnect any electrical connectors near the compressor, switch the ignition OFF and keep the key away from the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm two required details (so I can give exact specs and torque)

• Look for rear A/C: do you have rear climate controls/vents for 2nd/3rd row?
• Read the underhood A/C label and tell me the refrigerant charge amount and oil type.

Step 2: Recover the refrigerant

• Connect your A/C manifold gauge set for R-134a to the high/low service ports.
• Use a refrigerant recovery machine (specialty) to fully recover the refrigerant until the system is at zero pressure.
• Never loosen A/C lines under pressure.

Step 3: Raise the front and remove splash shields (as needed)

• Use a floor jack (rated 3-ton minimum) to lift the front, then support with jack stands (rated 3-ton minimum).
• Remove the lower engine cover/splash shield using a trim clip removal tool, flathead screwdriver, and metric socket set 8mm-19mm.

Step 4: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) (or 1/2" drive breaker bar if applicable) to rotate the belt tensioner and slip the belt off the compressor pulley.
• Inspect the belt for cracks/glazing; replace if needed.

Step 5: Disconnect the compressor electrical connector

• Release the lock tab and unplug the compressor connector using your fingers or flathead screwdriver (gentle).

Step 6: Remove the A/C refrigerant lines from the compressor

• Place rags under the compressor area.
• Remove the line retaining bolt(s) using a metric socket set 8mm-19mm and 3/8" drive ratchet.
• Carefully pull the lines straight out; remove old O-rings with a flathead screwdriver.
• Install new O-rings from the A/C compressor O-ring set (lightly lubricate with clean PAG A/C oil).

Step 7: Remove the compressor from its bracket

• Support the compressor by hand.
• Remove the mounting bolts using a metric socket set 8mm-19mm and 3/8" drive ratchet.
• Lower the compressor out carefully (it’s heavier than it looks).

Step 8: Prepare the new compressor (oil balancing)

• Drain and measure oil from the old compressor into a clean container (note the amount).
• Add the same amount of the correct PAG A/C oil into the new compressor unless your replacement compressor comes pre-filled with instructions to do otherwise.
• Rotate the compressor hub by hand several turns to distribute oil evenly.

Step 9: Install the new compressor

• Position the compressor and hand-start all mounting bolts using a metric socket set 8mm-19mm.
• Tighten with a torque wrench (10-200 Nm range) to the correct factory torque.
• Important: I’ll give you the exact Sorento torque specs once you answer Step 1 (rear A/C + label data).

Step 10: Reconnect lines, connector, and belt

• Install the refrigerant lines and retaining bolt(s) using a metric socket set 8mm-19mm, then torque with a torque wrench.
• Reconnect the compressor electrical connector.
• Route and install the serpentine belt using a serpentine belt tool (specialty).

Step 11: Vacuum test and recharge

• Connect the A/C manifold gauge set for R-134a and pull vacuum with a vacuum pump (specialty) for at least 30 minutes.
• Close valves and verify the vacuum holds (leak check).
• Recharge by weight using a refrigerant scale (specialty) to the exact label specification.

---

✅ After Repair

• Start the engine and turn A/C on MAX; confirm the compressor engages and the center vent air gets cold.
• Check for leaks at the compressor line connections (look for oily residue).
• If cooling is weak or pressures are abnormal, stop and recheck charge weight and for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
