🔧 Optima - A/C Compressor Replacement

Replacing the A/C compressor on your Optima is a multi-stage job: the refrigerant must be safely recovered first, then the compressor is swapped, and finally the system is vacuumed and recharged to an exact specification. The exact procedure, oil amount, and torque specs depend on which refrigerant system your Optima has.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (plus A/C evac/recharge time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is pressurized—do not loosen A/C lines until refrigerant is professionally recovered.
• ⚠️ Venting refrigerant is illegal and can cause frostbite/eye injury.
• ⚠️ Keep hands/clothes clear of the serpentine belt and pulleys.
• ⚠️ Let the engine cool before working near the radiator and turbo plumbing.
• ⚠️ Battery disconnect is recommended before unplugging the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-150 ft-lbs)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flat-blade screwdriver
• Pick tool
• Line/flare-nut wrench set (10mm-17mm)
• Drain pan
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• OBD2 scan tool (basic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct for your Optima) - Qty: 1
• A/C compressor clutch (if serviced separately, if applicable) - Qty: 1
• A/C manifold line O-ring set - Qty: 1
• A/C refrigerant (must match under-hood label: R-134a or R-1234yf) - Qty: 1
• A/C compressor oil (type must match system) - Qty: 1
• Serpentine belt (recommended if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Open the hood and read the under-hood A/C label for the refrigerant type and charge amount.
• Plan for refrigerant recovery: either use a refrigerant recovery machine (specialty) or schedule a shop to recover the system before you start disassembly.
• Disconnect the negative battery terminal using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm your refrigerant type and factory charge spec

• Locate the A/C label (usually on the underside of the hood or radiator support).
• Write down: refrigerant type (R-134a or R-1234yf) and the factory charge amount.
• If you can, take a clear photo of the label for reference.

Step 2: Recover the refrigerant (required before opening the system)

• Connect an A/C manifold gauge set (specialty) to the high/low service ports.
• Recover refrigerant using a refrigerant recovery machine (specialty) per the machine’s instructions.
• Do not crack lines “to see if it’s empty.”

Step 3: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove underbody clips/screws using a trim clip removal tool and metric sockets (10mm-12mm).

Step 4: Remove serpentine belt from the compressor

• Relieve belt tension using a serpentine belt tool (specialty) (or breaker bar if access allows).
• Slip the belt off the compressor pulley and move it aside.

Step 5: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab using a pick tool (gentle—don’t break it).

Step 6: Remove the A/C lines from the compressor

• Place a drain pan underneath (a small amount of oil may drip).
• Loosen the line fasteners using the correct metric socket or line/flare-nut wrench.
• Immediately cap/cover open lines to keep moisture out.
• Remove and discard old O-rings using a pick tool.

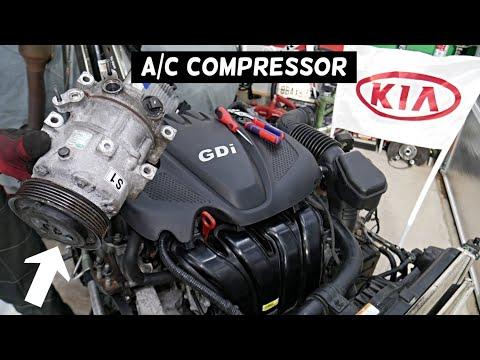

Step 7: Remove the compressor mounting bolts and remove compressor

• Support the compressor by hand.
• Remove mounting bolts using a metric socket and ratchet.
• Lower and remove the compressor from underneath.
• Torque spec note: I’ll provide exact bolt torques once you confirm the A/C label (refrigerant type) because the service spec set can differ by system.

Step 8: Prepare and install the new compressor

• Compare the new compressor to the old one (ports/connector/pulley alignment).
• Add the correct oil amount/type as specified for your Optima’s system (varies by refrigerant and what parts were replaced).
• Install the compressor and start all bolts by hand before tightening with a ratchet.
• Tighten with a torque wrench (10-150 ft-lbs) to the confirmed OEM spec.

Step 9: Install new O-rings and reconnect A/C lines

• Lightly lubricate new O-rings with the correct A/C compressor oil.
• Install lines and tighten fasteners using a torque wrench to the confirmed OEM spec.

Step 10: Reinstall belt and shields

• Route and reinstall the serpentine belt using a serpentine belt tool (specialty).
• Reinstall the splash shield using a trim clip removal tool and metric sockets.

Step 11: Evacuate and recharge the A/C system

• Pull vacuum with an A/C manifold gauge set (specialty) and vacuum pump (specialty) to remove air/moisture.
• Verify vacuum hold (leak check).
• Recharge by weight using a refrigerant scale (specialty) with the exact amount from your Optima’s under-hood label.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Start the engine and turn A/C on MAX; verify cold vent temps and that the compressor engages smoothly.
• Check for abnormal belt noise and inspect for refrigerant/oil leaks around the compressor line joints.
• Use an OBD2 scan tool (basic) to check for A/C-related codes and clear if appropriate.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor, includes evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C equipment)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
