🔧 Forte - A/C Compressor Replacement

Replacing the A/C compressor on your Forte requires recovering the refrigerant, removing the drive belt, swapping the compressor, then vacuuming and recharging the system. The “must-do” part is doing the refrigerant recovery/evac/charge correctly so the new compressor doesn’t fail right away.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ A/C refrigerant (R-134a) is under high pressure—do not open lines unless the system is professionally recovered.
• ⚠️ Wear eye protection and gloves; refrigerant/oil can freeze-burn skin and eyes.
• ⚠️ Keep the engine off and keys away while working near the belt and fan.
• ⚠️ If the old compressor failed internally (metal debris), the condenser/drier may need replacement and the system must be flushed—skipping this can ruin the new compressor fast.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch/connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Serpentine belt tool or 1/2" breaker bar
• Trim clip remover
• Flathead screwdriver
• Line/flare-nut wrench set (10mm-17mm)
• Pick set
• Drain pan
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV leak dye light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (R-134a compatible) - Qty: 1
• R-134a refrigerant - Qty: 1
• Receiver/drier or accumulator (if equipped / recommended after compressor failure) - Qty: 1
• A/C condenser (only if compressor failed internally with debris) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely.
• Have the A/C system professionally recovered (refrigerant removed) before you loosen any A/C line.
• Disconnect the negative battery terminal using a 10mm socket.
• Quick questions (answer these and I’ll tailor the exact steps, including factory torque specs and the correct oil/refrigerant amounts):
• ❓ Did the old compressor fail loudly / seize / shed metal (or did it just stop cooling)?
• ❓ Do you have access to an A/C recovery/evac/charge setup (recovery machine + vacuum pump + scale), or are you having a shop do recovery and recharge?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (mandatory)

• Use a refrigerant recovery machine (specialty) to recover the R-134a from the A/C system.
• Do not proceed until pressures are at zero on the A/C manifold gauge set (specialty).

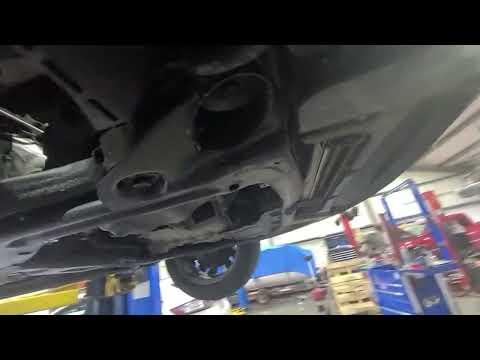

Step 2: Raise the front and access the compressor area

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower splash shield using a trim clip remover and metric sockets as needed.

Step 3: Remove the drive belt

• Relieve belt tension using a serpentine belt tool or 1/2" breaker bar.
• Slip the belt off the A/C compressor pulley and note the belt routing.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab using a pick set if needed.

Step 5: Remove the A/C lines from the compressor

• Place a drain pan underneath to catch oil.
• Loosen the line/manifold fasteners using metric sockets and/or a line/flare-nut wrench set (10mm-17mm).
• Immediately remove and discard old O-rings using a pick set.
• Cap lines to keep dirt out.

Step 6: Remove the compressor

• Support the compressor by hand.
• Remove the compressor mounting bolts using a metric socket set (8mm-19mm) and 3/8" drive ratchet.
• Lower the compressor out carefully.

Step 7: Prepare and install the new compressor

• Confirm the new compressor is the correct match (mounting ears and ports identical).
• Measure and set oil correctly before install (oil amount depends on whether other parts are replaced).
• Install new O-rings and lightly coat them with clean PAG A/C compressor oil (R-134a compatible).
• Reinstall the compressor and tighten fasteners using a 3/8" drive torque wrench (10-100 Nm range).
• Torque specs: I’ll provide the exact Kia torque values once you answer the 2 questions above (they change based on which lines/fasteners and bracket style your compressor uses).

Step 8: Reinstall belt, shields, and reconnect battery

• Reinstall the belt using a serpentine belt tool or 1/2" breaker bar.
• Reinstall the splash shield using a trim clip remover and metric sockets.
• Reconnect the battery negative terminal using a 10mm socket.

Step 9: Evacuate and recharge the A/C system

• Pull vacuum with a vacuum pump (specialty) through the A/C manifold gauge set (specialty) to remove air and moisture.
• Verify it holds vacuum (leak check).
• Recharge by weight using a refrigerant scale (specialty).
• Charge amount: I’ll give the exact factory R-134a weight after your answers (it must be by weight, not “by pressure”).

---

✅ After Repair

• Start the engine and turn A/C on MAX; verify cold air and stable vent temps.
• Inspect for leaks at the compressor manifold using a UV leak dye light (specialty) if dye is present.
• Listen for belt noise and confirm the belt tracks correctly on all pulleys.
• If the old compressor failed with debris, plan on a follow-up check after 1-2 days to ensure no new noise and no oil staining at fittings.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$850 (parts only, depends on compressor/condenser/drier)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
