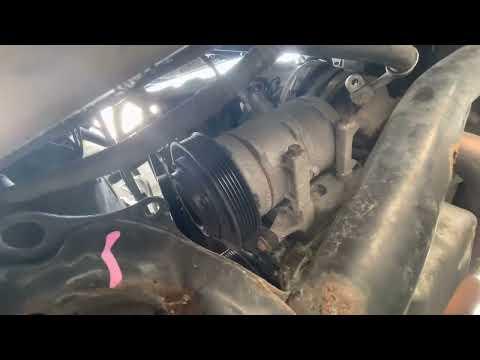

🔧 Odyssey - A/C Compressor Replacement

Replacing the A/C compressor on your Odyssey is a remove-and-reinstall job plus opening the refrigerant system (the sealed A/C lines). The system must be properly recovered (emptied), vacuumed, and recharged to the under-hood label spec so it cools correctly and doesn’t get damaged.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment—do not vent refrigerant to the air.
• ⚠️ Wear safety glasses and gloves; refrigerant can freeze skin/eyes on contact.
• ⚠️ Let the engine cool fully; you’ll work near hot components and the radiator fans.
• ⚠️ Support the van on jack stands on level ground; never rely on a jack alone.
• ⚠️ Disconnecting the battery is recommended before unplugging the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (10-100 ft-lbs range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flat-blade screwdriver
• Needle-nose pliers
• A/C line plug kit (specialty)
• R-1234yf manifold gauge set (specialty)
• R-1234yf recovery/recycle/recharge machine (specialty)
• Vacuum pump (A/C) (specialty)
• Electronic refrigerant leak detector (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (complete assembly) - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• Refrigerant (verify under-hood label type and weight) - Qty: 1
• A/C compressor oil (verify correct type for label refrigerant) - Qty: 1
• Serpentine drive belt - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Confirm the refrigerant type/charge amount from the under-hood A/C label (most Odysseys use R-1234yf). If you want, upload a photo of that label so I can match the exact refrigerant/oil callout.
• Plan your refrigerant handling: either use a R-1234yf recovery/recharge machine (specialty) or have a shop recover and later recharge the system after you install the compressor.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Raise the front and support on jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use a R-1234yf recovery/recycle/recharge machine (specialty) to recover the system completely.
• If you don’t have A/C service equipment, stop here and have a shop recover it first. Then continue with the mechanical steps.

Step 2: Remove the lower engine cover (if equipped)

• Use a trim clip removal tool and 10mm socket to remove the clips/bolts and take off the splash shield.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a photo of belt routing first.

Step 4: Unplug the compressor electrical connector

• Use a flat-blade screwdriver (gently) to release the connector lock tab if needed, then unplug the connector.

Step 5: Disconnect the A/C lines from the compressor

• Use a metric socket set (8mm-14mm) and 3/8" ratchet to remove the compressor manifold retaining bolt(s).
• Pull the lines straight off (do not pry hard). Immediately cap the open lines with an A/C line plug kit (specialty).
• Remove and discard the old O-rings using needle-nose pliers.

Step 6: Remove the A/C compressor

• Support the compressor by hand, then use a metric socket set (12mm-14mm) and 3/8" ratchet to remove the compressor mounting bolts.
• Lower the compressor out carefully from below.
• Torque to 25 Nm (18 ft-lbs) when reinstalling compressor mounting bolts.

Step 7: Prepare the new compressor (oil handling)

• Verify the new compressor matches the old one (ports, connector, mounting ears).
• If the new compressor is not pre-filled correctly, add the specified oil amount/type for your Odyssey’s refrigerant label using the correct A/C compressor oil.
• Too much oil reduces cooling and can damage the system.

Step 8: Install the new compressor

• Position the compressor and start the mounting bolts by hand to avoid cross-threading.
• Use a torque wrench (10-100 ft-lbs range) to tighten mounting bolts: Torque to 25 Nm (18 ft-lbs).

Step 9: Install new O-rings and reconnect A/C lines

• Lightly lubricate the new O-rings with a small amount of the correct A/C compressor oil.
• Install the O-rings on the line ends, then push the lines straight into the compressor ports.
• Install the retaining bolt(s) using a 3/8" ratchet, then tighten with a torque wrench: Torque to 12 Nm (9 ft-lbs).

Step 10: Reconnect electrical connector and reinstall belt

• Reconnect the compressor connector until it clicks.
• Use a serpentine belt tool (specialty) to rotate the tensioner and reinstall the belt on all pulleys.

Step 11: Reinstall lower cover and reconnect battery

• Reinstall the splash shield using a trim clip removal tool and 10mm socket.
• Reconnect the battery negative terminal using a 10mm socket and tighten securely.

Step 12: Evacuate, leak-check, and recharge the A/C system

• Use a R-1234yf manifold gauge set (specialty) and vacuum pump (A/C) (specialty) to pull vacuum for at least 30 minutes.
• Close the valves and verify the vacuum holds (no rise) to confirm no major leaks.
• Recharge using a R-1234yf recovery/recycle/recharge machine (specialty) by exact weight per the under-hood label.
• Use an electronic refrigerant leak detector (specialty) around the compressor/line connections after charging.

---

✅ After Repair

• Start the engine and turn A/C on Max; confirm the compressor engages and the air gets cold.
• Check for abnormal noises (squeal, grinding) and re-check belt alignment.
• Recheck for leaks at the compressor line manifold with an electronic refrigerant leak detector (specialty).
• If cooling is weak, do not “top off”—recover and recharge by weight to the label spec.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + refrigerant service)

DIY Cost: $350-$900 (parts only, assuming you have A/C service equipment)

You Save: $300-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
