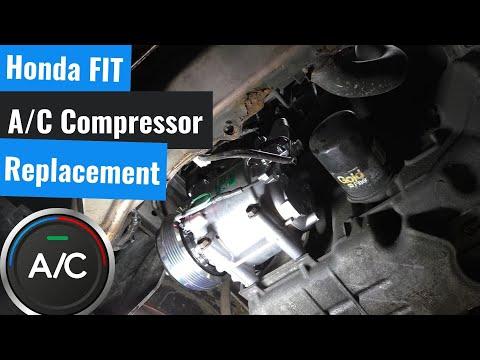

🔧 Fit - A/C Compressor Replacement

Replacing the A/C compressor on your Fit involves removing the drive belt from the compressor pulley, disconnecting the refrigerant lines, swapping the compressor, then evacuating and recharging the system. The critical part is handling refrigerant correctly and getting the oil amount right to prevent repeat compressor failure.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the system recovered with an A/C recovery machine (legal and safety requirement).
• ⚠️ Wear safety glasses and gloves—refrigerant can cause severe frostbite on skin/eyes.
• ⚠️ Work on a cool engine; keep hands/clothes clear of the belt path.
• ⚠️ Support the car with jack stands on solid, level ground—never rely on a jack alone.
• ⚠️ Keep dirt out of A/C lines—cap openings immediately after disconnecting.
• ⚠️ Battery disconnect is recommended before unplugging compressor wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 N·m range)
• Flat trim clip tool
• Line caps/plug kit (A/C line caps)
• Manifold gauge set for R-134a
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (new or remanufactured) - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (Honda-compatible) - Qty: 1
• R-134a refrigerant - Qty: As needed to match under-hood label
• Receiver/drier or desiccant element (if serviceable on your Fit) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the A/C system refrigerant professionally recovered, or use a refrigerant recovery machine (specialty) before any lines are opened.
• Disconnect the negative battery cable using a 10mm socket.
• Plan to keep the system “open to air” for as little time as possible; moisture damages A/C components.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the manifold gauge set for R-134a to the high and low service ports.
• Recover refrigerant using a refrigerant recovery machine (specialty) until the system is fully empty.
• Never crack a line “to see if pressure remains.”

Step 2: Raise the front and remove the lower splash shield

• Lift the front using a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove the engine under cover / splash shield clips with a flat trim clip tool, then remove any bolts with a 10mm socket.

Step 3: Remove the drive belt from the A/C compressor pulley

• From the passenger side of the engine bay, rotate the belt tensioner using a 14mm socket and 3/8" drive ratchet to relieve belt tension.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner back.
• Take a quick photo of belt routing.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by hand after pressing the lock tab.

Step 5: Disconnect the refrigerant lines from the compressor

• Remove the A/C line retaining bolt(s) at the compressor manifold using a 10mm socket.
• Pull the manifold straight off the compressor (do not pry hard).
• Immediately cap the open lines and compressor ports using a line caps/plug kit (A/C line caps).
• Remove and discard the old O-rings from the line manifold.
• Torque on install (manifold retaining bolt): Torque to 12 N·m (9 ft-lbs)

Step 6: Remove the A/C compressor

• Support the compressor with one hand and remove the mounting bolts using a 12mm socket and 3/8" drive ratchet.
• Lower the compressor out from the bottom area (splash shield off gives working room).
• Torque on install (compressor mounting bolts): Torque to 22 N·m (16 ft-lbs)

Step 7: Set compressor oil amount (critical)

• Drain the old compressor oil into a clean container (tip and rotate the compressor by hand).
• Measure the amount drained, then add the same amount of fresh PAG A/C compressor oil (Honda-compatible) to the new compressor (unless the new unit includes specific pre-fill instructions).
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Too much oil reduces cooling and can damage parts.

Step 8: Install the new compressor

• Position the new compressor and start mounting bolts by hand to avoid cross-threading.
• Tighten using a 12mm socket, then final-tighten with a 3/8" drive torque wrench (10–80 N·m range).
• Torque to 22 N·m (16 ft-lbs)

Step 9: Reconnect refrigerant lines with new O-rings

• Install new O-rings on the manifold fitting.
• Lightly coat the O-rings with a small amount of PAG A/C compressor oil (Honda-compatible) so they don’t tear during assembly.
• Seat the manifold squarely, install the retaining bolt using a 10mm socket, then torque with a 3/8" drive torque wrench (10–80 N·m range).
• Torque to 12 N·m (9 ft-lbs)

Step 10: Reinstall the belt

• Route the belt correctly, rotate the tensioner with a 14mm socket, and slip the belt back onto the A/C compressor pulley.
• Visually confirm the belt is fully seated in every pulley groove.

Step 11: Reinstall splash shield and reconnect battery

• Reinstall the under cover using the flat trim clip tool and 10mm socket.
• Reconnect the negative battery cable using a 10mm socket.

Step 12: Evacuate and recharge the A/C system

• Connect the manifold gauge set for R-134a.
• Pull vacuum with the vacuum pump (A/C) (specialty) for at least 30 minutes (longer is better if the system was open).
• Close valves and confirm it holds vacuum (no leak) for 10–15 minutes.
• Recharge by weight using a refrigerant scale (specialty) to the exact amount shown on the under-hood A/C label.

---

✅ After Repair

• Start the engine and turn A/C on MAX; confirm the compressor engages and the radiator fans run.
• Check for leaks at the compressor manifold area using the manifold gauge set for R-134a readings and a careful visual inspection.
• Verify vent temperature drops and is stable at idle.
• If cooling is poor, stop and re-check charge amount by weight—“pressure charging” often ends wrong.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$2,000 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C equipment)

You Save: $400-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
