🔧 Focus - A/C Compressor Replacement

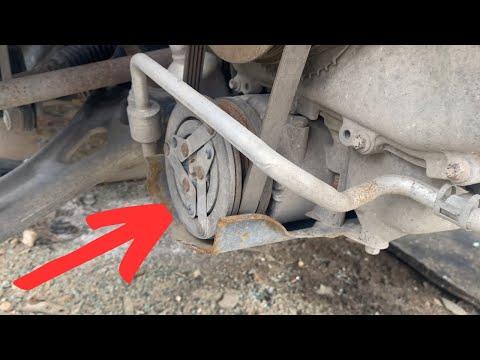

On your Focus, the A/C compressor is bolted to the engine and connected to the refrigerant lines. Replacing it requires safely recovering the refrigerant (it’s under high pressure), swapping the compressor, then evacuating and recharging the system to the exact spec.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is high-pressure and can cause frostbite/blindness—do not loosen A/C lines unless the system is professionally recovered.
• ⚠️ Do not vent refrigerant to the air; recovery is required.
• ⚠️ Keep hands/tools clear of the belt drive; work with engine OFF and key away.
• ⚠️ Support the car on jack stands; never rely on a jack alone.
• 🔋 Disconnect the negative battery cable before unplugging the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set (8mm–15mm)
• 3/8" ratchet
• 3/8" torque wrench (10–80 Nm range)
• Serpentine belt tool (specialty)
• A/C line disconnect tool set (specialty)
• Trim clip remover
• Flathead screwdriver
• Drain pan
• Shop rags
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Scan tool with Ford HVAC PIDs (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct for your Focus) - Qty: 1
• A/C compressor clutch/control connector pigtail (if damaged) - Qty: 1
• A/C line O-ring set (R-134a compatible) - Qty: 1
• Receiver/drier or accumulator (if serviced separately on your Focus) - Qty: 1
• PAG oil (Ford-spec for your Focus A/C system) - Qty: 1
• R-134a refrigerant (charge to under-hood label spec) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered before you start disassembly.
• Quick questions so I give you the exact, trim-correct steps/torques:
• ❓ Is your Focus an automatic (PowerShift) or manual?
• ❓ Will you have A/C evac/recharge equipment (vacuum pump + gauges + scale), or are you doing the mechanical swap and a shop will evacuate/recharge?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm refrigerant is recovered

• Do not open any A/C line until a shop has recovered the refrigerant from your Focus.
• Recovery must happen before loosening lines.

Step 2: Disconnect battery and raise the front

• Use an 8mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Use a floor jack (rated 3-ton minimum) and set the car on jack stands (rated 3-ton minimum).
• Use wheel chocks to keep the car from rolling.

Step 3: Remove lower shields/splash panel to access the compressor

• Use a trim clip remover and 8mm socket to remove the underbody splash shield fasteners.
• Keep clips/screws organized for reassembly.

Step 4: Remove serpentine belt from the compressor

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a quick belt-routing photo first.

Step 5: Unplug the compressor electrical connector

• Use a flathead screwdriver to carefully release the connector lock, then unplug it.

Step 6: Disconnect the A/C lines at the compressor

• Place a drain pan under the compressor and use shop rags to catch any oil.
• Use the appropriate metric socket to remove the line retaining fasteners.
• Use an A/C line disconnect tool set (specialty) if your Focus uses quick-connect fittings.
• Immediately cap/cover open lines to keep moisture out.

Step 7: Remove the compressor mounting bolts and compressor

• Support the compressor by hand and use a metric socket with a 3/8" ratchet to remove the mounting bolts.
• Lower and remove the compressor carefully without stressing nearby hoses/wiring.
• Torque specs depend on your transmission/access layout; I’ll provide the exact bolt torques once you answer the two questions above.

Step 8: Prepare and install the new compressor

• Replace all disturbed seals using the A/C line O-ring set (R-134a compatible).
• Lightly lubricate new O-rings with the correct PAG oil before installation.
• Install the compressor and hand-start all bolts to avoid cross-threading.
• Tighten bolts using a 3/8" torque wrench to the correct spec (provided after your answers).

Step 9: Reconnect A/C lines and electrical connector

• Reconnect the A/C lines and tighten fasteners using a 3/8" torque wrench to the correct spec (provided after your answers).
• Reconnect the compressor electrical connector until it clicks.

Step 10: Reinstall belt and shields

• Use the serpentine belt tool (specialty) to reinstall the belt.
• Reinstall the splash shield using the trim clip remover and 8mm socket.

Step 11: Evacuate, leak-check, and recharge

• Connect the A/C manifold gauge set (specialty) and pull vacuum with the vacuum pump (specialty).
• Verify it holds vacuum (leak check), then recharge by weight using a refrigerant scale (specialty) to the exact under-hood label specification.
• If a shop is doing evac/recharge, drive there with A/C OFF.

---

✅ After Repair

• Reconnect the battery using an 8mm socket.
• Start the engine and verify the belt tracks correctly (no squeal/walk).
• Run A/C on MAX and verify vent temperature drops and compressor engages smoothly.
• Use a scan tool with Ford HVAC PIDs (specialty) to check for HVAC/A/C related faults and confirm pressure readings look normal.
• If the old compressor failed internally, consider flushing and replacing the receiver/drier to prevent repeat failure.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$2,000 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $750-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
