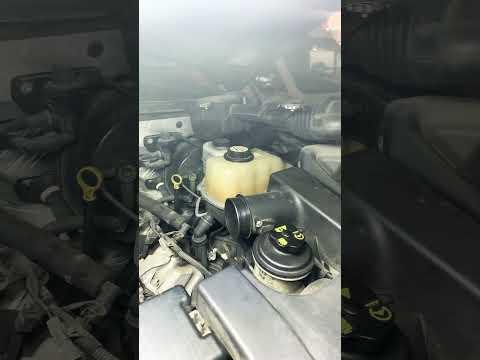

🔧 Expedition - A/C Compressor Replacement

Replacing the A/C compressor on your Expedition involves safely recovering the refrigerant, removing the drive belt, swapping the compressor and seals, then evacuating and recharging the system to the exact spec. The exact refrigerant amount, oil amount, and some hardware/line routing vary depending on whether your Expedition has rear A/C and what failed.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with approved equipment before opening any A/C line; do not vent refrigerant.
• ⚠️ Wear eye protection—refrigerant/oil can cause severe frostbite and eye injury.
• ⚠️ Keep hands/tools clear of the belt drive; let the engine cool before working near the turbo/charge pipes.
• ⚠️ Disconnect the negative battery cable if you’ll unplug compressor wiring or work near the starter/alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• Socket set (8mm-21mm)
• Torx bit set (T20-T40)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Line plug/cap kit
• A/C line spring-lock disconnect tool set (specialty)
• Torque wrench (10-150 ft-lbs)
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring seal kit - Qty: 1
• PAG A/C compressor oil (Ford-spec) - Qty: 1
• R-134a refrigerant (system-spec amount) - Qty: As required
• A/C accumulator or receiver/drier - Qty: 1 (recommended if system was opened or compressor failed internally)
• A/C orifice tube or expansion device - Qty: 1 (recommended if debris is found)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully before working near the front accessory drive.
• Have the refrigerant professionally recovered, or use an approved refrigerant recovery machine (specialty) (a machine that pulls refrigerant into a storage tank).
• Two quick questions so I can give you the correct spec steps:
  • Does your Expedition have rear A/C (rear climate controls/roof vents), or front A/C only?
  • Did the compressor seize/make metal noise (possible debris), or is it a quiet failure like a leak/clutch issue?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the system is empty (refrigerant recovered)

• Use an A/C manifold gauge set (specialty) on the high/low service ports to confirm both sides read ~0 psi before opening any line.
• If pressure is present, stop and recover refrigerant using a refrigerant recovery machine (specialty).

Step 2: Disconnect battery and raise the front (as needed)

• Use a 10mm socket to disconnect the negative battery cable.
• Use a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum) to safely support the front if access from below is needed.

Step 3: Remove the splash shield/air deflectors for access

• Use a socket set (8mm-21mm) and trim clip removal tool to remove the lower splash shield fasteners.
• Set fasteners aside in a tray so none are lost.

Step 4: Remove the serpentine belt from the compressor

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Snap a photo of belt routing first.

Step 5: Disconnect the compressor electrical connector

• Use a pick tool (from a trim clip removal tool kit if included) to release the lock tab, then unplug the compressor connector.
• Inspect the connector for oil saturation (a sign of leaks).

Step 6: Disconnect the A/C lines at the compressor

• Place rags under the connection to catch oil.
• Use an A/C line spring-lock disconnect tool set (specialty) if your line uses spring-lock style couplers; otherwise use the appropriate socket set (8mm-21mm) for the manifold/block bolts.
• Immediately cap the open lines using a line plug/cap kit to keep moisture out.
• Remove and discard old O-rings; install new O-rings from the A/C compressor manifold O-ring seal kit lubricated with the correct PAG A/C compressor oil.

Step 7: Remove the A/C compressor mounting bolts and compressor

• Support the compressor by hand.
• Use the correct size from your socket set (8mm-21mm) to remove the compressor mounting bolts.
• Lower the compressor out carefully—do not bend A/C lines.
• Torque spec note: The exact mounting/manifold bolt torques vary by build/configuration; reply to the two questions above and I’ll give you the correct Ford torque values for your Expedition.

Step 8: Add the correct amount of PAG oil to the new compressor

• Drain and measure oil from the old compressor into a marked container.
• Add the same measured amount of new PAG A/C compressor oil (Ford-spec) into the new compressor unless Ford procedure for your configuration specifies otherwise.
• Hand-rotate the compressor hub a few turns to distribute oil.

Step 9: Install the new compressor and reconnect lines

• Position the new compressor and start all mounting bolts by hand.
• Use a torque wrench (10-150 ft-lbs) to tighten fasteners to Ford spec (I’ll provide the exact numbers once you confirm rear A/C and failure type).
• Reconnect the A/C lines with new O-rings; tighten to Ford spec.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall belt and shields

• Use a serpentine belt tool (specialty) to reinstall the belt, following the belt routing.
• Reinstall the splash shield using your socket set (8mm-21mm) and trim clip removal tool.

Step 11: Evacuate (vacuum) and recharge the A/C system

• Use an A/C manifold gauge set (specialty) and vacuum pump (specialty) to pull vacuum and remove air/moisture.
• Verify the system holds vacuum (no leaks).
• Recharge by weight using a refrigerant scale (specialty) with R-134a refrigerant to the exact under-hood label specification.

---

✅ After Repair

• Start the engine and set A/C to MAX; confirm the compressor engages and vent temps drop.
• Check for leaks at the compressor/manifold connections (look for fresh oil).
• Confirm radiator fans cycle normally with A/C on.
• If cooling is weak or pressures are abnormal, stop and re-check charge amount and for restrictions/debris.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor)

DIY Cost: $350-$1,200 (parts only)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
