🔧 Edge - A/C Compressor Replacement

Replacing the A/C compressor on your Edge is part mechanical (removing the belt and compressor) and part A/C system service (recovering and recharging refrigerant). The refrigerant type and the service procedure depend on what’s listed on your under-hood A/C label.

Difficulty Level: Advanced | Estimated Time: 2-4 hours (plus evac/recharge time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is high-pressure and can cause frostbite/blindness—do not loosen A/C lines unless the system has been professionally recovered.
• ⚠️ Venting refrigerant to the air is unsafe and illegal—use an A/C recovery machine.
• ⚠️ Keep hands/clothes away from the belt path; do not run the engine with tools near pulleys.
• ⚠️ Let the engine cool before working near the turbo/engine bay components.
• ⚠️ Disconnect the negative battery cable if you’ll unplug the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm–15mm)
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Serpentine belt tool or long 3/8" breaker bar
• Trim clip removal tool
• Pick set
• A/C line disconnect tool set (specialty)
• A/C manifold gauge set (specialty)
• Refrigerant recovery/recycle/recharge machine (specialty)
• Vacuum pump (specialty)
• UV leak light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring seals (connection seals) - Qty: 1 set
• A/C refrigerant (type per under-hood label) - Qty: as required
• A/C compressor oil (type/viscosity per under-hood label) - Qty: as required
• Receiver/drier or accumulator (if serviced separately on your Edge) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Plan for A/C service: the system must be recovered and later vacuumed/recharged using proper equipment.
• Disconnect the negative battery cable using a 10mm socket if you’ll unplug any A/C electrical connectors.
• Two quick questions so I can give exact, correct steps for your Edge:
  • What refrigerant is listed on the under-hood A/C label: R-134a or R-1234yf?
  • Will you be using an A/C machine (recover/vacuum/recharge) yourself, or will a shop handle the evac/recharge and you’re doing only the mechanical swap?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use a refrigerant recovery/recycle/recharge machine (specialty) to recover the system completely before opening any A/C connection.
• If you don’t have this equipment, stop here and have a shop recover the refrigerant first.

Step 2: Raise and support the front of the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jack point.
• Support with jack stands (rated 3-ton minimum) and keep wheel chocks in place.

Step 3: Remove the lower splash shield (if equipped)

• Remove fasteners using a metric socket set (8mm–15mm) and a trim clip removal tool.
• Set hardware aside in order. Phone photo helps on reassembly.

Step 4: Remove serpentine belt from the A/C compressor

• Rotate the belt tensioner using a serpentine belt tool or long 3/8" breaker bar.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• Draw the belt routing first.

Step 5: Disconnect the compressor electrical connector

• If needed, disconnect the battery negative cable using a 10mm socket.
• Release the connector lock and unplug it by hand (use a pick set only gently if stuck).

Step 6: Disconnect the A/C lines from the compressor

• Remove any retaining bolts using a metric socket set (8mm–15mm) and 3/8" drive ratchet.
• Separate the lines using an A/C line disconnect tool set (specialty) if your connection style requires it.
• Remove old seals with a pick set and discard them.
• Cap/cover open lines to keep dirt and moisture out.

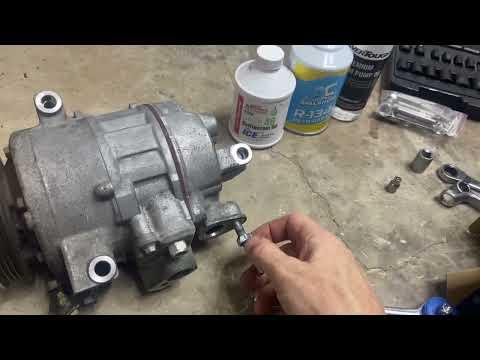

Step 7: Remove the A/C compressor

• Remove compressor mounting bolts using a metric socket set (8mm–15mm) and 3/8" drive ratchet.
• Support the compressor as the last bolt comes out, then lower it out carefully.

Step 8: Prepare and install the new compressor

• Compare the new compressor to the old one (ports/connector/bracket points).
• Add the correct oil type/amount only as required (oil spec is on the A/C label); measure what came out if applicable.
• Install the compressor and hand-thread all bolts first to avoid cross-threading.
• Tighten compressor mounting bolts using a 3/8" drive torque wrench and Torque to OEM spec for your Edge.

Step 9: Install new A/C line seals and reconnect lines

• Install new O-rings from the A/C compressor O-ring seals set.
• Lightly lubricate the O-rings with the correct A/C oil, then reconnect the lines straight-on (do not twist).
• Reinstall retainers/bolts using a metric socket set (8mm–15mm), then use a torque wrench and Torque to OEM spec for your Edge.

Step 10: Reinstall belt and shields

• Route the belt correctly and rotate the tensioner with a serpentine belt tool or long 3/8" breaker bar.
• Reinstall the splash shield using a metric socket set (8mm–15mm) and trim clip removal tool.

Step 11: Evacuate, leak-check, and recharge

• Pull a deep vacuum using a vacuum pump (specialty) and monitor with an A/C manifold gauge set (specialty).
• If vacuum decays, find leaks before charging (use a UV leak light (specialty) if dye is present).
• Recharge by exact weight using the refrigerant recovery/recycle/recharge machine (specialty) per the under-hood label specification.

---

✅ After Repair

• Start the engine and turn A/C on MAX; confirm the clutch/control engages and vent temps drop.
• Listen for belt squeal or knocking and recheck belt routing if anything sounds off.
• Check for leaks around the compressor line connections.
• If cooling is weak, verify charge amount by weight (not just pressures).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,700 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C service equipment)

You Save: $400-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
