🔧 Suburban - A/C Compressor Replacement

Replacing the A/C compressor on your Suburban involves safely recovering the refrigerant, removing the drive belt and A/C lines, swapping the compressor, then vacuuming and recharging the system. This is usually needed when the compressor is seized/noisy, leaking, or has internal failure that stops cooling.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be professionally recovered—do not vent to air (illegal and dangerous).
• ⚠️ Wear safety glasses and gloves; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Work on a cool engine; keep hands clear of the belt drive.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor connector.
• ⚠️ Keep dirt out of A/C lines—cap/plug all openings immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• 1/2" drive torque wrench (40-200 Nm range)
• Serpentine belt tool (long-handle) (specialty)
• Socket set (8mm-15mm)
• Torx bit set (T15-T30)
• Flat-blade screwdriver
• Trim clip removal tool
• Line/flare-nut wrench set
• A/C line plug/cap kit (specialty)
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch/coil connector pigtail (if damaged) - Qty: 1
• A/C line O-ring kit (R-134a compatible) - Qty: 1
• PAG A/C oil (GM-approved for R-134a) - Qty: 1
• R-134a refrigerant - Qty: Per underhood label
• A/C accumulator/receiver-drier (recommended with compressor replacement) - Qty: 1
• Serpentine belt (recommended if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks.
• Have the refrigerant recovered first using a refrigerant recovery machine (many DIYers have a shop do recover/recharge).
• Open the hood and confirm the exact refrigerant charge amount on the underhood A/C label (you’ll recharge by weight later).
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it.
• Tip: Take photos of bolt/line routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (must be done first)

• Connect the A/C manifold gauge set for R-134a to the high/low service ports.
• Use a refrigerant recovery machine (specialty) to recover the refrigerant until the system is empty.
• Verify both gauges read near zero before opening any A/C connection.

Step 2: Remove lower splash shields (as needed for access)

• Raise the front safely using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove fasteners using a socket set (8mm-15mm) and trim clip removal tool.

Step 3: Remove the serpentine belt

• Relieve belt tension using a serpentine belt tool (long-handle) (specialty).
• Slip the belt off the A/C compressor pulley and move it aside.
• Tip: Draw the belt routing before removal.

Step 4: Disconnect the compressor electrical connector

• Unclip the connector using a flat-blade screwdriver (gently release the lock tab).
• Inspect pins for corrosion or melted plastic; replace the pigtail if needed.

Step 5: Remove the A/C lines from the compressor

• Place rags under the compressor to catch residual oil.
• Remove the line/manifold retaining fastener(s) using a socket set (8mm-15mm) or Torx bit set (T15-T30) (varies by fitting).
• Carefully wiggle the manifold/lines free—do not pry on aluminum lines.
• Immediately cap/plug the open lines using an A/C line plug/cap kit (specialty).

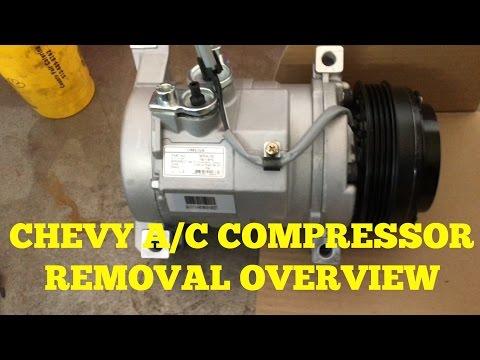

Step 6: Remove the A/C compressor

• Support the compressor by hand from below.
• Remove the compressor mounting bolts using a socket set (8mm-15mm) and 1/2" drive ratchet.
• Lower and remove the compressor from the bracket area.

Step 7: Balance the compressor oil (critical)

• Drain the old compressor oil into a clean measuring container and note the amount (this tells you what left the system).
• Check the new compressor: many ship with oil inside. Drain and measure it as well.
• Add PAG oil so the new compressor has the correct amount for your system per the service information; if you’re matching what came out, add back the measured amount.
• Tip: Too much oil reduces cooling performance.

Step 8: Install new O-rings and install the new compressor

• Replace all disturbed A/C O-rings from your A/C line O-ring kit (R-134a compatible).
• Lightly lubricate O-rings with clean PAG A/C oil before assembly.
• Set the new compressor in place and start all mounting bolts by hand.
• Tighten mounting bolts with a 3/8" drive torque wrench: Torque to 25 Nm (18 ft-lbs).

Step 9: Reinstall the A/C lines

• Remove caps/plugs and carefully seat the manifold/lines squarely into the compressor.
• Install the retaining fastener(s) using a socket set (8mm-15mm) or Torx bit set (T15-T30).
• Tighten the line/manifold fastener(s) with a 3/8" drive torque wrench: Torque to 10 Nm (89 in-lbs).

Step 10: Reconnect the electrical connector and reinstall the belt

• Reconnect the compressor connector until it clicks.
• Reinstall the serpentine belt using the serpentine belt tool (long-handle) (specialty).
• Visually confirm the belt is fully seated on every pulley groove.

Step 11: Reinstall splash shields and lower the vehicle

• Reinstall shields using the socket set (8mm-15mm) and trim clip removal tool.
• Lower the vehicle from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 12: Evacuate (vacuum) and recharge the A/C system

• Reconnect the A/C manifold gauge set for R-134a.
• Pull vacuum using the vacuum pump (A/C) (specialty) for at least 30–45 minutes.
• Close valves and verify it holds vacuum (no rise) before charging; a rise suggests a leak.
• Charge the system by weight using R-134a refrigerant and a refrigerant scale (specialty): use the exact amount on the underhood A/C label.

Step 13: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and turn A/C to MAX; confirm the compressor engages and the center vent air gets cold.
• Check gauge readings on the A/C manifold gauge set for R-134a for normal operation (pressures vary with heat/humidity).
• Inspect for leaks at the compressor fittings (oil residue is a common clue).
• If cooling is weak after a correct charge, stop and diagnose—do not keep adding refrigerant.

---
