🔧 Malibu - A/C Compressor Replacement

Replacing the A/C compressor on your Malibu involves removing the drive belt, swapping the compressor, and then properly evacuating and recharging the A/C system. The most important part is handling the refrigerant correctly and recharging by exact weight so the A/C cools and the compressor survives.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ A/C refrigerant is high-pressure and can cause frostbite and eye injury; never loosen A/C lines on a charged system.
• ⚠️ Your Malibu uses a modern refrigerant (commonly R-1234yf); it is mildly flammable—keep away from sparks, cigarettes, and hot work lights.
• ⚠️ Refrigerant recovery must be done with proper equipment; venting refrigerant to the air is unsafe and illegal.
• ⚠️ Work on a cool engine; the turbo/engine bay can stay hot for a long time.
• ⚠️ Support the car with jack stands before going underneath; never rely on a jack alone.
• 🔌 Disconnect the negative battery cable before unplugging the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set (8mm-15mm)
• Ratchet (3/8")
• Torque wrench (10-100 ft-lbs)
• Serpentine belt tool (specialty)
• Trim clip remover
• Flathead screwdriver
• Pick set
• Line caps/plugs set (A/C)
• R-1234yf manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine for R-1234yf (specialty)
• Refrigerant scale (specialty)
• Electronic leak detector for R-1234yf (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C line O-ring set (R-1234yf compatible) - Qty: 1
• PAG A/C oil (R-1234yf compatible) - Qty: 1
• R-1234yf refrigerant - Qty: As specified on underhood A/C label
• Serpentine belt - Qty: 1 (recommended if worn or oil-soaked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the A/C refrigerant professionally recovered, or use a proper R-1234yf recovery machine before you loosen any A/C line.
• Open the hood and disconnect the battery negative cable using a 10mm socket.
• Locate the underhood A/C label and write down the exact refrigerant type and charge weight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (must be done first)

• Connect the R-1234yf manifold gauge set (specialty) to the high/low service ports.
• Recover the refrigerant using the refrigerant recovery machine for R-1234yf (specialty) until both gauges show no pressure.
• Never crack lines to “see if it’s empty”.

Step 2: Raise the front and remove the lower splash shield

• Lift the front of the car with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield fasteners using a socket set (8mm-15mm), ratchet (3/8"), and a trim clip remover.

Step 3: Remove the serpentine belt from the A/C compressor

• Rotate the belt tensioner using a serpentine belt tool (specialty).
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• If you plan to reuse the belt, note the belt routing before removal.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab using a pick set or flathead screwdriver (gentle pressure).
• Tuck the connector safely out of the way.

Step 5: Disconnect the A/C lines at the compressor

• Place rags under the compressor to catch any residual oil.
• Remove the A/C line retaining bolt(s) using the appropriate size from your socket set (8mm-15mm) and a ratchet (3/8").
• Carefully pull the lines straight out, then immediately cap both the lines and compressor ports using a line caps/plugs set (A/C).
• Remove and discard the old O-rings using a pick set.

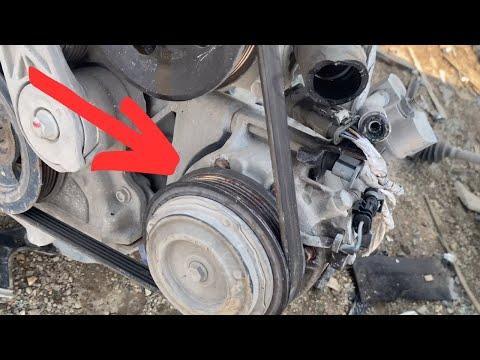

Step 6: Remove the A/C compressor

• Remove the compressor mounting bolts using a socket set (8mm-15mm) and ratchet (3/8").
• Support the compressor with one hand as the last bolt comes out, then remove it from the vehicle.

Step 7: Set the oil amount in the new compressor

• Pour the oil from the old compressor into a measuring container (note the amount). This helps you avoid overfilling.
• Add the correct amount of PAG A/C oil (R-1234yf compatible) to the new compressor.
• Too much oil reduces cooling and can damage parts.
• If additional components were replaced (like condenser/lines), oil amount changes—follow factory service specifications.

Step 8: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Tighten the mounting bolts using a torque wrench (10-100 ft-lbs) and socket set (8mm-15mm).
• Torque to factory specification (GM service information) for compressor mounting bolts.

Step 9: Reconnect the A/C lines with new O-rings

• Install new O-rings from the A/C line O-ring set (R-1234yf compatible).
• Lightly lubricate each O-ring with a drop of PAG A/C oil (R-1234yf compatible) so it doesn’t tear during installation.
• Reconnect the lines straight in (no twisting), install the retaining bolt(s) using a socket set (8mm-15mm) and ratchet (3/8").
• Tighten using a torque wrench (10-100 ft-lbs).
• Torque to factory specification (GM service information) for the A/C line retaining bolt(s).

Step 10: Reinstall the belt and splash shield

• Route the belt correctly and rotate the tensioner with the serpentine belt tool (specialty), then slip the belt back onto the A/C compressor pulley.
• Reinstall the splash shield using a socket set (8mm-15mm), ratchet (3/8"), and trim clip remover.

Step 11: Evacuate the A/C system (vacuum)

• Reconnect the R-1234yf manifold gauge set (specialty).
• Connect the vacuum pump (specialty) and pull vacuum for at least 30–45 minutes.
• Close the valves and watch the gauges for 10–15 minutes; if vacuum rises, you likely have a leak.

Step 12: Recharge by weight and leak-check

• Recharge with R-1234yf refrigerant using a refrigerant scale (specialty) to the exact weight listed on the underhood A/C label.
• Start the engine and command A/C on Max Cool.
• Check for leaks around the compressor and line connections using an electronic leak detector for R-1234yf (specialty).

Step 13: Reconnect battery and final checks

• Reconnect the negative battery cable using a 10mm socket.
• Verify cold air at the vents and stable A/C operation.

---

✅ After Repair

• Verify the A/C clutch/control operation and that the cooling fans run when A/C is on.
• Recheck for oil/refrigerant leaks at the compressor after a short drive.
• If cooling is weak, the most common causes are incorrect refrigerant weight, air left in the system, or a small O-ring leak.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + recover/recharge)

DIY Cost: $350-$950 (parts only, assuming you already have A/C machines)

You Save: $250-$1,250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
