🔧 Camaro - A/C Compressor Replacement

On your Camaro, replacing the A/C compressor is a bigger job because the refrigerant must be safely recovered (evacuated) with the correct machine before any lines are opened. The exact oil type/amount, refrigerant type, and torque specs depend on whether your system is R-134a or R-1234yf.

Before I can give you the exact step-by-step (with correct oil + torque specs), answer these 2 quick questions:

• ❓ What refrigerant is shown on the under-hood A/C label: R-134a or R-1234yf?
• ❓ Has the system already been professionally recovered (refrigerant removed) with a recovery machine?

Once you reply, I’ll give you the exact, trim-correct procedure.

Difficulty Level: Advanced | Estimated Time: 2-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never crack open A/C lines with refrigerant in the system.
• ⚠️ Refrigerant can freeze skin/eyes; wear eye protection and gloves.
• ⚠️ R-1234yf systems require dedicated equipment; mixing refrigerants can damage the system.
• ⚠️ If the compressor failed internally, debris can spread; the system may need flushing and additional parts.
• ⚠️ Battery disconnect is recommended before unplugging compressor wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• Socket set (metric)
• Torque wrench (10–200 Nm range)
• Serpentine belt tool (specialty)
• A/C manifold gauge set (R-134a or R-1234yf type)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• Trim clip removal tool
• Pick tool set
• Line plug kit

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutchless control valve (if serviced separately) - Qty: 1
• A/C compressor O-ring kit - Qty: 1
• Receiver drier or accumulator (system-dependent) - Qty: 1
• Expansion valve or orifice tube (system-dependent) - Qty: 1
• A/C refrigerant (R-134a or R-1234yf as labeled) - Qty: 1 full charge
• A/C compressor oil (correct spec for refrigerant type) - Qty: 1 bottle
• Serpentine belt (optional if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, chock the rear wheels, and let the engine cool.
• Have the refrigerant recovered before disconnecting any A/C lines.
• Disconnect the negative battery cable using the correct socket once the car is safely supported.
• Plan for new O-rings on every opened A/C connection; never reuse old ones.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm refrigerant type and recover the system

• Read the under-hood A/C label to confirm R-134a or R-1234yf.
• Use a refrigerant recovery machine (specialty) to remove all refrigerant from the system.
• Recovery is required for safety and legality.

Step 2: Raise the front and remove needed lower covers

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove splash shields/undertray fasteners using a trim clip removal tool and socket set (metric).

Step 3: Remove the serpentine belt from the compressor

• Relieve belt tension using a serpentine belt tool (specialty).
• Slip the belt off the compressor pulley and move it aside.

Step 4: Disconnect electrical connectors at the compressor

• Unplug the compressor connector(s) using a pick tool set as needed to release locks.

Step 5: Disconnect the A/C lines from the compressor

• Remove the line retaining fastener(s) using a socket set (metric).
• Carefully separate the lines, then cap/plug openings using a line plug kit.
• Remove and discard old seals using a pick tool set.

Step 6: Remove the compressor from its bracket

• Remove compressor mounting bolts using a socket set (metric) and ratchet.
• Support the compressor as the last bolt comes out and lower it out of the engine bay.

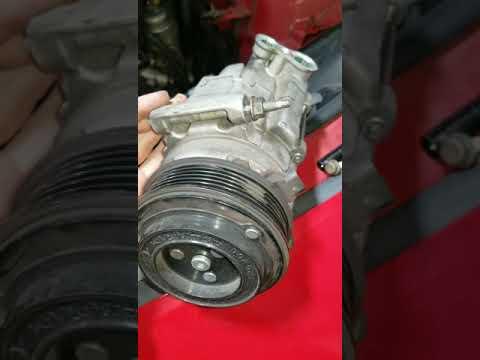

Step 7: Prepare and install the new compressor

• Verify the new compressor matches the old one (ports, connector, mounting ears).
• Add the correct A/C oil type and amount for your refrigerant system.
• Install the compressor and start bolts by hand, then tighten using a torque wrench to factory spec.

Step 8: Reconnect A/C lines with new O-rings

• Install new O-rings from the A/C compressor O-ring kit.
• Reinstall line fasteners using a torque wrench to factory spec.

Step 9: Reinstall belt, shields, and lower the car

• Route the belt correctly and apply tension using the serpentine belt tool (specialty).
• Reinstall undertray/splash shields using a trim clip removal tool and socket set (metric).
• Lower the vehicle from the jack stands using the floor jack.

Step 10: Vacuum and recharge the A/C system

• Pull vacuum using an A/C vacuum pump (specialty) and A/C manifold gauge set.
• Verify it holds vacuum (leak check), then recharge by weight using a refrigerant scale (specialty).

---

✅ After Repair

• Start the engine and turn A/C on MAX; confirm the compressor engages and vents blow cold.
• Check for leaks at all disturbed fittings using the A/C manifold gauge set.
• If cooling is weak or pressures look abnormal, stop and recheck oil amount, charge weight, and seals.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
