🔧 A/C Compressor - Replacement

On your Camry, the A/C compressor is an electric hybrid compressor, so this job involves both refrigerant service and high-voltage precautions. The system must be evacuated and recharged properly after installation, and the compressor oil amount must be correct for hybrid use.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• High-voltage hybrid system present. Do not service the orange HV cables unless the system is disabled properly.
• Refrigerant must be recovered with approved equipment before any lines are opened.
• Wear eye protection and gloves. Refrigerant can cause frostbite.
• Do not run the A/C compressor dry. Use the correct hybrid A/C compressor oil amount.
• Battery disconnect and HV shutdown are required before compressor removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Ratchet
• Extensions
• 10mm socket
• 12mm socket
• 14mm socket
• Torque wrench
• Trim panel tool
• Line wrench set
• Refrigerant recovery/recharge machine (specialty)
• Vacuum pump (specialty)
• Safety glasses
• Nitrile gloves
• Drain pan
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-rings and seals kit - Qty: 1
• Hybrid A/C compressor oil - Qty: 1
• Receiver drier or desiccant element - Qty: 1
• R-1234yf refrigerant - Qty: 1 service fill

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant with approved A/C service equipment before opening the system.
• Disable the hybrid system and disconnect the 12V battery before touching the compressor area.
• Wait the specified time after HV shutdown before unplugging any hybrid-related connectors.
• Keep dirt out of the A/C lines.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disable power

• Use a refrigerant recovery machine to remove the refrigerant from the A/C system.
• Disconnect the 12V battery using a 10mm socket.
• Disable the hybrid high-voltage system per service procedure before unplugging the compressor.
• Never skip refrigerant recovery.

Step 2: Remove access components

• Use a trim panel tool and 10mm socket to remove any lower covers, splash shields, or underbody panels blocking access.
• Set fasteners aside in order so they go back in the same spots.

Step 3: Disconnect compressor electrical connector and A/C lines

• Use your hands and a line wrench set as needed to disconnect the refrigerant lines.
• Remove the electrical connector from the compressor.
• Cap or cover the open lines immediately to keep moisture out.
• Cleanliness matters here.

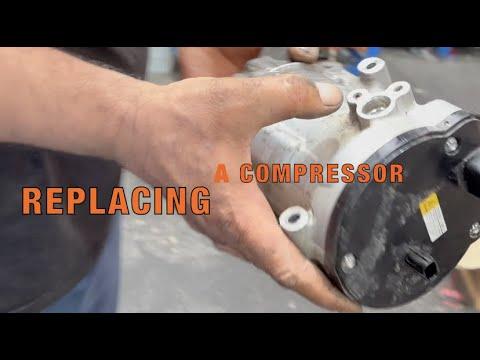

Step 4: Remove the compressor

• Use a 14mm socket and ratchet to remove the compressor mounting bolts.
• Support the compressor as you remove the last bolt, then lower it out carefully.
• If equipped with a bracket or nearby brace, remove it with the appropriate 12mm socket or 14mm socket.

Step 5: Prepare the new compressor

• Add the correct amount of hybrid A/C compressor oil to the new compressor.
• Replace all O-rings with new ones and lightly lubricate them with clean compressor oil.
• Transfer any mounting hardware or fittings only if the new part requires it.

Step 6: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Use a 14mm socket and torque wrench to tighten the compressor bolts.
• Torque to 25 Nm (18 ft-lbs) for the main compressor mounting bolts.
• Reconnect the refrigerant lines and tighten the fittings to the proper service-manual torque.
• Reconnect the electrical connector fully until it locks.

Step 7: Reinstall covers and restore power

• Reinstall any splash shields or covers using the 10mm socket.
• Reconnect the 12V battery with the 10mm socket.
• Restore the hybrid system only after all connectors and lines are secured.

Step 8: Evacuate and recharge the system

• Use a vacuum pump (specialty) to evacuate the system for at least 30 minutes.
• Check for leaks. The system should hold vacuum before charging.
• Recharge with the exact refrigerant amount specified for your Camry using a refrigerant recovery/recharge machine (specialty).

---

✅ After Repair

• Start the vehicle and turn the A/C on max.
• Check for cool air at the vents.
• Inspect compressor area and line connections for leaks.
• Listen for unusual noise from the compressor.
• If the A/C does not cool properly, recheck refrigerant charge and electrical connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $1,300-$2,300 (parts + labor)

DIY Cost: $450-$900 (parts only)

You Save: $850-$1,400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
