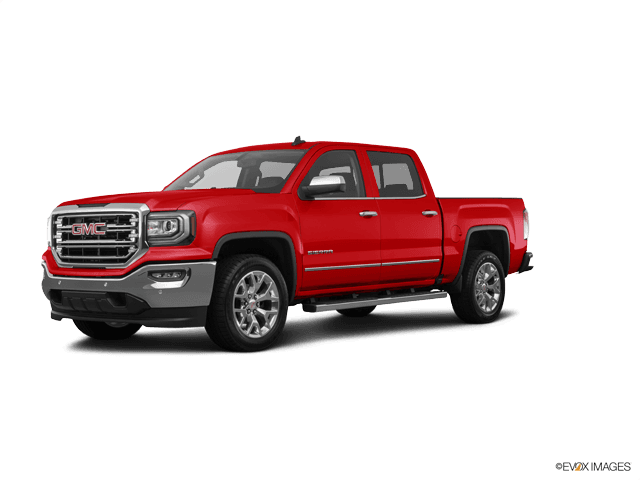

🔧 Sierra 1500 - A/C Compressor Replacement

Replacing the A/C compressor on your Sierra 1500 involves safely recovering the refrigerant, removing the drive belt and compressor, replacing the sealing O-rings, and then vacuuming and recharging the system to spec. This is not just “bolt-on”—the refrigerant handling and correct oil/recharge amount are critical to avoid compressor failure.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—recover it with proper equipment (or have a shop recover/charge it).
• ⚠️ A/C lines and components can be under high pressure even with the engine off.
• ⚠️ Keep hands/tools clear of the belt drive path; remove the key and keep it away.
• ⚠️ Wear safety glasses and gloves—refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Metric socket set (8mm-15mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Serpentine belt tool (specialty)
• Torque wrench (10-150 ft-lbs range)
• A/C line disconnect tool set (specialty)
• Trim clip remover
• Flat blade screwdriver
• Catch pan
• Shop rags
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold seal O-ring set - Qty: 1
• PAG A/C compressor oil (GM-approved spec for your system) - Qty: 1
• R-134a refrigerant (system charge per under-hood label) - Qty: 1
• Receiver drier / accumulator (if specified with compressor replacement) - Qty: 1
• Orifice tube (if specified with compressor replacement) - Qty: 1
• Serpentine belt (optional if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks.
• Plan for refrigerant recovery: either use a recovery machine or have a shop recover the refrigerant before you start disassembly.
• Disconnect the negative battery cable using a socket/wrench before unplugging A/C electrical connectors.
• Locate the under-hood A/C label and confirm the refrigerant type and factory charge amount—you must recharge to that exact spec.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm system specs and recover the refrigerant

• Find the under-hood A/C label and note the refrigerant type and charge amount.
• Connect your A/C manifold gauge set for R-134a (specialty) and use a refrigerant recovery machine (specialty) to recover the refrigerant.
• If you don’t have recovery equipment, stop here and have a shop recover the refrigerant, then continue the mechanical steps after it’s empty.

Step 2: Disconnect the battery

• Use a metric socket set (8mm-15mm) and 3/8" drive ratchet to disconnect the negative battery cable.
• Tuck the cable aside so it can’t spring back to the terminal.

Step 3: Raise and support the truck (if needed for access)

• Use a floor jack (rated 3-ton minimum) at the proper lift point and set the frame on jack stands (rated 3-ton minimum).
• Keep a catch pan and shop rags ready—some oil may drip from A/C fittings.

Step 4: Remove any splash shields/air deflectors blocking access

• Use a trim clip remover and flat blade screwdriver for clips, and a metric socket set (8mm-15mm) with 3/8" drive ratchet for bolts.
• Set hardware aside in a tray so it doesn’t get lost.

Step 5: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) or 1/2" drive breaker bar to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Tip: Take a photo of belt routing first.

Step 6: Unplug the A/C compressor electrical connector

• Use a flat blade screwdriver carefully (if needed) to release the connector lock tab.
• Do not pull on the wires—pull on the connector body.

Step 7: Disconnect the refrigerant lines from the compressor

• Place a catch pan under the compressor and wrap the fitting area with shop rags.
• Use the correct A/C line disconnect tool set (specialty) if your line style requires it, and use your metric socket set (8mm-15mm) with 3/8" drive ratchet to remove the line/manifold retaining bolt(s).
• Remove the line block/manifold from the compressor and immediately cover/plug open lines to keep moisture out.
• Remove and discard the old O-rings; do not reuse them.

Step 8: Remove the A/C compressor from its bracket

• Support the compressor by hand and use a metric socket set (8mm-15mm) with 3/8" drive ratchet to remove the compressor mounting bolts.
• Lower the compressor out carefully without bending nearby lines.

Step 9: Prepare the new compressor (oil and seals)

• Install new seals from the A/C compressor manifold seal O-ring set.
• Lightly lubricate O-rings with clean PAG A/C compressor oil (GM-approved spec for your system) so they don’t pinch on assembly.
• If your new compressor is not pre-filled, add the correct oil amount for your exact system configuration (this is a spec-based step—using the wrong amount can damage the compressor).

Step 10: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Use a torque wrench (10-150 ft-lbs range) to tighten fasteners to GM service-manual specifications: Torque to OEM spec.

Step 11: Reconnect the refrigerant lines with new O-rings

• Seat the line block/manifold squarely against the compressor.
• Use a metric socket set (8mm-15mm) with 3/8" drive ratchet to install the retaining bolt(s), then tighten with a torque wrench (10-150 ft-lbs range): Torque to OEM spec.

Step 12: Reconnect the compressor electrical connector

• Push the connector in until it clicks and the lock is fully seated.

Step 13: Reinstall the serpentine belt

• Route the belt correctly and use the serpentine belt tool (specialty) or 1/2" drive breaker bar to rotate the tensioner and slip the belt onto the A/C compressor pulley.
• Visually confirm the belt is fully seated in every pulley groove.

Step 14: Reinstall shields/deflectors and lower the truck

• Use the trim clip remover, flat blade screwdriver, and metric socket set (8mm-15mm) with 3/8" drive ratchet to reinstall panels and hardware.
• Lower the truck safely using the floor jack (rated 3-ton minimum).

Step 15: Evacuate and recharge the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty) and pull vacuum using a vacuum pump (specialty) to remove air/moisture.
• Verify the system holds vacuum (a quick leak check).
• Recharge with R-134a refrigerant (system charge per under-hood label) using proper equipment; charge must match the label exactly.

---

✅ After Repair

• Start the engine and set HVAC to MAX A/C; confirm the compressor engages and cooling is steady.
• Check for leaks at the compressor manifold/fittings (look for oily residue).
• Verify belt tracking—belt should run centered and quiet.
• If cooling is weak or the compressor is noisy, shut it off and recheck oil amount, charge amount, and leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
