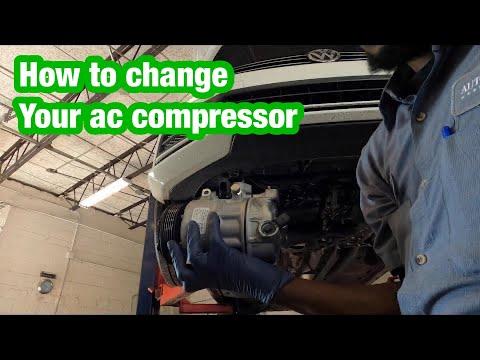

🔧 AC Compressor - Replacement

The AC compressor on your Jetta sits low on the engine and is driven by the accessory belt. Replacing it means recovering the refrigerant, removing the belt and compressor, then evacuating and recharging the system after installation.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant professionally recovered before opening the AC system. Do not vent refrigerant.
• Wear safety glasses and gloves. Refrigerant can cause severe eye and skin injury.
• Keep the ignition off while working near the belt and pulley system.
• Disconnect the negative battery cable before removing the compressor electrical connector.
• Replace the receiver/drier or desiccant if the system has been open for any length of time.
• Use an AC vacuum pump and manifold gauge set before recharging the system.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torx bit set
• Triple-square bit set
• Serpentine belt tool
• Torque wrench
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Nitrile gloves
• AC manifold gauge set
• AC vacuum pump
• Drain pan
• Trim panel removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• AC compressor - Qty: 1
• AC compressor seal kit - Qty: 1
• Accessory drive belt - Qty: 1
• Receiver/drier or desiccant cartridge - Qty: 1
• AC system oil - Qty: 1 bottle
• R-134a refrigerant - Qty: 1 service charge

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully.
• Have the refrigerant recovered before disconnecting any AC lines.
• Disconnect the negative battery cable before unplugging the compressor.
• Keep dirt out of the open lines.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Take the vehicle to a proper AC recovery machine and have the refrigerant removed from the system before starting.
• Do not crack open any AC line until the system is empty.

Step 2: Disconnect the battery

• Use a wrench to remove the negative battery cable.
• Move the cable aside so it cannot spring back and touch the post.

Step 3: Raise the front of the vehicle

• Use the floor jack and support the car with jack stands.
• Chock the rear wheels before getting underneath.

Step 4: Remove the lower splash shield

• Use the correct Torx bit and socket set to remove the lower engine cover or splash shield fasteners.
• Set the fasteners aside in order so they go back in the same locations.

Step 5: Remove the accessory drive belt

• Use the serpentine belt tool to release tension from the belt tensioner.
• Slip the belt off the AC compressor pulley and remove it from the engine.
• Take a quick routing photo first.

Step 6: Disconnect the compressor

• Use a trim panel tool or small pick to release the compressor electrical connector lock.
• Use the correct metric socket or triple-square bit to remove the compressor mounting bolts.
• Disconnect the AC line fittings only after confirming the system is fully recovered.

Step 7: Remove the compressor

• Lower the compressor out from underneath the vehicle.
• Keep the open ports capped or covered right away to prevent contamination.

Step 8: Prepare the replacement compressor

• Transfer any required brackets or fittings to the new compressor.
• Lubricate the new O-rings with clean AC system oil before installation.
• Add the correct amount of AC oil to the replacement compressor if it is dry or specified by the service procedure.

Step 9: Install the new compressor

• Position the compressor and start the mounting bolts by hand.
• Use the socket or triple-square bit to tighten the bolts evenly.
• Torque to factory specification.
• Reconnect the electrical connector and AC lines.

Step 10: Reinstall the belt and splash shield

• Use the serpentine belt tool to route the belt back onto the pulleys.
• Confirm the belt sits fully in every pulley groove.
• Reinstall the splash shield with the Torx fasteners.

Step 11: Evacuate and recharge the system

• Connect the AC manifold gauge set and vacuum pump.
• Pull a deep vacuum to remove air and moisture.
• Close the valves and verify the system holds vacuum.
• Recharge with the correct amount of R-134a refrigerant and AC oil.

---

✅ After Repair

• Start the engine and turn the AC on MAX.
• Check that the compressor engages smoothly and the center vents begin cooling.
• Inspect all AC line connections for leaks.
• Listen for belt noise or pulley wobble.
• If cooling is weak, recheck refrigerant charge and look for leaks before driving far.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,800 (parts + labor)

DIY Cost: $350-$800 (parts only)

You Save: $750-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
