🔧 AC Compressor - Replacement

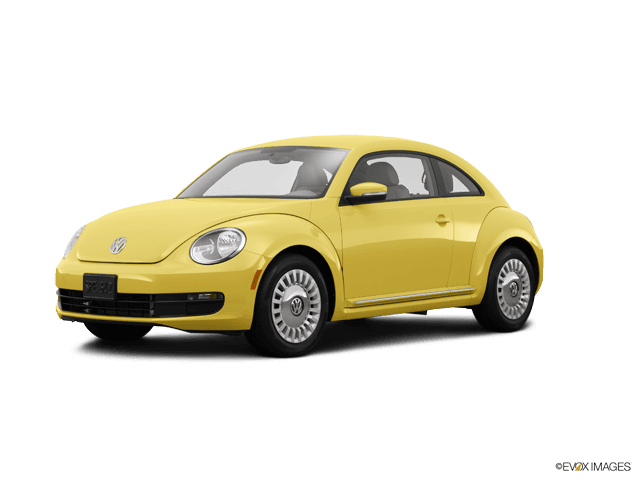

Replacing the AC compressor on your Beetle means recovering the refrigerant, removing the drive belt and related hardware, swapping the compressor, then evacuating and recharging the system. This repair is important because the AC system must stay sealed and clean to avoid damaging the new compressor.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant professionally recovered before opening the AC system. Do not vent refrigerant.
• Wear safety glasses and gloves. Refrigerant and oil can injure skin and eyes.
• Do not run the AC compressor if it has seized or is noisy; this can scatter metal through the system.
• Replace the receiver/drier or desiccant element if the system has been open or contaminated.
• Keep dirt out of the open lines and compressor ports. Contamination can ruin the new compressor.
• Disconnect the negative battery terminal before working near the accessory drive belt and electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 16mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Serpentine belt tool or long-handled wrench
• Trim tool
• AC line disconnect tool
• Oil drain pan
• Funnel
• Vacuum pump (specialty)
• Manifold gauge set (specialty)
• Refrigerant recovery machine (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• AC compressor - Qty: 1
• AC compressor O-rings/seals - Qty: 1 set
• AC compressor oil - Qty: 1 bottle
• Receiver/drier or desiccant element - Qty: 1
• Serpentine belt - Qty: 1
• R-134a refrigerant - Qty: 1 system charge

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant with proper equipment before disconnecting any AC line.
• Disconnect the negative battery terminal.
• If your old compressor failed internally, plan on replacing the receiver/drier and flushing contaminated lines/components as needed.
• Have the system evacuated and recharged after assembly. A vacuum hold test is required before filling.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect battery

• Use a refrigerant recovery machine to remove the AC charge.
• Disconnect the negative battery terminal with a 10mm socket.
• Do not skip refrigerant recovery.

Step 2: Remove access panels and engine cover

• Use a trim tool to remove any lower splash shield fasteners or access covers blocking the compressor area.
• If equipped, lift off the engine cover by hand after releasing its mounts.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool or long-handled wrench to relieve tension on the belt tensioner.
• Slip the belt off the compressor pulley and slowly release the tensioner.
• Inspect the belt. Replace it if cracked, glazed, or contaminated with oil.

Step 4: Disconnect compressor electrical connector and AC lines

• Unplug the compressor electrical connector by hand.
• Use an AC line disconnect tool if needed, then remove the compressor line fasteners with a 13mm socket.
• Cap or tape the open lines right away to keep dirt out.

Step 5: Remove the compressor

• Support the compressor with one hand while removing the mounting bolts with a 13mm socket and ratchet.
• Lower the compressor out carefully. It may still contain oil.
• Drain and measure the old oil if you want to compare contamination or lost oil amount.

Step 6: Prepare the new compressor

• Drain shipping oil from the new compressor if required by the manufacturer.
• Add the correct amount of AC compressor oil to match the system requirement and the amount lost.
• Install new AC compressor O-rings/seals lightly lubricated with clean refrigerant oil.
• Keep the ports capped until the last moment.

Step 7: Install the new compressor

• Position the compressor and start the mounting bolts by hand.
• Tighten the compressor bolts with a 13mm socket and torque wrench to factory spec.
• Reconnect the AC lines and tighten the fittings to factory spec with a torque wrench.
• Reconnect the electrical connector.

Step 8: Reinstall the serpentine belt and covers

• Route the belt correctly using the under-hood belt diagram.
• Use the serpentine belt tool or long-handled wrench to move the tensioner and slip the belt into place.
• Reinstall any shields or covers with the trim tool.

Step 9: Evacuate and recharge the system

• Connect a manifold gauge set and vacuum pump.
• Pull a deep vacuum and verify it holds before charging.
• Recharge with the correct amount of R-134a refrigerant by weight.

Step 10: Test the repair

• Reconnect the battery with a 10mm socket.
• Start the engine and turn the AC on.
• Check for clutch engagement, normal compressor operation, and cold vent air.
• Inspect all line connections for leaks.

---

✅ After Repair

• Verify vent temperature drops steadily after a few minutes.
• Listen for belt squeal, pulley noise, or clicking from the compressor.
• Recheck refrigerant connections for oil seepage or leaks.
• If the old compressor failed internally, monitor system performance closely for the first few days.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$1,800 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
