🔧 A/C Compressor - Replacement

Your A/C compressor is the heart of the air-conditioning system. On your Tundra, replacement means recovering the refrigerant, removing the belt and compressor, then installing the new unit with fresh oil and sealing washers so the system can hold vacuum and cool properly.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Refrigerant must be recovered with proper A/C equipment before opening the system. Do not vent refrigerant.
• Wear safety glasses and gloves. Refrigerant can cause severe frostbite.
• Disconnect the negative battery cable before removing belt-driven components.
• Do not run the compressor dry. Add the correct compressor oil before installation.
• If the old compressor failed internally, the system may need flushing and the condenser may need replacement to prevent repeat failure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• 3/8-inch drive ratchet
• Torque wrench
• Serpentine belt tool
• Drain pan
• Trim clip tool
• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Vacuum pump (specialty)
• A/C manifold gauge set (specialty)
• Refrigerant recovery/recharge machine (specialty)
• O-ring pick

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor oil - Qty: 1 bottle
• A/C compressor manifold line O-rings - Qty: 2
• Serpentine belt - Qty: 1
• Receiver drier/desiccant bag - Qty: 1
• R-134a refrigerant - Qty: 1 system charge
• Replacement sealing washers - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Recover the refrigerant with proper A/C recovery equipment before opening the system.
• Disconnect the negative battery cable.
• Raise the front of the truck if needed for easier access to the belt and compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect power

• Use a certified A/C recovery machine to remove all refrigerant from the system.
• Disconnect the negative battery cable with a 10mm wrench.
• Never open the system under pressure.

Step 2: Remove engine covers and gain access

• Use a trim clip tool and metric socket set to remove any engine cover or intake ducting blocking access to the compressor.
• Set the parts aside in order.

Step 3: Release belt tension

• Use a serpentine belt tool or 3/8-inch drive ratchet on the belt tensioner.
• Rotate the tensioner and slip the belt off the compressor pulley.
• Remove the belt from the engine bay.

Step 4: Remove the compressor electrical connector and refrigerant lines

• Unplug the compressor electrical connector by hand.
• Use a metric socket set to remove the refrigerant line bolts.
• Cap the open lines right away to keep dirt and moisture out.
• Replace the O-rings on reassembly and lightly coat them with clean compressor oil.
• Torque refrigerant line bolts to 9 Nm (80 in-lbs).

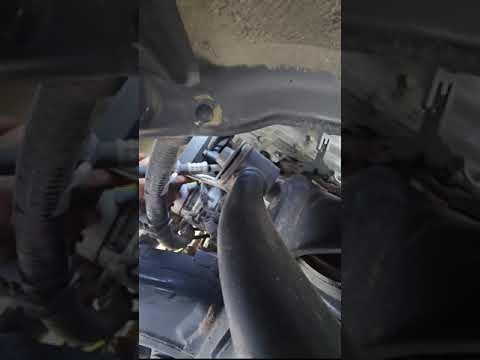

Step 5: Remove the compressor

• Use a metric socket set and 3/8-inch drive ratchet to remove the compressor mounting bolts.
• Support the compressor as you remove the last bolt.
• Lower it out of the engine bay carefully.
• Torque compressor mounting bolts to 29 Nm (21 ft-lbs).

Step 6: Prepare the replacement compressor

• Drain the old compressor oil into a measuring cup so you can compare volume if needed.
• Add the correct amount of fresh compressor oil to the new compressor.
• Rotate the compressor clutch/pulley by hand a few turns to spread the oil.
• Use clean oil only.

Step 7: Install the new compressor

• Set the new compressor in place by hand.
• Install the mounting bolts finger-tight first, then tighten with a torque wrench.
• Reconnect the refrigerant lines with new O-rings and torque the bolts to spec.
• Reconnect the electrical connector.

Step 8: Install the belt and reassemble

• Use the serpentine belt tool to route the belt back onto all pulleys.
• Verify the belt is seated fully in every groove.
• Reinstall any engine covers or intake ducting using the metric socket set.

Step 9: Evacuate and recharge the A/C system

• Use a vacuum pump and A/C manifold gauge set to pull a deep vacuum for at least 30 minutes.
• Let the system sit and verify it holds vacuum.
• Recharge the system with the correct amount of R-134a using a refrigerant recharge machine.
• Use the under-hood label for charge amount.

Step 10: Final check

• Reconnect the negative battery cable with a 10mm wrench.
• Start the engine and turn the A/C on MAX.
• Check for unusual noises, leaks, and proper cold air output.
• Inspect the compressor area and line connections again after the system runs for a few minutes.

---

✅ After Repair

• Verify vent temperature drops steadily after 5-10 minutes.
• Check for oil or refrigerant leaks at the compressor and line fittings.
• Listen for belt squeal or pulley noise.
• If cooling is weak, recheck refrigerant charge and confirm the condenser fan is operating.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,000 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $850-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
