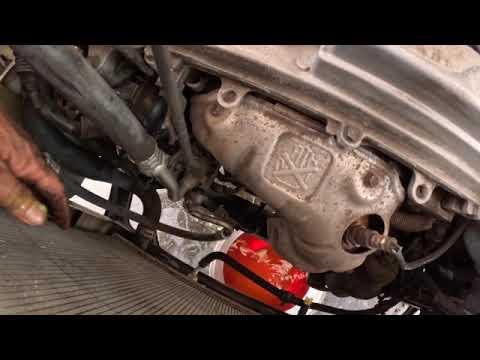

🔧 A/C Compressor - Replacement

The A/C compressor on your Sienna is a sealed refrigerant component, so the system must be professionally recovered before removal. After installation, the system must be evacuated and recharged with the correct refrigerant amount to prevent damage and poor cooling.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• A/C refrigerant can cause severe cold burns and eye injury.
• The refrigerant must be recovered with proper equipment before any lines are opened.
• Wear safety glasses and gloves throughout the repair.
• Do not run the A/C compressor if it failed internally without flushing the system first.
• Disconnect the negative battery cable before starting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Torque wrench
• Serpentine belt tool
• Line wrench set
• Trim clip removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Safety glasses
• Nitrile gloves
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery/recharge machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch/control valve seal kit - Qty: 1
• Receiver drier - Qty: 1
• Expansion valve - Qty: 1
• R-134a refrigerant - Qty: 1 service amount
• PAG A/C compressor oil - Qty: 1 bottle
• Compressor mounting bolts - Qty: 1 set
• O-ring seal kit for A/C lines - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and let the engine cool fully.
• Have the refrigerant recovered before opening any A/C lines.
• Disconnect the negative battery cable.
• Label the A/C lines so they go back in the same position.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect power

• Use a refrigerant recovery machine to remove all R-134a from the system.
• Disconnect the negative battery cable using a 10mm socket.
• Never open the system under pressure.

Step 2: Remove the engine undercover

• Raise the front of the vehicle and support it with jack stands.
• Use a 10mm socket and trim clip removal tool to remove the lower engine splash shield.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner.
• Slip the belt off the compressor pulley and remove it from the engine bay.
• Take a belt routing photo first.

Step 4: Disconnect the A/C lines

• Use a line wrench set to loosen the refrigerant line fittings at the compressor.
• Cap the open lines immediately to keep dirt and moisture out.
• Replace the old O-rings with new ones lubricated with clean PAG oil.

Step 5: Remove the compressor

• Use a 12mm socket and 14mm socket to remove the compressor mounting bolts.
• Support the compressor with one hand as you remove the last bolt.
• Lower the compressor out carefully.

Step 6: Prepare and install the new compressor

• Transfer any brackets or fittings if the replacement unit requires it.
• Add the correct amount of PAG oil to the new compressor if it is dry.
• Install the new compressor and hand-start all bolts first.
• Use a torque wrench to tighten the compressor bolts to 21 Nm (15 ft-lbs).
• Keep fittings clean at all times.

Step 7: Reconnect the A/C lines

• Install new lubricated O-rings on the refrigerant lines.
• Use a line wrench set to tighten the line fittings.
• Torque the line fittings to 12 Nm (106 in-lbs).

Step 8: Reinstall the belt and undercover

• Use the serpentine belt tool to route the belt back over the pulleys.
• Make sure the belt is seated fully in every pulley groove.
• Reinstall the splash shield with a 10mm socket and trim clips.

Step 9: Evacuate and recharge the system

• Use a vacuum pump and A/C manifold gauge set to evacuate the system for at least 30 minutes.
• Hold vacuum and check for leaks before charging.
• Recharge with the exact factory refrigerant amount using a refrigerant recovery/recharge machine.

Step 10: Test the repair

• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and turn the A/C on MAX.
• Check for cold air, belt noise, and refrigerant leaks.
• Verify compressor engagement and stable pressures with the gauge set.

---

✅ After Repair

• Confirm the A/C blows cold at idle and while driving.
• Listen for squealing, grinding, or clicking from the belt drive.
• Recheck the compressor line fittings for leaks after the first test drive.
• If the old compressor failed internally, the condenser and lines may need flushing.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,800 (parts + labor)

DIY Cost: $450-$950 (parts only)

You Save: $650-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
