🔧 A/C Compressor - Replacement

The A/C compressor on your Sequoia sits on the front of the engine and is driven by the serpentine belt. Replacement means safely recovering the refrigerant, removing the belt and compressor, then installing the new unit with fresh sealing washers or O-rings and refilling the system correctly.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Refrigerant must be recovered by an A/C service machine before opening the system. Do not vent refrigerant.
• Wear safety glasses and gloves. Refrigerant can cause serious eye and skin injury.
• Keep dirt out of the open A/C lines. Even small contamination can damage the new compressor.
• Disconnect the negative battery terminal before starting.
• If the compressor failed internally, the system may need line flushing and replacement of the receiver/drier or desiccant bag components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Torque wrench
• Serpentine belt tool
• Line wrench set
• Trim clip tool
• Drain pan
• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands
• A/C manifold gauge set (specialty)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Oil injector (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch relay - Qty: 1
• A/C line O-ring set - Qty: 1
• Receiver/drier or desiccant component - Qty: 1
• Pag A/C compressor oil - Qty: 1 bottle
• R-134a refrigerant - Qty: 1 system charge

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant with proper A/C equipment before disconnecting any lines.
• Disconnect the negative battery terminal.
• Raise the front of the vehicle only if needed for access, then support it with jack stands.
• Replace the relay if the compressor seized or burned up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect battery

• Use a refrigerant recovery machine to evacuate the A/C system completely.
• Use a 10mm socket to disconnect the negative battery terminal.

Step 2: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• Take a belt routing photo first.

Step 3: Gain access to the compressor

• If needed, use a 10mm socket and trim clip tool to remove the front splash shield or lower covers.
• Make room to reach the compressor electrical connector and refrigerant lines.

Step 4: Disconnect the compressor electrical connector

• Release the lock tab and unplug the compressor connector by hand.
• Inspect the connector for heat damage or oil contamination.

Step 5: Disconnect the refrigerant lines

• Use a 12mm socket or line wrench set to remove the A/C line retaining bolts or fittings, depending on the connection style.
• Cap or cover both open lines immediately to keep out moisture and dirt.
• Replace the O-rings with new ones lightly coated in clean A/C oil.

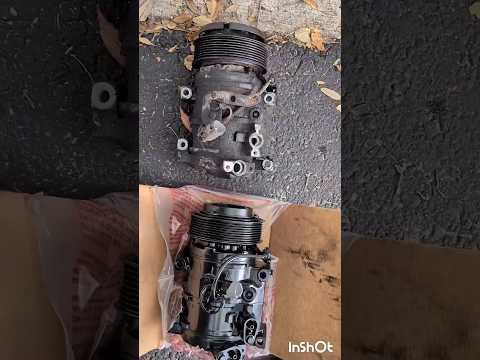

Step 6: Remove the compressor mounting bolts

• Use a 14mm socket and ratchet to remove the compressor mounting bolts.
• Support the compressor with one hand as you remove the last bolt.
• Lift the compressor out of the engine bay.
• Torque to factory specification on installation.

Step 7: Prep the replacement compressor

• Drain and measure the oil from the old compressor if possible.
• Add the correct amount of clean Pag oil to the new compressor before installation.
• Rotate the compressor hub by hand several turns to spread the oil.

Step 8: Install the new compressor

• Set the new compressor in place and start all mounting bolts by hand.
• Use a 14mm socket and torque wrench to tighten the bolts evenly.
• Torque to factory specification.

Step 9: Reconnect the A/C lines and connector

• Install new O-rings on the refrigerant lines.
• Use a line wrench set or 12mm socket to tighten the line fittings/bolts.
• Reconnect the electrical connector until it clicks.
• Torque to factory specification on the line fasteners.

Step 10: Reinstall the belt and covers

• Use the serpentine belt tool to route and reinstall the belt.
• Make sure the belt sits correctly in every pulley groove.
• Reinstall any splash shields or covers with a 10mm socket.

Step 11: Evacuate and recharge the system

• Use an A/C vacuum pump (specialty) and A/C manifold gauge set (specialty) to pull a deep vacuum.
• Hold vacuum and check for leaks before charging.
• Recharge with the exact refrigerant amount listed on the underhood label.

Step 12: Test operation

• Reconnect the battery using a 10mm socket.
• Start the engine and turn the A/C on max cold.
• Check for cold air, unusual noises, and refrigerant leaks.

---

✅ After Repair

• Verify compressor clutch operation and smooth engagement.
• Check vent temperature after a few minutes of idle time.
• Inspect all line connections for oil residue or leaks.
• If the old compressor failed hard, recheck the system for debris issues after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $450-$900 (parts only)

You Save: $750-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
