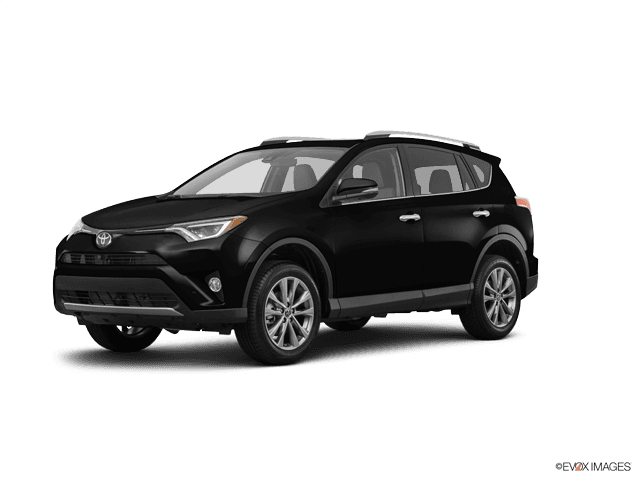

🔧 RAV4 - AC Compressor Replacement

This job means removing the belt-driven AC compressor, replacing the seals and refrigerant oil, then evacuating and recharging the system. On your RAV4, the refrigerant must be recovered before any lines are opened, or the system can be damaged and refrigerant release is unsafe.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant professionally recovered before disconnecting any AC line.
• Do not vent refrigerant to the air.
• Keep hands clear of the belt and pulleys when turning the engine by hand.
• Use eye protection and gloves. Refrigerant and oil can cause frostbite.
• Replace all opened AC O-rings with the correct refrigerant-safe seals.
• Do not run the compressor with the system empty or with the wrong oil amount.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Socket set metric 10mm-14mm
• Ratchet
• Breaker bar
• Torque wrench
• Line wrench set metric
• Serpentine belt tool (specialty)
• AC manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Drain pan
• Trim clip tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• AC compressor - Qty: 1
• AC compressor O-ring set - Qty: 1
• PAG refrigerant oil, correct viscosity for RAV4 AC system - Qty: 1 bottle
• R-134a refrigerant - Qty: 1 system charge
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before starting.
• Have the AC refrigerant recovered by a proper recovery machine before opening the system.
• Label every AC line before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use a certified refrigerant recovery machine to remove all R-134a from the system.
• Do not loosen any AC fittings until the system is empty.

Step 2: Disconnect the battery

• Use a 10mm wrench to disconnect the negative battery cable.
• Set the cable aside so it cannot touch the terminal.

Step 3: Remove the engine cover and access panels

• Use your hands and a trim clip tool if needed to remove the engine cover and any splash shields blocking access.
• Keep the fasteners organized.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool or breaker bar on the belt tensioner to relieve tension.
• Slip the belt off the compressor pulley and remove it.
• Take a photo of the belt routing first.

Step 5: Remove the AC compressor electrical connector and lines

• Unplug the compressor connector by hand.
• Use the correct line wrench if line fittings are tight, then remove the suction and discharge lines.
• Cap the open lines right away to keep dirt out.

Step 6: Remove the compressor

• Use a socket set metric 10mm-14mm and ratchet to remove the compressor mounting bolts.
• Support the compressor with one hand as the last bolt comes out.
• Lower it out carefully.

Step 7: Compare the old and new compressor

• Check that the pulley, connectors, and line ports match.
• Drain the old compressor oil into a clean container and measure what came out.
• Add the same amount of fresh PAG refrigerant oil to the new compressor unless the replacement part instructions state otherwise.

Step 8: Install new O-rings and the new compressor

• Lubricate the new AC compressor O-rings with a small amount of clean refrigerant oil.
• Set the compressor in place and start all bolts by hand.
• Use a torque wrench to tighten the compressor bolts to the factory specification for your RAV4.
• Reconnect the AC lines and tighten the fittings to the factory specification.

Step 9: Reinstall the belt and components

• Use the serpentine belt tool again to move the tensioner.
• Route the belt exactly as it was before.
• Reinstall all shields, clips, and the engine cover.

Step 10: Evacuate and recharge the system

• Connect the AC manifold gauge set and vacuum pump.
• Pull a deep vacuum for at least 30-45 minutes.
• Verify the system holds vacuum with no leak-down.
• Recharge with the correct weight of R-134a refrigerant listed on the under-hood label.

Step 11: Check operation

• Reconnect the battery using a 10mm wrench.
• Start the engine and turn the AC on MAX.
• Check for cold air, unusual noise, and refrigerant leaks.

---

✅ After Repair

• Confirm the compressor clutch engages and disengages normally.
• Check vent temperature after 10 minutes of operation.
• Inspect all line fittings for oil residue, which can signal a leak.
• If cooling is weak, recheck refrigerant charge and system leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $350-$850 (parts only)

You Save: $550-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
