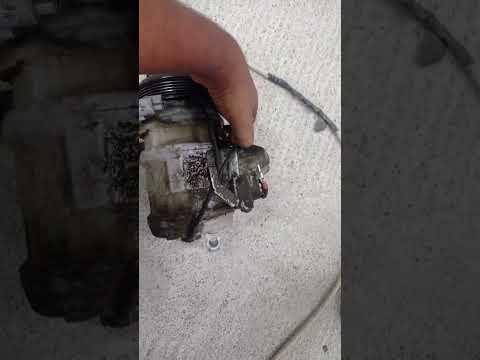

🔧 AC Compressor - Replacement

Your Land Cruiser’s A/C compressor is the heart of the refrigerant system. Replacing it means opening the sealed A/C circuit, so the refrigerant must be professionally recovered first, then the system must be vacuumed and recharged after installation.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Do not vent refrigerant to the air. Have the R-134a recovered with proper equipment before starting.
• The A/C system can contain high pressure, even with the engine off.
• Wear safety glasses and gloves. Refrigerant and oil can injure eyes and skin.
• Disconnect the negative battery cable before removing the compressor.
• If the old compressor failed internally, the system should be flushed and the receiver/drier function in the condenser addressed as needed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Short extension
• Torque wrench
• Serpentine belt tool (specialty)
• Line wrench set
• Drain pan
• Trim clip remover
• Floor jack (rated 3-ton minimum)
• Jack stands
• Safety glasses
• Nitrile gloves
• Vacuum pump
• Manifold gauge set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• AC compressor - Qty: 1
• Compressor O-ring set - Qty: 1
• Receiver/drier or condenser assembly with desiccant function - Qty: 1, if contamination is found
• PAG A/C compressor oil - Qty: 1 bottle
• R-134a refrigerant - Qty: 1 vehicle charge
• Serpentine belt - Qty: 1, if worn or contaminated

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant from the system before any lines are opened.
• Disconnect the negative battery cable.
• If the old compressor seized or scattered debris, plan on flushing the lines and checking for contamination.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect power

• Have the A/C refrigerant professionally recovered before opening the system.
• Use a 10mm socket to disconnect the negative battery cable.
• Never crack A/C lines under pressure.

Step 2: Remove the engine undercover and belt

• Use a 10mm socket and trim clip remover to remove the lower engine cover.
• Use a serpentine belt tool (specialty) to relieve tension and slip the belt off the compressor pulley.
• Inspect the belt for cracks or glazing.

Step 3: Disconnect the compressor electrical connector and lines

• Use your fingers to unplug the compressor electrical connector.
• Use a line wrench set to loosen the refrigerant line fittings at the compressor.
• Cap or cover the open lines immediately to keep dirt out.
• Keep everything surgically clean.

Step 4: Remove the compressor

• Use a 12mm socket and 14mm socket to remove the compressor mounting bolts.
• Support the compressor with one hand while removing the last bolt.
• Lift the compressor out from the bottom or side opening.

Step 5: Transfer oil and install new O-rings

• Drain and measure the oil from the old compressor if possible.
• Add the correct amount of fresh PAG A/C compressor oil to the new compressor.
• Install new lubricated Compressor O-rings on the line fittings.

Step 6: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Use a 12mm socket and 14mm socket to tighten the bolts evenly.
• Torque to 25 Nm (18 ft-lbs) for the compressor mounting bolts.

Step 7: Reconnect lines and electrical connector

• Use a line wrench set to tighten the refrigerant line fittings.
• Torque to 10 Nm (7 ft-lbs) for the A/C line fittings.
• Reconnect the electrical connector until it clicks.

Step 8: Reinstall belt and covers

• Use the serpentine belt tool (specialty) to route the belt back onto the pulleys.
• Install the lower engine cover with a 10mm socket and trim clips.
• Reconnect the negative battery cable with a 10mm socket.

Step 9: Evacuate and recharge the system

• Use a vacuum pump and manifold gauge set to evacuate the A/C system for at least 30 minutes.
• Verify the system holds vacuum before charging.
• Recharge with the correct amount of R-134a refrigerant and the specified oil balance.

---

✅ After Repair

• Start the engine and turn the A/C on max.
• Check for cold air at the vents.
• Inspect all fittings for refrigerant leaks.
• Listen for abnormal compressor noise.
• If the old compressor failed badly, recheck system cleanliness and cooling performance after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,900 (parts + labor)

DIY Cost: $450-$900 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
