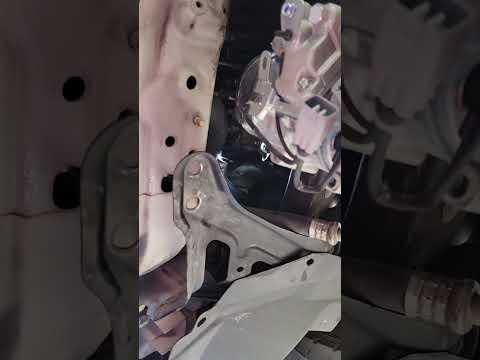

🔧 AC Compressor - Replacement

The A/C compressor on your Highlander is a sealed refrigerant-system component, so the refrigerant must be recovered before removal and the system must be evacuated and recharged after installation. Because this is an AWD V6, access is tight, and the belt-driven compressor also means the serpentine belt and pulley routing must be handled carefully.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Refrigerant can cause frostbite and eye injury; the system must be recovered with proper equipment before opening any A/C line.
• Do not vent refrigerant to the atmosphere.
• Keep dirt out of the open A/C system; contamination can ruin the new compressor.
• Disconnect the negative battery cable before unplugging compressor wiring.
• Use jack stands on level ground if you need access from below.
• If the old compressor failed internally, replace the receiver/drier/desiccant component and flush the lines and condenser as required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric combination wrench set
• Ratchet
• Breaker bar
• Torque wrench
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Drain pan
• Funnel
• O-ring pick
• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• R-134a recovery/recharge equipment (specialty)
• Vacuum pump (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• Compressor oil - Qty: 1 service fill
• A/C line O-ring set - Qty: 1
• Serpentine belt - Qty: 1
• Receiver/drier or desiccant component - Qty: 1
• Refrigerant R-134a - Qty: 1 system charge

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Recover the refrigerant with approved A/C equipment before loosening any lines.
• Disconnect the negative battery cable.
• Have the new compressor oil amount verified for the replacement part before installation.
• Keep replacement O-rings ready and lightly lubricated with the correct A/C oil.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect battery

• Use R-134a recovery/recharge equipment to recover the refrigerant completely.
• Disconnect the negative battery cable with a metric wrench.
• Torque to factory specification when reinstalling the battery terminal.

Step 2: Remove the engine covers and gain access

• Use the trim clip removal tool and metric socket set to remove any covers or splash shields blocking access to the compressor.
• Keep track of all clips and fasteners.

Step 3: Remove the serpentine belt

• Use the serpentine belt tool or breaker bar to relieve tension from the belt tensioner.
• Slip the belt off the compressor pulley and remove it from the engine bay.
• Take a photo of the belt routing first.

Step 4: Disconnect compressor electrical connector and A/C lines

• Use a small pick or trim tool to release the compressor electrical connector lock, then unplug it.
• Use the correct metric socket or wrench to remove the compressor line bolts.
• Cap or cover both open A/C lines immediately to keep moisture and dirt out.
• Replace the O-rings on the line fittings.

Step 5: Remove the compressor

• Use the metric socket set and ratchet to remove the compressor mounting bolts.
• Support the compressor as the last bolt comes out.
• Lift the compressor out from below or through the access path available on your Highlander.

Step 6: Prepare the new compressor

• Drain and measure any shipping oil from the new compressor if instructed by the part supplier.
• Add the correct amount and type of A/C oil for the system.
• Rotate the compressor hub by hand several times to distribute oil.
• Do not overfill the compressor with oil.

Step 7: Install the new compressor

• Set the compressor in place and hand-start all mounting bolts.
• Use the torque wrench to tighten the mounting bolts to factory specification.
• Install new lubricated O-rings on the A/C line fittings.
• Reconnect the refrigerant lines and tighten the line bolts to factory specification.
• Reconnect the electrical connector until it clicks.

Step 8: Reinstall the belt and covers

• Use the serpentine belt tool to route the new or reused belt correctly over all pulleys.
• Make sure the belt sits fully in every pulley groove.
• Reinstall any covers or splash shields with the metric socket set and trim tool.

Step 9: Evacuate and recharge the A/C system

• Use a vacuum pump to evacuate the system for at least 30 minutes.
• Verify the system holds vacuum before charging.
• Recharge the system with the exact specified amount of R-134a using recovery/recharge equipment.
• Torque to factory specification for any service port caps or fittings if removed.

---

✅ After Repair

• Start the engine and turn the A/C on MAX.
• Check that the compressor engages smoothly and the center vents get cold.
• Inspect all line connections for oil residue or refrigerant leaks.
• Listen for belt noise or compressor knocking.
• If cooling is weak, the charge amount must be verified again with proper A/C equipment.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$2,000 (parts + labor)

DIY Cost: $450-$900 (parts only)

You Save: $650-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
