🔧 Crosstrek - A/C Compressor Replacement

Replacing the A/C compressor means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then vacuuming and recharging the A/C system. This is done when the compressor leaks, seizes, makes loud noise, or won’t build pressure.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your A/C uses R-134a (typical for your Crosstrek).

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is regulated: recover/evacuate properly—do not vent to air.
• ⚠️ Wear eye protection and gloves; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Work on a cool engine; keep hands clear of the belt path.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor clutch/connector.
• ⚠️ Keep the A/C lines capped/plugged; moisture in the system can ruin the new compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• Serpentine belt tool or 3/8" breaker bar
• Trim clip remover
• Flathead screwdriver
• Pick tool
• Line caps/plugs kit (specialty)
• Refrigerant manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV leak light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

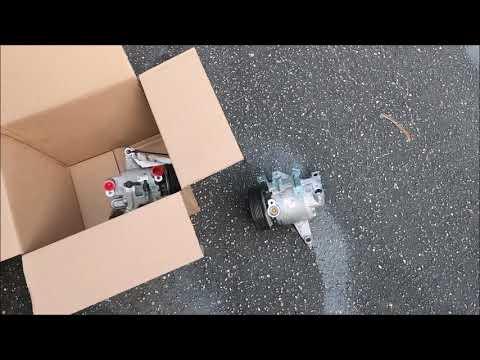

• A/C compressor - Qty: 1
• A/C line O-ring set (HNBR green) - Qty: 1 set
• PAG A/C compressor oil (ND-OIL 8 / PAG 46 equivalent) - Qty: 1 bottle
• R-134a refrigerant - Qty: ~1.10 lb (0.50 kg)
• Serpentine drive belt - Qty: 1
• A/C receiver/drier or condenser with integrated drier (if equipped) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Recover the refrigerant using a refrigerant recovery machine; this safely pulls refrigerant into a tank.
• Disconnect the battery using a 10mm socket (negative terminal first).
• Raise the front and support with jack stands under proper lift points.
• Have line caps/plugs ready so the A/C lines are never left open.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a trim clip remover and flathead screwdriver to remove the plastic clips and screws.
• Set the shield and clips aside in a tray so nothing gets lost.

Step 2: Remove the serpentine drive belt

• Use a serpentine belt tool or 3/8" breaker bar on the belt tensioner to rotate it and relieve belt tension.
• Slip the belt off one pulley, then slowly release the tensioner.
• Tip: Take a photo of belt routing.

Step 3: Unplug the compressor electrical connector

• Locate the compressor connector at the compressor body.
• Release the lock tab with a flathead screwdriver and unplug it.

Step 4: Disconnect the A/C refrigerant lines at the compressor

• Place a drain pan under the compressor area (a little oil may drip out).
• Use a 10mm socket to remove the line retaining bolt(s) at the compressor manifold block.
• Gently wiggle and pull the lines free (do not pry hard).
• Immediately install line caps/plugs on the lines and compressor ports.

Step 5: Remove the compressor mounting bolts and compressor

• Support the compressor with one hand.
• Use a 12mm socket and 3/8" ratchet to remove the compressor mounting bolts.
• Lower the compressor out from the bottom.

Step 6: Match oil amount (critical for compressor life)

• Pour oil from the old compressor into a measuring container (if any drains out).
• Add the same amount of fresh PAG A/C compressor oil into the new compressor.
• If the new compressor is pre-filled, adjust by draining/adding so the amount matches what came out.
• Tip: Too much oil reduces cooling.

Step 7: Replace O-rings and install the new compressor

• Use a pick tool to remove old O-rings from the line ends.
• Lightly coat new O-rings with PAG A/C compressor oil and install them.
• Position the new compressor and hand-start the mounting bolts.
• Tighten using a 3/8" torque wrench: Torque to 37 Nm (27 ft-lbs).

Step 8: Reconnect the refrigerant lines and electrical connector

• Remove the caps/plugs and immediately insert the lines into the compressor manifold.
• Install the retaining bolt(s) using a 10mm socket.
• Tighten using a 3/8" torque wrench: Torque to 18 Nm (13 ft-lbs).
• Reconnect the compressor electrical connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt correctly on all pulleys.
• Use a serpentine belt tool or 3/8" breaker bar to rotate the tensioner and slide the belt on.
• Visually confirm the belt ribs sit fully in every pulley groove.

Step 10: Vacuum the A/C system (removes air and moisture)

• Connect the refrigerant manifold gauge set for R-134a to the high and low service ports.
• Connect the center hose to the vacuum pump.
• Pull vacuum for at least 30–45 minutes until stable deep vacuum is reached.
• Close the manifold valves and confirm it holds vacuum for 10–15 minutes (no leak).

Step 11: Recharge with the correct refrigerant mass

• Place refrigerant on a refrigerant scale to measure the exact amount.
• Charge the system with R-134a: ~1.10 lb (0.50 kg) through the low side per your charging setup.
• Do not overcharge; exact weight matters more than gauge pressure.

Step 12: Reinstall splash shield and reconnect the battery

• Reinstall the splash shield using a trim clip remover and flathead screwdriver.
• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and set HVAC to MAX A/C, recirculate, and high fan.
• Confirm the compressor engages and the center vent air gets cold.
• Inspect all compressor line connections for oil residue (a common sign of a leak).
• Use a UV leak light to check for dye/leaks if performance is weak.
• Listen for belt squeal and re-check belt seating if you hear chirping.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,700 (parts + labor + evac/recharge)

DIY Cost: $300-$850 (parts only, if you already have A/C equipment)

You Save: $400-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
