🔧 1500 - A/C Compressor Replacement

Replacing the A/C compressor on your 1500 involves safely recovering the refrigerant, removing the drive belt, swapping the compressor, then vacuuming and recharging the system. Most repeat failures happen when debris, moisture, or the wrong oil amount is left in the system, so cleanliness and correct recharge are critical.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your 1500 uses R-134a refrigerant (common for this model year).

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment—do not vent to the air.
• ⚠️ Wear safety glasses and gloves; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Keep fingers/tools clear of the serpentine belt path.
• ⚠️ Work on a cool engine; hot parts can burn you.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor electrical connector.
• ⚠️ Cap/plug A/C lines immediately to keep moisture and dirt out.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10–100 ft-lbs range)
• Socket set (8mm–15mm)
• Serpentine belt tool or 1/2" breaker bar (long handle)
• Line wrench set (A/C fittings)
• Trim clip removal tool
• Flathead screwdriver
• Needle-nose pliers
• Shop towels
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV leak light (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor clutch electrical connector pigtail (if damaged) - Qty: 1
• A/C line O-ring set (HNBR A/C O-rings) - Qty: 1
• PAG A/C compressor oil (PAG 46) - Qty: 1 bottle
• A/C receiver/drier or desiccant service kit (if serviceable on your system) - Qty: 1
• R-134a refrigerant - Qty: As required by underhood label
• Serpentine belt (optional, if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧰 Let the engine cool fully.
• 🧰 Recover the refrigerant using a refrigerant recovery machine (a machine that pulls refrigerant into a storage tank). Many DIYers have a shop recover it first.
• 🧰 Disconnect the negative battery cable using a 10mm socket.
• 🧰 Find the A/C charge amount on the underhood label; you’ll recharge by weight using a refrigerant scale.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant (required)

• Connect the A/C manifold gauge set (specialty) to the high/low service ports (this tool lets you read and control A/C pressures).
• Use a refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• Do not loosen A/C lines until pressures are zero.

Step 2: Raise the front safely (if needed for access)

• Lift the front with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Use wheel chocks at the rear wheels.

Step 3: Remove splash shields/inner liner as needed

• Remove fasteners with a trim clip removal tool and 8mm socket.
• Set all clips/screws aside in a tray so nothing gets lost.

Step 4: Remove the serpentine belt from the compressor

• Rotate the belt tensioner using a serpentine belt tool or 1/2" breaker bar.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• Take a quick photo of belt routing.

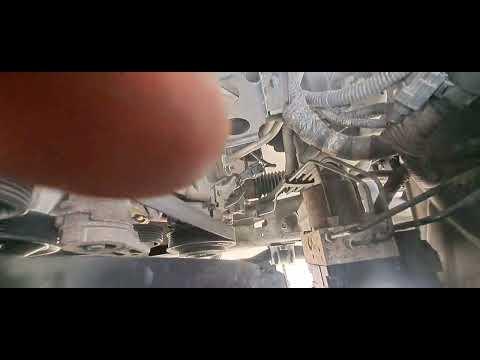

Step 5: Disconnect the compressor electrical connector

• Unplug the compressor clutch/control connector using a flathead screwdriver to gently release the tab if needed.
• Inspect for melted pins/corrosion; replace with the connector pigtail if damaged.

Step 6: Disconnect the A/C lines from the compressor

• Place shop towels under the fittings to catch any oil.
• Loosen the line fasteners/fittings using a line wrench set (A/C fittings) (a line wrench grips more sides of the nut to prevent rounding).
• Immediately cap/plug the open lines and compressor ports using shop towels to keep dirt/moisture out.
• Remove and discard old O-rings with needle-nose pliers.

Step 7: Remove the A/C compressor

• Support the compressor by hand.
• Remove compressor mounting bolts using a 13mm socket and 3/8" drive ratchet.
• Remove the compressor from the bracket and lower it out carefully.
• Install bolts later and Torque to 23 Nm (17 ft-lbs).

Step 8: Prep the new compressor (oil balancing)

• Check if the new compressor is shipped with oil; drain and measure the oil from the old compressor into a clean container using shop towels to prevent spills.
• Add the same amount of fresh PAG A/C compressor oil (PAG 46) into the new compressor (unless the compressor instructions specify a different procedure).
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Too much oil can reduce cooling.

Step 9: Install the new compressor

• Set the compressor into place and hand-start the mounting bolts.
• Tighten with a 13mm socket and torque wrench.
• Torque to 23 Nm (17 ft-lbs).

Step 10: Install new O-rings and reconnect A/C lines

• Lightly coat new O-rings with clean PAG A/C compressor oil (PAG 46).
• Install the new O-rings onto the line ends.
• Reconnect the lines and tighten using a line wrench set (A/C fittings).
• Torque to 20 Nm (15 ft-lbs) for the compressor line/manifold fasteners.
• Never reuse old A/C O-rings.

Step 11: Reconnect the electrical connector

• Plug the connector back in until it clicks.

Step 12: Reinstall the serpentine belt

• Route the belt correctly and rotate the tensioner using a serpentine belt tool or 1/2" breaker bar.
• Slip the belt onto the compressor pulley and release the tensioner slowly.
• Inspect that the belt is seated in every pulley groove.

Step 13: Reinstall splash shields/liners

• Reinstall fasteners using a trim clip removal tool and 8mm socket.

Step 14: Vacuum the system (moisture removal)

• Reconnect the A/C manifold gauge set (specialty).
• Hook up the vacuum pump (specialty) and pull vacuum for at least 30–45 minutes.
• Close the valves and verify the system holds vacuum for 10–15 minutes (a quick leak check).
• Vacuum removes moisture that forms damaging acid.

Step 15: Recharge by weight and verify operation

• Add refrigerant through the manifold set using a refrigerant scale (specialty) to the exact underhood-label amount.
• Reconnect the battery negative cable using a 10mm socket and Torque to 6 Nm (53 in-lbs).
• Start the engine, set A/C to MAX, and verify vent temperature drop and stable pressures.
• If equipped, use a UV leak light (optional) to check fittings for dye/oil signs.

---

✅ After Repair

• 🧪 Confirm the compressor cycles normally and there are no abnormal noises.
• 🧪 Check for leaks at the compressor fittings and service ports after a short drive.
• 🧪 Recheck belt alignment; a belt off one groove will shred quickly.
• 🧪 If cooling is weak, stop running the A/C and recheck charge amount by weight and for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + recover/recharge)

DIY Cost: $250-$750 (parts only, assuming you have/rent A/C equipment)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
