🔧 Outlander Sport - A/C Compressor Replacement

Replacing the A/C compressor on your Outlander Sport requires recovering the refrigerant, removing the drive belt and compressor, replacing the sealing O-rings, then evacuating (vacuuming) and recharging the system by weight. This matters because any air/moisture or incorrect oil amount can quickly damage the new compressor and reduce cooling.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your Outlander Sport uses R-134a refrigerant and a belt-driven compressor (typical for this model).

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant—recover it with approved equipment.
• ⚠️ Wear eye/hand protection; refrigerant can cause frostbite and blindness.
• ⚠️ Keep all A/C ports and lines capped; moisture contamination can ruin the new compressor.
• ⚠️ Disconnect the battery negative cable before unplugging A/C electrical connectors.
• ⚠️ Support the vehicle on jack stands; never work under a jack-only vehicle.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-17mm)
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• 3/8" drive torque wrench
• Serpentine belt tool or 14mm wrench
• Metric combination wrench set (10mm-17mm)
• Line/flare-nut wrench set (10mm-17mm)
• Trim clip removal tool
• Flat-blade screwdriver
• Fender cover
• Drain pan
• Measuring cup (graduated)
• Clean caps/plugs for A/C lines
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)
• Thermometer (vent thermometer)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (with clutch/control valve as equipped) - Qty: 1
• A/C compressor O-ring set (suction and discharge line) - Qty: 1
• PAG A/C oil (vehicle-correct type/viscosity) - Qty: 1
• Receiver/drier or desiccant element (if serviced separately) - Qty: 1
• R-134a refrigerant (charge to under-hood label) - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Recover the refrigerant using a refrigerant recovery machine (specialty). This machine pulls refrigerant into a sealed tank for safe handling.
• Check the under-hood A/C label for the exact refrigerant type and charge amount (you will recharge by weight).
• Put a fender cover on to protect paint.
• Disconnect the battery negative terminal using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the system is empty (recovered)

• Use an A/C manifold gauge set for R-134a (specialty) to confirm the system is at 0 psi after recovery.
• If pressure remains, stop—do not loosen any A/C fittings.

Step 2: Raise and support the front of the vehicle

• Lift using a floor jack (rated 3-ton minimum).
• Support with jack stands (rated 3-ton minimum) at safe lift points.

Step 3: Remove the lower engine cover/splash shield (if equipped)

• Remove push clips with a trim clip removal tool.
• Remove bolts with a metric socket set (10mm-12mm) and 3/8" drive ratchet.

Step 4: Remove the drive belt from the compressor pulley

• Rotate the belt tensioner using a serpentine belt tool or 14mm wrench.
• Slip the belt off the compressor pulley, then slowly release the tensioner.
• Tip: Take a clear belt routing photo.

Step 5: Disconnect the compressor electrical connector

• Release the lock tab by hand; use a flat-blade screwdriver only if needed.
• Tip: Never pull on the wires.

Step 6: Disconnect the A/C suction and discharge lines

• Place a drain pan under the compressor to catch oil drips.
• Remove the line retaining fasteners using the correct metric socket and 3/8" drive ratchet.
• If a fitting uses a nut on the line, use a line/flare-nut wrench (this grips more sides and helps prevent rounding).
• Immediately cap the open lines and compressor ports using clean caps/plugs for A/C lines.

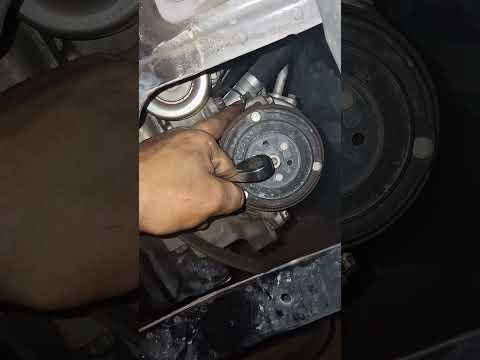

Step 7: Remove the compressor mounting bolts and compressor

• Support the compressor with one hand.
• Remove mounting bolts using a metric socket set (12mm-14mm), 3/8" drive extensions, and 3/8" drive ratchet.
• Remove the compressor from below.

Step 8: Set the compressor oil amount (critical)

• Drain the old compressor oil into a measuring cup (graduated) over the drain pan.
• Drain any shipping oil from the new compressor into the measuring cup.
• Add PAG A/C oil so the new compressor has the correct total oil amount per Mitsubishi procedure and the amount removed.
• Tip: Too much oil = warmer vent temps.

Step 9: Install new O-rings and reinstall the compressor

• Remove old O-rings from the line ends carefully using a flat-blade screwdriver (do not scratch sealing surfaces).
• Lightly coat new O-rings with PAG A/C oil and install them on the lines.
• Position the compressor and hand-start all mounting bolts.
• Tighten mounting bolts using a 3/8" drive torque wrench to Torque to OEM specification.

Step 10: Reconnect A/C lines and electrical connector

• Reconnect the suction and discharge lines, ensuring they seat squarely.
• Tighten fasteners using a 3/8" drive torque wrench to Torque to OEM specification.
• Reconnect the compressor electrical connector until it clicks.

Step 11: Reinstall the belt and splash shield

• Route and install the belt using a serpentine belt tool or 14mm wrench.
• Confirm the belt ribs sit fully in every pulley groove.
• Reinstall the splash shield using a trim clip removal tool and metric socket set (10mm-12mm).

Step 12: Evacuate (vacuum) the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty) and vacuum pump (specialty).
• Pull vacuum to fully evacuate air/moisture, then verify it holds vacuum (a quick leak check).

Step 13: Recharge by weight

• Charge refrigerant using a refrigerant scale (specialty) to the exact amount listed on the under-hood label.
• Do not “charge by pressure” alone; temperature and humidity change pressures.

Step 14: Reconnect battery and lower the vehicle

• Reconnect the negative terminal using a 10mm socket.
• Lower the vehicle using the floor jack and remove jack stands.

---

✅ After Repair

• Start the engine and set A/C to max cold and recirculation; blower on high.
• Confirm compressor engagement and stable cooling.
• Use a thermometer (vent thermometer) to check center vent temperature after a few minutes.
• Inspect fittings for oil residue (a common sign of a leak).
• If cooling is weak or pressures are abnormal, stop and recheck for leaks and correct charge amount.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$1,800 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
