🔧 Outlander - A/C Compressor Replacement

Replacing the A/C compressor on your Outlander means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then pulling a deep vacuum and recharging the system. The biggest “gotcha” is the refrigerant handling—A/C systems must be properly recovered and recharged to avoid damage and injury.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: you’ll use the under-hood A/C label for exact refrigerant charge amount.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant can cause frostbite and eye injury—do not vent A/C refrigerant to the air.
• ⚠️ The engine bay has pinch points—keep hands clear of the belt path.
• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Disconnect the negative battery cable before unplugging compressor wiring.
• ⚠️ Keep dirt out of A/C lines—cap/plug openings immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Extensions (3" and 6")
• Serpentine belt tool or 14mm wrench
• Flat trim clip tool
• Phillips screwdriver #2
• Line/flare-nut wrench set (10mm-17mm)
• O-ring pick set
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Recovery machine (specialty)
• Shop rags
• Drain pan

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (with clutch/pulley, if applicable) - Qty: 1
• A/C compressor O-ring set - Qty: 1
• PAG A/C compressor oil (PAG 46 equivalent) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood label
• Serpentine drive belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and locate the A/C charge label (usually on the radiator support/underside of hood) so you know the exact refrigerant amount for recharging.
• Have the refrigerant professionally recovered with an A/C recovery machine before opening any A/C line.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect your A/C manifold gauge set (specialty) to the high/low service ports.
• Use a recovery machine (specialty) to recover all refrigerant from the system.
• Never loosen lines with pressure present.

Step 2: Raise the front and remove the splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Remove the lower engine/splash shield using a flat trim clip tool, Phillips screwdriver #2, and 10mm socket.

Step 3: Remove the serpentine (drive) belt

• Relieve belt tension using a serpentine belt tool or 14mm wrench on the belt tensioner.
• Slip the belt off the A/C compressor pulley and remove the belt from the front of the engine.
• Take a quick photo of belt routing.

Step 4: Unplug the compressor electrical connector

• Locate the compressor connector and release the lock tab.
• Unplug it by hand; if tight, use a pick tool gently to lift the lock (a pick is a small hook tool for releasing clips).

Step 5: Remove the refrigerant lines from the compressor

• Place a drain pan under the compressor area.
• Remove the suction/discharge line retaining bolt(s) using a 12mm socket (some fasteners may be 10mm depending on line block style).
• Carefully wiggle the line block free; do not pry hard on the aluminum lines.
• Immediately cap/plug the open lines and compressor ports with clean rags.
• When reinstalling line block fasteners: Torque to 9.8 Nm (87 in-lbs).

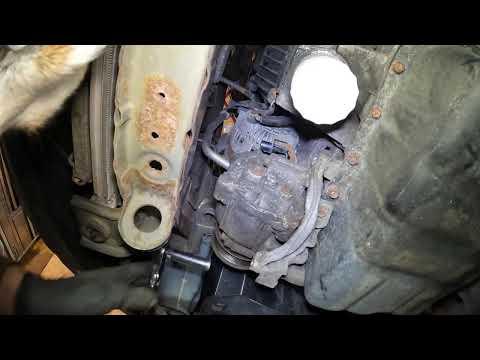

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a 14mm socket, ratchet, and extension.
• Lower and remove the compressor from underneath.
• When reinstalling mounting bolts: Torque to 25 Nm (18 ft-lbs).

Step 7: Match and set the compressor oil (critical)

• Drain the old compressor oil into a measuring container over your drain pan by rotating the compressor hub by hand while tipping it.
• Drain the new compressor (some ship pre-filled) and measure what comes out.
• Add PAG oil to the new compressor so the amount in the new compressor matches the amount removed from the old compressor (use PAG A/C compressor oil (PAG 46 equivalent)).
• Too much oil reduces cooling.

Step 8: Replace O-rings and reinstall the lines

• Remove old O-rings using an O-ring pick set (a small hook used to lift seals without scratching metal).
• Install new O-rings from the A/C compressor O-ring set.
• Lightly coat O-rings with clean PAG A/C compressor oil before assembly.
• Reinstall the line block and tighten using a torque wrench: Torque to 9.8 Nm (87 in-lbs).

Step 9: Reinstall the compressor and belt

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a torque wrench: Torque to 25 Nm (18 ft-lbs).
• Plug in the compressor electrical connector.
• Reinstall the serpentine belt using a serpentine belt tool or 14mm wrench and confirm the belt is seated in every pulley groove.

Step 10: Reinstall the splash shield and lower the vehicle

• Reinstall the splash shield using a 10mm socket, Phillips screwdriver #2, and trim clip tool.
• Lower the vehicle off the jack stands using the floor jack.

Step 11: Evacuate and recharge the A/C system

• Reconnect the negative battery cable using a 10mm socket.
• Connect the A/C manifold gauge set (specialty) and pull vacuum with a vacuum pump (specialty) for 30–45 minutes.
• Close valves and confirm the system holds vacuum for 10–15 minutes (no major leaks).
• Recharge with R-134a refrigerant using a refrigerant scale (specialty) to the exact amount listed on the under-hood label.

---

✅ After Repair

• Start the engine and set HVAC to MAX A/C, recirculation ON, blower HIGH.
• Verify the compressor clutch engages (if equipped) and the center vent air gets cold.
• Check for leaks at the compressor line block area using soapy water or an electronic leak detector.
• Recheck belt tracking—if it walks off a pulley, shut off the engine immediately and reseat the belt.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$1,800 (parts + labor)

DIY Cost: $350-$700 (parts only, plus A/C evac/recharge if outsourced)

You Save: $300-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
