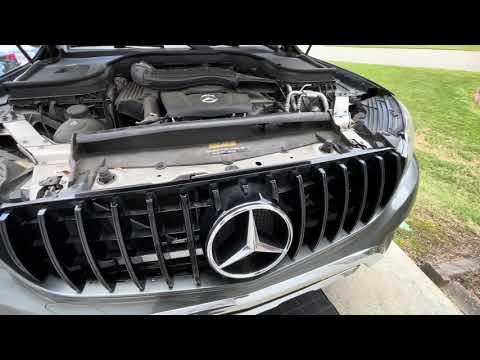

🔧 GLC300 - A/C Compressor Replacement

Replacing the A/C compressor means safely recovering the refrigerant, removing the drive belt and refrigerant lines, swapping the compressor, then pulling a deep vacuum and recharging to the exact factory amount. This repair is part mechanical and part A/C-service work, and doing it wrong can damage the new compressor quickly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: R-134a system; final charge/oil per under-hood label.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air; recover it with approved equipment.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Let the engine cool; the turbo/exhaust area gets extremely hot.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor connector.
• ⚠️ Keep dirt out of A/C lines; cap/plug every opened connection immediately.
• ⚠️ If the old compressor failed internally (metal debris), you must address contamination or the new compressor can fail fast.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• E-Torx socket set (E10-E14)
• Torx bit set (T25-T30)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Serpentine belt tool (long handle) (specialty)
• Trim clip removal tool
• Pick set
• Line caps/plugs kit
• Shop rags
• UV dye flashlight (optional)
• A/C manifold gauge set for R-134a
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant charging scale (specialty)
• A/C flush kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct configuration for GLC300) - Qty: 1
• A/C compressor oil (PAG oil type per factory spec) - Qty: 1
• A/C line O-ring set (HNBR, R-134a compatible) - Qty: 1
• Receiver/drier or desiccant element (if serviceable) - Qty: 1
• Serpentine belt (recommended if worn/cracked) - Qty: 1
• R-134a refrigerant (charge amount per under-hood label) - Qty: 1
• A/C system flush solvent (only if compressor failed internally) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Recover the refrigerant using an A/C recovery machine (this pulls refrigerant into a tank).
• Disconnect the negative battery terminal using a 10mm socket.
• Plan to replace all opened-connection O-rings; do not reuse old ones.
• If the old compressor seized or shed metal, plan contamination repair (flush/replace components) before installing the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set for R-134a to the high/low service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• Once recovered, disconnect the gauges and reinstall the service port caps by hand.

Step 2: Raise the front and remove the lower covers

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield using a Torx T25-T30 bit and 8mm socket (fasteners vary by panel).
• Use a trim clip removal tool for plastic push-clips.

Step 3: Remove the serpentine belt from the A/C compressor

• Note the belt routing (take a clear photo).
• Use a serpentine belt tool (long handle) (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Tip: Keep fingers clear of pinch points.

Step 4: Disconnect the compressor electrical connector

• Locate the compressor connector.
• Release the lock tab carefully using a pick set, then unplug the connector by hand.

Step 5: Remove the refrigerant lines from the compressor

• Place shop rags under the compressor to catch oil residue.
• Remove the A/C line retaining fastener(s) using the correct E-Torx socket or 10mm socket (hardware varies by build).
• Gently wiggle the lines free; do not pry hard on aluminum tubes.
• Immediately cap the open lines and compressor ports using a line caps/plugs kit.
• Remove and discard old O-rings with a pick set.

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using the correct E-Torx socket and a 3/8" drive ratchet.
• Lower the compressor out carefully (it’s heavier than it looks).
• Install bolts finger-tight first on reassembly, then Torque to Mercedes-Benz specification using a torque wrench.

Step 7: Prepare the new compressor (oil handling)

• Drain and measure oil from the old compressor into a clean container (if possible).
• Match oil quantity in the new compressor using A/C compressor oil (PAG oil type per factory spec).
• Slowly rotate the compressor hub by hand several turns to distribute oil (do not force it).
• Tip: Too much oil reduces cooling.

Step 8: Replace O-rings and reconnect the A/C lines

• Install new O-rings from the A/C line O-ring set on each connection.
• Lightly lubricate O-rings with A/C compressor oil before assembly.
• Reconnect the lines squarely (no twisting) and reinstall the retaining fastener using the correct E-Torx socket or 10mm socket.
• Torque to Mercedes-Benz specification using a torque wrench.

Step 9: Reinstall the belt and lower covers

• Route the belt correctly and use the serpentine belt tool (long handle) (specialty) to set tension and slip the belt back on.
• Confirm the belt is centered on every pulley.
• Reinstall the splash shield using a Torx T25-T30 bit and 8mm socket.

Step 10: Evacuate (vacuum) and recharge the A/C system

• Reconnect the A/C manifold gauge set for R-134a.
• Use the vacuum pump (specialty) to pull a deep vacuum (removes air and moisture).
• Verify it holds vacuum (a leak will cause vacuum to rise).
• Recharge with R-134a refrigerant using a refrigerant charging scale (specialty) to the exact amount listed on the under-hood A/C label.

Step 11: Final assembly

• Reconnect the negative battery terminal using a 10mm socket.
• Start the engine and turn A/C on MAX; watch pressures with the manifold gauge set.
• Check for leaks at all connections (a UV dye flashlight (optional) helps if dye is present).

---

✅ After Repair

• Confirm cold air at the vents and stable compressor operation (no rapid cycling).
• Recheck for leaks after a short drive and again the next day (oily residue at fittings is a clue).
• If cooling is weak, do not “top off” blindly; recover and recharge by weight.
• If the old compressor failed with debris, monitor closely; lingering contamination can damage the new unit.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor, varies with contamination repairs)

DIY Cost: $450-$1,200 (parts only, assuming you have A/C equipment)

You Save: $750-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
