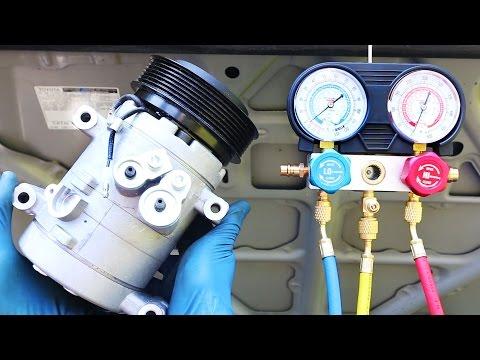

🔧 GX460 - A/C Compressor Replacement

Replacing the A/C compressor on your GX460 involves safely removing refrigerant, swapping the compressor (and usually key seals), then evacuating and recharging the system. This is important because opening the A/C system without proper recovery equipment is unsafe and illegal, and any moisture/air left inside can ruin the new compressor.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

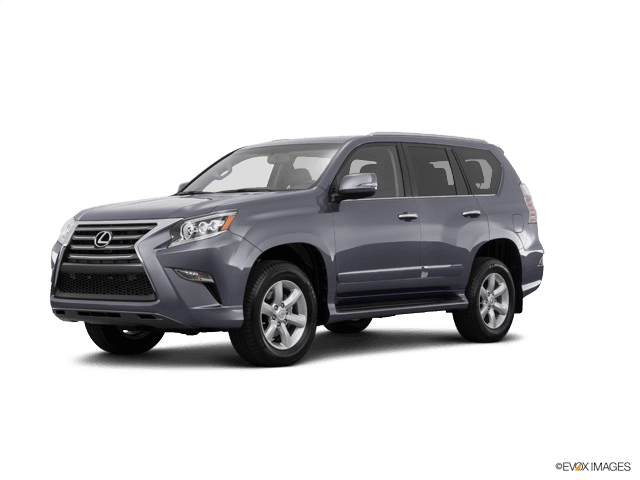

Assumption: Your GX460 uses R-134a refrigerant (most 2016 U.S. models do).

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with approved equipment—do not vent to atmosphere.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause severe frostbite.
• ⚠️ Work on a cool engine; keep hands/tools away from the fan and belt area.
• ⚠️ If you spill compressor oil, clean it immediately; it’s slippery and flammable.
• ⚠️ Disconnect the negative battery cable before unplugging A/C electrical connectors.
• ⚠️ Keep dirt out of open A/C lines; cap/plug lines immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-150 ft-lbs range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Pick tool set
• Line caps/plugs assortment
• Drain pan
• Shop rags
• A/C manifold gauge set for R-134a (specialty)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV leak detection flashlight (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (new or remanufactured) - Qty: 1
• A/C compressor clutch (if not included with compressor) - Qty: 1
• A/C compressor O-ring seal set - Qty: 1
• Receiver/drier or condenser with integrated drier (if applicable) - Qty: 1
• Expansion valve (recommended if compressor failed internally) - Qty: 1
• Serpentine belt (recommended if worn/cracked) - Qty: 1
• PAG compressor oil (ND-OIL 8 equivalent) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood label

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks.
• Have a shop (or an A/C machine) recover the refrigerant before you loosen any A/C line.
• Disconnect the negative battery cable using a 10mm socket.
• Plan to replace any opened O-rings and keep all A/C ports capped during the job.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use a refrigerant recovery machine (specialty) to recover the system charge completely.
• Do not crack lines “to see if it’s empty”.
• A manifold gauge set is a two-gauge hose set that reads A/C high/low pressure.

Step 2: Raise and support the front

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jack point.
• Set the truck onto jack stands (rated 3-ton minimum) and gently shake-check stability.

Step 3: Remove lower covers for access

• Remove any front/lower splash shields using a 10mm socket and trim clip removal tool.
• Place hardware in a tray so nothing gets lost.

Step 4: Remove the serpentine belt from the A/C compressor

• A serpentine belt is the single belt that drives multiple accessories.
• Use a serpentine belt tool (specialty) or breaker bar to rotate the belt tensioner and relieve tension.
• Slide the belt off the A/C compressor pulley first, then release the tensioner slowly.
• Sketch the belt routing before removal.

Step 5: Disconnect the compressor electrical connector

• Use a pick tool set carefully to release the connector lock if needed.
• Pull the connector straight off; do not yank on the wires.

Step 6: Remove the A/C refrigerant lines from the compressor

• Place a drain pan under the compressor area and keep shop rags ready.
• Use the appropriate socket set (commonly 10mm socket or 12mm socket) to remove the line retaining bolts.
• Immediately cap/plug the open lines and the compressor ports using line caps/plugs assortment.
• Remove and discard old O-rings using a pick tool set.
• Torque: Line flange bolts vary by fastener—Torque to OEM spec (use a service manual/spec source for exact value).

Step 7: Unbolt and remove the compressor

• Support the compressor with one hand.
• Use a 14mm socket and ratchet to remove the compressor mounting bolts.
• Lower the compressor out carefully.
• Torque: Mounting bolt torque varies by bolt/location—Torque to OEM spec.

Step 8: Prepare the new compressor (oil + seals)

• Check the new compressor instructions for oil level; many ship pre-filled, some ship drained.
• If you drained the old compressor, measure what came out and add the same amount of PAG compressor oil (ND-OIL 8 equivalent) to the new unit.
• Install new O-rings from the A/C compressor O-ring seal set and lightly lubricate them with clean PAG oil using a gloved finger.
• Never use grease or engine oil on A/C O-rings.

Step 9: Install the new compressor

• Position the compressor and start bolts by hand to avoid cross-threading.
• Tighten mounting bolts evenly using a 14mm socket and finish with a torque wrench.
• Torque: Torque to OEM spec.

Step 10: Reconnect A/C lines and electrical connector

• Remove caps/plugs and connect the refrigerant lines straight into place (do not force).
• Install line bolts using a 10mm socket or 12mm socket, then finish with a torque wrench.
• Torque: Torque to OEM spec.
• Reconnect the compressor electrical connector until it clicks.

Step 11: Reinstall the belt and covers

• Route the belt correctly and use the serpentine belt tool (specialty) or breaker bar to move the tensioner.
• Verify the belt is seated in every pulley groove before releasing the tensioner.
• Reinstall splash shields using a 10mm socket and trim clip removal tool.

Step 12: Evacuate and recharge the A/C system

• Reconnect the negative battery cable using a 10mm socket.
• Use an A/C manifold gauge set for R-134a (specialty) and an A/C vacuum pump (specialty) to pull a deep vacuum.
• A vacuum pump removes air/moisture so the A/C cools correctly and doesn’t corrode internally.
• Hold vacuum and verify it doesn’t rise (a rise usually means a leak).
• Charge by weight using a refrigerant scale (specialty) to the exact amount listed on the under-hood A/C label.
• Charging by pressure is not accurate.

---

✅ After Repair

• Start the engine and set A/C to MAX; verify the compressor engages and cold air comes from the vents.
• Check for abnormal belt noises and recheck belt alignment.
• Inspect all A/C fittings for oil residue and leaks.
• Use a UV leak detection flashlight (specialty) if dye is present to confirm no seepage at the compressor fittings.
• Recheck A/C performance after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$2,200 (parts + labor)

DIY Cost: $450-$1,200 (parts only, plus refrigerant service if you pay a shop)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
