🔧 Sportage - A/C Compressor Replacement

Replacing the A/C compressor on your Sportage is a big job because the refrigerant is pressurized and must be recovered, then the system must be vacuum-evacuated and recharged to an exact weight. If the compressor failed internally, you may also need additional parts to prevent repeat failure.

Difficulty Level: Advanced | Estimated Time: 4-6 hours (plus evac/recharge time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is high-pressure and can cause frostbite/eye injury—do not loosen A/C lines unless the system has been professionally recovered.
• ⚠️ Venting refrigerant is illegal and dangerous—use an A/C recovery machine (shop or licensed technician).
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor clutch/control connector.
• ⚠️ Work on a cool engine—hot exhaust components are close to the compressor area.
• ⚠️ Support the SUV with jack stands on solid points—never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Metric combination wrench set 10mm-19mm
• Metric line wrench set 12mm-19mm
• Serpentine belt tool 14mm
• Trim clip remover
• Pick set
• Torque wrench 10-200 Nm
• Drain pan
• Shop towels
• A/C manifold gauge set for R-134a
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C line O-ring kit - Qty: 1
• Receiver/drier or desiccant element (if serviceable) - Qty: 1
• PAG A/C compressor oil (correct spec per underhood label/service info) - Qty: 1
• R-134a refrigerant (charge amount per underhood label) - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the A/C refrigerant professionally recovered before you start any under-hood disassembly.
• Plan to replace the A/C line O-rings any time a line is disconnected.
• If your old compressor failed loudly or seized, plan on replacing the receiver/drier (it traps moisture and debris).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use an refrigerant recovery machine (specialty) to remove all R-134a from the system before loosening any A/C fittings.
• Do not crack a line “to check pressure.”

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery terminal and position it so it can’t spring back.

Step 3: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the engine under cover/splash shield using a trim clip remover and metric socket set 8mm-19mm (fastener sizes vary).

Step 4: Remove the serpentine belt

• Use a serpentine belt tool 14mm to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a quick photo of belt routing before removal.
• If the belt is cracked, replace it.

Step 5: Unplug the compressor electrical connector

• From below/side access, disconnect the compressor connector by releasing the lock tab using a pick set (gently) if needed.

Step 6: Disconnect the A/C refrigerant lines at the compressor

• Place a drain pan under the compressor area and have shop towels ready for oil drips.
• Use metric line wrench set 12mm-19mm (line fitting sizes vary) to loosen the suction and discharge line fasteners/fittings.
• Immediately cap/cover the open lines and compressor ports with shop towels to keep moisture and dirt out.
• Remove old O-rings with a pick set (don’t scratch the metal sealing surfaces).

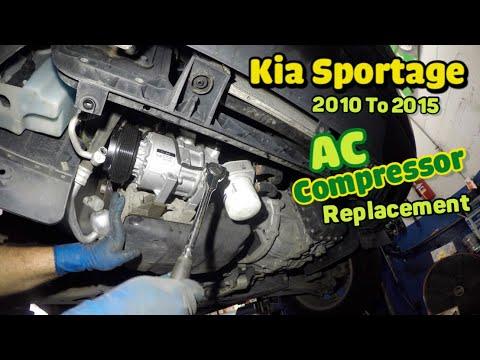

Step 7: Remove the A/C compressor

• Support the compressor with one hand while removing mounting bolts using a metric socket set 8mm-19mm, 3/8" drive ratchet, and 3/8" drive extensions (3" and 6").
• Remove the compressor from below.
• Torque: Reinstall compressor mounting bolts to OEM Kia specification (varies by fastener/location).

Step 8: Match the compressor oil amount

• Pour the oil out of the old compressor into a measuring container in your drain pan to estimate how much came out.
• Add the same amount of the correct PAG A/C compressor oil into the new compressor (unless your new compressor’s instructions specify a different approach).
• Slowly rotate the compressor hub by hand a few turns to distribute oil (do not power it).
• Too much oil can reduce cooling.

Step 9: Install new O-rings and reinstall the lines

• Lightly coat new O-rings with clean PAG A/C compressor oil.
• Install the lines squarely to avoid pinching O-rings, then tighten with a metric line wrench set 12mm-19mm.
• Torque: Tighten A/C line fasteners/fittings to OEM Kia specification (overtightening can crush O-rings or crack fittings).

Step 10: Reinstall the serpentine belt and splash shield

• Route the belt correctly and use the serpentine belt tool 14mm to rotate the tensioner and slip the belt back on.
• Reinstall the splash shield using the trim clip remover and metric socket set 8mm-19mm.

Step 11: Evacuate the system (vacuum) and leak-check

• Connect the A/C manifold gauge set for R-134a and pull vacuum with a vacuum pump (specialty) for at least 30-45 minutes.
• Close the valves and verify vacuum holds (a rise usually means a leak).
• If it won’t hold vacuum, don’t recharge.

Step 12: Recharge by weight (not by pressure)

• Recharge with R-134a using a refrigerant scale (specialty) to the exact amount listed on the underhood A/C label.
• Follow safe charging practices using the A/C manifold gauge set for R-134a.

Step 13: Final checks

• Reconnect the battery using a 10mm socket.
• Start the engine and turn A/C on MAX; confirm the compressor engages and the air gets cold.
• Inspect for leaks at the compressor/line connections with a bright light and shop towels.

---

✅ After Repair

• Verify stable vent temperature and normal cycling at idle and at 1,500 rpm.
• Listen for belt squeal or grinding at the compressor pulley.
• Recheck for oily residue around the fittings after a short drive (oil can indicate a refrigerant leak).
• If cooling is weak or pressures look abnormal, stop and re-check charge amount and for leaks before running the compressor more.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have recovery/charge equipment)

You Save: $400-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
