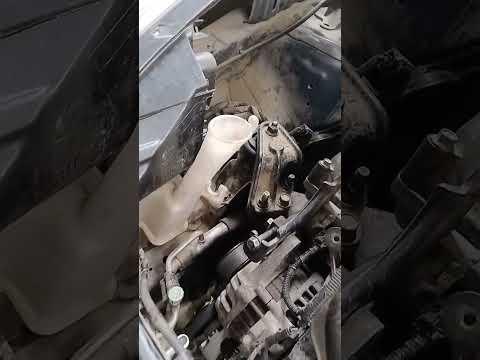

🔧 Rio - A/C Compressor Replacement

You’ll be removing the failed A/C compressor, replacing the sealing O-rings, and then pulling a deep vacuum and recharging the A/C system. This job is part mechanical and part A/C service—doing the evacuation/charge correctly is what prevents leaks and repeat failures.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Torque values and exact oil/refrigerant amounts are referenced to the under-hood label/service info for your Rio.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous: Do not vent refrigerant to the air—have the system recovered with an A/C recovery machine.
• ⚠️ Wear eye/hand protection: Refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Work on a cool engine: Keep hands/tools away from hot exhaust and radiator fans.
• ⚠️ Disconnect the battery: Remove the negative terminal before unplugging the compressor clutch connector.
• ⚠️ Keep dirt out: Cap/plug A/C lines immediately after disconnecting to prevent moisture contamination.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Serpentine belt tool (specialty)
• Torque wrench (10-100 ft-lbs range)
• Line wrench set (metric)
• Trim clip remover
• Flathead screwdriver
• Shop rags
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine access (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring seal kit - Qty: 1
• Receiver/drier or desiccant element (if serviceable on your system) - Qty: 1
• Refrigerant (per under-hood label specification) - Qty: 1 charge
• A/C compressor oil (per specification) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the A/C refrigerant professionally recovered before you loosen any A/C lines.
• Disconnect the negative battery terminal using a 10mm socket.
• Identify the refrigerant and charge amount from the under-hood A/C label; you will recharge by weight using a refrigerant scale.
• Tip: Take photos of belt routing and connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set (specialty) to the high and low service ports.
• Use a refrigerant recovery machine access (specialty) to recover the refrigerant fully.
• Confirm both gauges read ~0 psi before any disassembly.

Step 2: Raise the front of the car and remove lower shields

• Lift the front with a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove any splash shield/undercover fasteners using a 10mm socket, trim clip remover, and flathead screwdriver.

Step 3: Remove the drive belt from the A/C compressor

• Relieve belt tension using a serpentine belt tool (specialty) and slip the belt off the A/C compressor pulley.
• Tip: Sketch the belt routing before removal.

Step 4: Unplug the compressor electrical connector

• Locate the compressor clutch/control connector and unplug it by hand; use a flathead screwdriver gently if the lock tab is stuck.
• Move the harness aside so it can’t be pinched during reassembly.

Step 5: Disconnect the A/C suction and discharge lines at the compressor

• Place shop rags under the compressor to catch any oil.
• Remove the A/C line retaining bolt(s) using the correct socket (commonly 10mm socket or 12mm socket depending on fitting).
• Carefully wiggle the lines free; do not pry hard on aluminum tubes.
• Immediately cap/cover the open lines and compressor ports with clean plastic and a rubber band (use shop rags as a clean barrier).

Step 6: Remove the compressor mounting bolts and remove the compressor

• Support the compressor with one hand.
• Remove the mounting bolts using a 12mm socket and/or 14mm socket with a 3/8" drive ratchet and extensions (3" and 6").
• Lower the compressor out carefully without bending lines or hitting the radiator/condenser.

Step 7: Prepare the new compressor (oil and seals)

• Drain and measure oil from the old compressor into a container (use shop rags to prevent a mess).
• Add the correct type/amount of compressor oil to the new compressor per the service information/label.
• Replace all A/C fitting O-rings with the new ones from the A/C compressor O-ring seal kit.
• Lightly coat the new O-rings with clean A/C oil so they don’t tear during installation.
• Tip: Never reuse flattened or nicked O-rings.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts using a torque wrench (10-100 ft-lbs range) to Torque to OEM specification.

Step 9: Reconnect the A/C lines

• Remove caps and install the suction/discharge lines straight into the ports (don’t force them at an angle).
• Install the retaining bolt(s) using the correct socket and tighten with a torque wrench (10-100 ft-lbs range) to Torque to OEM specification.
• Wipe the fittings clean with shop rags so future leaks are easier to spot.

Step 10: Reconnect the electrical connector and reinstall the belt

• Plug the compressor connector back in until it clicks.
• Route the belt correctly and apply tension using the serpentine belt tool (specialty).

Step 11: Reinstall splash shields and lower the vehicle

• Reinstall undercovers using a 10mm socket, trim clip remover, and flathead screwdriver.
• Lower the vehicle off the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).

Step 12: Evacuate the system (deep vacuum) and recharge by weight

• Reconnect the A/C manifold gauge set (specialty).
• Connect the vacuum pump (specialty) and pull vacuum for at least 30–45 minutes.
• Close the valves and verify vacuum holds for 10–15 minutes (a rise suggests a leak or moisture boiling off).
• Recharge with the exact refrigerant amount by weight using a refrigerant scale (specialty) per the under-hood label.

Step 13: Reconnect the battery and function-check

• Reconnect the negative battery terminal using a 10mm socket.
• Start the engine and set A/C to MAX, blower high, and recirculation ON.
• Verify the compressor engages, vent air gets cold, and pressures look normal on the A/C manifold gauge set (specialty).

---

✅ After Repair

• Check for leaks at the compressor line fittings (look for oily residue) after a short drive.
• Confirm no belt squeal and that the belt tracks straight on all pulleys.
• If cooling is weak: verify charge by weight again—“pressure only” charging often leads to poor performance.
• Tip: Keep A/C caps installed to prevent slow leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor, includes recover/evac/recharge)

DIY Cost: $250-$700 (parts only, assuming you have A/C service tool access)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
