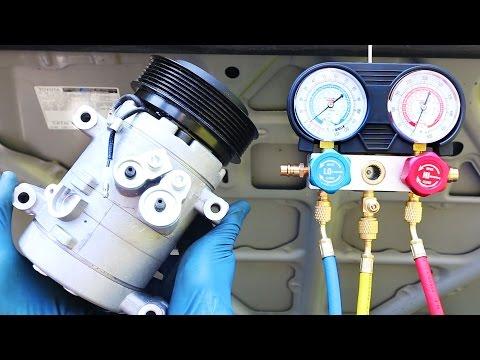

🔧 K900 - A/C Compressor Replacement

Your A/C compressor is the heart of the air-conditioning system. Replacing it means safely recovering the refrigerant, swapping the compressor, installing new seals, then vacuuming and recharging the system to the correct amount so it cools properly and doesn’t leak.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

Assumption: Your K900 uses R-134a refrigerant; verify under-hood A/C label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment—do not vent refrigerant to the air.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause frostbite instantly.
• ⚠️ Keep hands clear of the cooling fans; they can turn on unexpectedly.
• ⚠️ Do not open A/C lines until the system is fully recovered (pressure = 0).
• ⚠️ Disconnect the negative battery cable before unplugging the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip remover
• Plastic pry tool set
• Socket set (8mm-19mm)
• Ratchet (3/8")
• Breaker bar (3/8" or 1/2")
• Torque wrench (10-150 ft-lbs)
• Serpentine belt tool (specialty)
• Line wrench set (14mm-19mm)
• Pick set
• Drain pan
• A/C manifold gauge set (specialty)
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring kit - Qty: 1
• PAG A/C compressor oil (correct viscosity for K900) - Qty: 1
• Refrigerant (R-134a) - Qty: 1 (charge by weight)
• Serpentine belt - Qty: 1 (recommended if belt shows cracks/glazing)
• A/C receiver/drier or desiccant element (if serviced separately on this system) - Qty: 1 (recommended when compressor fails)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully; you’ll be working near hot components.
• Use a refrigerant recovery machine (a service machine that pulls refrigerant into a tank) to recover the A/C system until both gauges read zero pressure.
• Disconnect the negative battery cable using a 10mm socket and secure it so it can’t spring back.
• Raise the front safely with a floor jack and support with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set (specialty) to the high and low service ports.
• Recover the refrigerant using a refrigerant recovery machine (specialty) until the system is fully empty.
• If you’re new: the manifold gauges show system pressure; both sides should drop to 0 psi before you open any lines.

Step 2: Remove lower covers for access

• Remove the engine under cover/splash shield using a trim clip remover and socket set (8mm-12mm).
• Keep clips and bolts grouped so reassembly is easy.

Step 3: Relieve and remove the serpentine belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and relieve tension.
• Slide the belt off the A/C compressor pulley and route it aside.
• Snap a quick photo of belt routing.

Step 4: Unplug the compressor electrical connector

• Release the connector lock and unplug it using a plastic pry tool set if needed.
• Do not pull on the wires—only the connector body.

Step 5: Disconnect the A/C refrigerant lines from the compressor

• Place a drain pan under the compressor area.
• Use line wrench set (14mm-19mm) to loosen the A/C line fitting/bolts (a line wrench grips more sides of the nut to prevent rounding).
• Remove the lines and immediately cap/cover openings to keep moisture out.
• Remove old O-rings with a pick set (careful not to scratch sealing surfaces).

Step 6: Remove the A/C compressor mounting bolts

• Support the compressor by hand.
• Remove compressor mounting bolts using a ratchet (3/8") and socket set (12mm-17mm).
• Lower and remove the compressor from the vehicle.

Step 7: Prepare the replacement compressor (oil + seals)

• Drain and measure oil from the old compressor into a drain pan (note the amount).
• Add the same amount of correct PAG A/C compressor oil to the new compressor (unless the new unit’s instructions specify otherwise).
• Install new O-rings from the A/C compressor O-ring kit; lightly lubricate them with clean PAG oil.
• Never install O-rings dry.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts using a torque wrench (10-150 ft-lbs) to OEM spec: Torque to XX Nm (YY ft-lbs).

Step 9: Reconnect the A/C lines

• Install the suction/discharge lines squarely onto the compressor with the new O-rings in place.
• Tighten the line fasteners using a torque wrench (10-150 ft-lbs) to OEM spec: Torque to XX Nm (YY ft-lbs).
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall the serpentine belt and covers

• Route the belt correctly and use the serpentine belt tool (specialty) to move the tensioner, then slip the belt on.
• Visually confirm the belt is seated in every pulley groove.
• Reinstall the splash shield using a socket set (8mm-12mm) and trim clip remover.

Step 11: Evacuate the system (vacuum)

• Reconnect the A/C manifold gauge set (specialty).
• Connect the vacuum pump (specialty) and pull a deep vacuum for at least 30-45 minutes.
• Close the valves and watch for vacuum loss for ~10 minutes; loss suggests a leak.

Step 12: Recharge by weight

• Recharge using refrigerant (R-134a) on a refrigerant scale (specialty) to the exact under-hood label specification.
• Start the engine, set A/C to MAX, and monitor pressures with the A/C manifold gauge set (specialty).

---

✅ After Repair

• With the engine running and A/C on MAX, confirm cold air at the vents and stable compressor operation.
• Inspect all compressor line connections for oil residue or hiss (leak signs).
• Recheck belt tracking; it should run centered and quiet.
• If cooling is weak or pressures are abnormal, stop and recheck charge amount and leaks (most issues are under/overcharge or an O-ring pinch).

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,400 (parts + labor)

DIY Cost: $450-$1,200 (parts only)

You Save: $750-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
