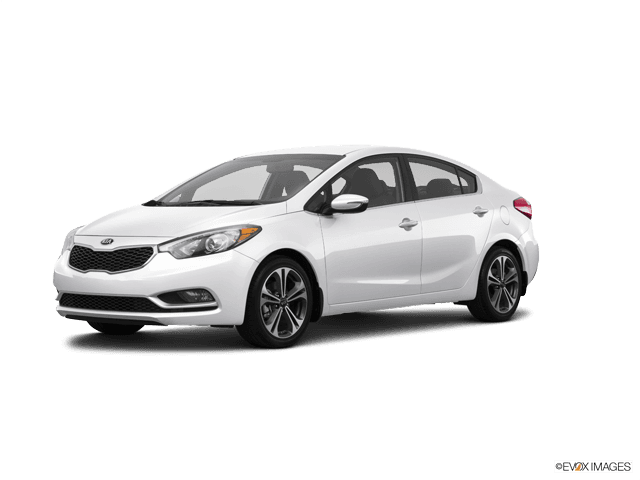

🔧 Forte - A/C Compressor Replacement

Replacing the A/C compressor on your Forte involves safely recovering the refrigerant, removing the drive belt, swapping the compressor (and sealing O-rings), then pulling a deep vacuum and recharging the system. This job is very doable, but the refrigerant-handling steps must be done correctly to avoid leaks and compressor failure.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Using R-134a refrigerant and standard belt-driven compressor setup.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous: Do not vent A/C refrigerant to the air; recover it with proper equipment.
• ⚠️ High pressure risk: Never loosen A/C lines until the system is fully recovered.
• ⚠️ Hot/rotating parts: Work on a cool engine and keep hands clear of the belt path.
• ⚠️ Battery safety: Disconnect the negative battery terminal before unplugging the compressor clutch/valve connector.
• ⚠️ Cleanliness: Keep A/C lines capped—dirt/moisture can ruin the new compressor.
• ⚠️ Jack safety: Support the car with jack stands on solid ground; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Extensions set (3" and 6")
• Serpentine belt tool or 17mm wrench
• Trim clip removal tool
• Flat screwdriver
• Line/flare-nut wrench set (12mm-17mm)
• Pick tool set
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV leak detection flashlight (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (PAG viscosity per compressor spec) - Qty: 1
• R-134a refrigerant - Qty: 1 charge
• Serpentine drive belt - Qty: 1 (recommended if belt shows cracks/glazing)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Recover the refrigerant using a proper recovery machine before opening any A/C connection.
• Disconnect the negative battery cable using a 10mm socket.
• Have caps/plugs ready for A/C lines (even clean tape works in a pinch) to keep moisture out.
• A “manifold gauge set” reads A/C pressure on high/low sides.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (must be done first)

• Connect the A/C manifold gauge set for R-134a (specialty) to the low and high service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• Confirm both gauges show no pressure before you disconnect anything.

Step 2: Lift and access the compressor area

• Loosen the right-front wheel lug nuts slightly using a 19mm socket.
• Lift the front-right corner with a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove the wheel using a 19mm socket.
• Remove the right-front splash shield/liner fasteners using a trim clip removal tool and 10mm socket.

Step 3: Remove the serpentine belt from the A/C compressor

• Relieve belt tension using a serpentine belt tool or 17mm wrench on the belt tensioner.
• Slip the belt off the A/C compressor pulley and let it rest clear of the work area.
• Take a quick photo of belt routing.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab using a flat screwdriver (gently).
• Move the harness aside so it can’t get pinched during removal.

Step 5: Remove the A/C refrigerant line manifold from the compressor

• Place rags under the connection to catch oil drips.
• Remove the manifold retaining bolt(s) using a 10mm socket (common) or the correct size from your metric socket set 8mm-19mm.
• Carefully wiggle and pull the manifold straight out of the compressor.
• Immediately cap/plug the open lines and compressor ports to keep moisture out.
• Remove old O-rings using a pick tool set (don’t scratch sealing surfaces).

Step 6: Unbolt and remove the compressor

• Support the compressor with one hand while removing mounting bolts using a 14mm socket (common) from your metric socket set 8mm-19mm.
• Remove the compressor from the bracket and guide it out through the wheel well opening.
• Torque note (install): Compressor mounting bolts are typically Torque to 25 Nm (18 ft-lbs).

Step 7: Prepare the new compressor (oil + seals)

• Compare the old and new compressor ports/connectors to ensure they match.
• Check whether the new compressor is pre-filled with oil; drain and measure if needed into a clean container.
• Add the correct amount/type of PAG oil as required for a compressor replacement (use the compressor/parts guidance for your Forte).
• Lightly coat new O-rings with clean PAG oil, then install them on the manifold fittings.
• Dry O-rings can tear and leak.

Step 8: Install the new compressor

• Position the compressor in place and start all mounting bolts by hand.
• Tighten evenly using a 14mm socket and finish with a 3/8" drive torque wrench (10-100 Nm range).
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts (verify if your bolts differ).

Step 9: Reinstall the A/C line manifold

• Remove caps/plugs and insert the manifold straight into the compressor (do not force it).
• Install the manifold retaining bolt(s) using a 10mm socket.
• Torque to 10 Nm (7 ft-lbs) for the manifold bolt (small bolt—do not over-tighten).

Step 10: Reconnect electrical and reinstall the belt

• Reconnect the compressor electrical connector until it clicks.
• Route the belt correctly and relieve tension using a serpentine belt tool or 17mm wrench, then slip the belt back onto the A/C compressor pulley.
• Visually confirm the belt ribs sit fully in every pulley groove.

Step 11: Reinstall splash shield and wheel

• Reinstall the splash shield/liner using a trim clip removal tool and 10mm socket.
• Reinstall the wheel using a 19mm socket.
• Lower the car and tighten lug nuts with a 3/8" drive torque wrench (10-100 Nm range).
• Torque to 88-108 Nm (65-80 ft-lbs) for lug nuts.

Step 12: Vacuum the system and recharge

• Reconnect the A/C manifold gauge set for R-134a (specialty).
• Use the vacuum pump (specialty) to pull vacuum for 30-45 minutes to remove air and moisture.
• Close valves and verify vacuum holds for 10-15 minutes (if it rises, you likely have a leak).
• Recharge by weight using a refrigerant scale (specialty) and R-134a refrigerant.
• Charge amount: Use the under-hood A/C label specification (do not guess; correct charge is critical).

Step 13: Restore power

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and turn A/C on MAX; confirm the compressor engages and the center vent air gets cold.
• Check manifold gauge readings look stable (no extreme high-side spike).
• Inspect the compressor manifold area for oil/refrigerant seepage.
• If you have UV dye in the system, scan fittings with a UV leak detection flashlight (specialty).
• If it cools then warms, stop and recheck charge/leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor + evac/recharge)

DIY Cost: $250-$750 (parts only, assuming access to A/C service equipment)

You Save: $650-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
