🔧 Renegade - A/C Compressor Replacement

Replacing the A/C compressor on your Renegade means safely recovering the refrigerant, removing the drive belt and compressor, then installing the new unit and recharging the system. The “why” is usually a seized/noisy compressor, a clutch that won’t engage, or internal failure that contaminates the system.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment; venting refrigerant is illegal and dangerous.
• ⚠️ Wear safety glasses and gloves; refrigerant can cause frostbite on contact.
• ⚠️ Keep hands/tools away from the belt path; the engine must be OFF when working near pulleys.
• ⚠️ A/C lines can be under pressure even with the engine off; confirm zero pressure before disconnecting lines.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor/clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip removal tool
• Serpentine belt tool
• 3/8" drive ratchet
• 1/2" drive ratchet
• Socket set 8mm-18mm
• Torx bit set T20-T40
• Torque wrench (10-150 Nm)
• Line wrench set 13mm-19mm
• Pick set
• Oil drain pan
• Shop rags
• Manifold gauge set for A/C service (specialty)
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV dye/blacklight kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring seal set - Qty: 1
• Receiver/drier or accumulator - Qty: 1
• Expansion valve or orifice component (system-dependent) - Qty: 1
• Serpentine belt - Qty: 1
• A/C refrigerant (per under-hood label: R-134a or R-1234yf) - Qty: 1 charge
• A/C compressor oil (per under-hood label: PAG oil type/viscosity) - Qty: as needed

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Have a shop recover the refrigerant first, or use a refrigerant recovery machine (specialty) to pull the refrigerant out into a storage tank.
• Find the under-hood A/C label and note the exact refrigerant type and charge amount; you must recharge by weight using a refrigerant scale (specialty).
• Plan to replace the receiver/drier (or accumulator) anytime the system is opened to air.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant safely

• Connect the manifold gauge set for A/C service (specialty) to the high and low service ports.
• Use the refrigerant recovery machine (specialty) to recover refrigerant until both gauges show no pressure.
• Do not vent refrigerant to the air.

Step 2: Disconnect the battery

• Use a 10mm socket with a 3/8" drive ratchet to remove the negative battery terminal and isolate it so it can’t spring back.

Step 3: Raise the vehicle and remove lower access panels

• Lift the front with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Remove the lower splash shield/undertray using a trim clip removal tool and Torx bit T25/T30 with a 3/8" drive ratchet (fasteners vary by panel).

Step 4: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a photo of the belt routing before removal.

Step 5: Disconnect the compressor electrical connector

• Press the lock tab and unplug the connector at the compressor.
• If the lock is stubborn, use a pick set gently to lift the tab. Don’t pry hard—tabs break easily.

Step 6: Disconnect the A/C lines from the compressor

• Place an oil drain pan under the compressor area.
• Use the correct socket or line wrench set 13mm-19mm (depends on fitting style) to remove the line retaining fasteners.
• Pull the lines straight off and immediately cover the open ends with clean shop rags to keep moisture/dirt out.
• Remove and discard old O-rings using a pick set.

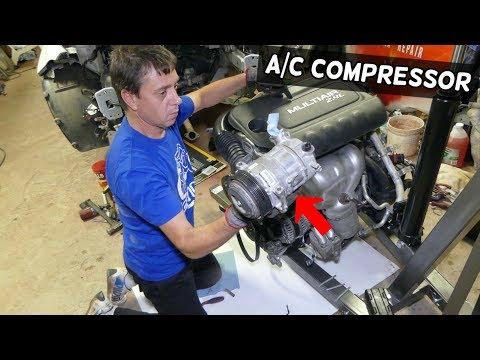

Step 7: Remove the A/C compressor

• Support the compressor by hand.
• Remove the compressor mounting bolts using the correct socket (commonly 13mm-15mm) with a 3/8" drive ratchet.
• Lower the compressor out carefully, watching for any remaining oil dripping into the oil drain pan.
• Torque to OEM spec (Jeep service manual) on reinstallation using a torque wrench (10-150 Nm).

Step 8: Prep the new compressor (oil and seals)

• Drain and measure oil from the old compressor into the oil drain pan, then add the same amount of the correct A/C compressor oil to the new compressor (unless the new compressor instructions specify otherwise).
• Lightly lubricate new O-rings with clean A/C compressor oil and install them onto the A/C line ends.
• Never reuse old O-rings.

Step 9: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten using a socket and 3/8" drive ratchet, then final-tighten with a torque wrench (10-150 Nm).
• Torque to OEM spec (Jeep service manual).

Step 10: Reconnect A/C lines

• Push the lines straight into place to avoid pinching O-rings.
• Install the retaining bolts/fittings using the correct socket or line wrench set 13mm-19mm.
• Torque to OEM spec (Jeep service manual) using a torque wrench (10-150 Nm).

Step 11: Reconnect the electrical connector and reinstall the belt

• Plug in the compressor connector until it clicks.
• Route the belt correctly and use the serpentine belt tool to move the tensioner and slip the belt back on.

Step 12: Reinstall undertray and lower the vehicle

• Reinstall the splash shield using the Torx bit set T20-T40 and trim clip removal tool.
• Lower the vehicle from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 13: Evacuate (vacuum) and recharge by weight

• Reconnect the manifold gauge set for A/C service (specialty).
• Use the vacuum pump (specialty) to pull a deep vacuum and hold it to check for leaks. (A vacuum pump removes air/moisture so the A/C works and doesn’t corrode inside.)
• If vacuum holds, recharge using the exact refrigerant type and weight on the under-hood label with a refrigerant scale (specialty).
• If desired, add dye per kit directions and inspect with a UV dye/blacklight kit (specialty).

Step 14: Reconnect the battery and function check

• Reconnect the negative battery cable using a 10mm socket and 3/8" drive ratchet.
• Start the engine and set A/C to MAX. Confirm cold air, stable idle, and that pressures look normal on the manifold gauge set for A/C service (specialty).

---

✅ After Repair

• Verify the A/C clutch/compressor engages and cycles normally and that vent temperature drops.
• Listen for abnormal noise (grinding/knocking) that could indicate debris in the system.
• Check for leaks at the compressor fittings with the UV dye/blacklight kit (specialty) if dye was used.
• If the old compressor failed internally, strongly consider flushing and replacing the receiver/drier and metering device; contamination can quickly destroy the new compressor.

---

💰 DIY vs Shop Cost

Shop Cost: ₹35,000-₹85,000 (parts + labor, varies with contamination/flush)

DIY Cost: ₹18,000-₹55,000 (parts only, assuming you already have recovery/recharge equipment)

You Save: ₹10,000-₹40,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,200-₹3,000/hour. This repair takes a shop approximately 3-6 hours.

---
