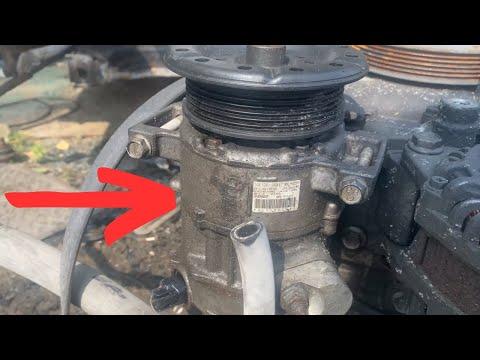

🔧 Patriot - A/C Compressor Replacement

On your Patriot, replacing the A/C compressor is only part of the job—the refrigerant must be safely recovered first, and the system must be vacuumed and recharged to the correct amount afterward. This repair is very doable for a careful DIYer, but it typically requires an A/C machine (or a shop step) to stay legal and prevent damage.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure—do not vent it to the air; have it recovered with proper equipment.
• ⚠️ Keep hands/tools clear of the belt path; the engine can’t be run during disassembly.
• ⚠️ Wear eye protection—refrigerant oil and debris can irritate eyes/skin.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor clutch connector.
• ⚠️ Cap/plug A/C lines immediately after disconnecting to keep moisture out.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-18mm
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Serpentine belt tool (specialty)
• Torque wrench (10-100 ft-lbs)
• Line/flare-nut wrench set (metric)
• Trim clip removal tool
• Flat-blade screwdriver
• Catch pan
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• R-134a can tap/charging hose (specialty)
• O-ring pick set
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (with clutch) - Qty: 1
• A/C compressor O-ring set - Qty: 1
• PAG refrigerant oil (R-134a compatible) - Qty: 1
• R-134a refrigerant - Qty: 2-3 cans
• Serpentine belt - Qty: 1
• A/C receiver/drier or accumulator - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the A/C system refrigerant professionally recovered before you loosen any A/C line fittings.
• Disconnect the battery using a 10mm socket on the negative terminal and tuck the cable aside.
• If you’re replacing the receiver/drier/accumulator (recommended), do it after the system is opened and keep ports capped until install.
• Moisture is the enemy—cap lines fast.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the Patriot safely

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum) at the front jacking point.
• Support with jack stands (rated 3-ton minimum) under the proper support points.

Step 2: Remove lower splash shield (if equipped)

• Use a trim clip removal tool and flat-blade screwdriver to remove clips/screws.
• Set all fasteners aside in a small tray.

Step 3: Remove serpentine belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley last, then remove the belt.
• Snap a belt routing photo first.

Step 4: Unplug the compressor electrical connector

• Locate the compressor clutch connector at the compressor.
• Release the lock tab using a flat-blade screwdriver (gently) and unplug it.

Step 5: Disconnect the A/C lines from the compressor

• Place a catch pan under the compressor to catch any oil that may drip out.
• Use a line/flare-nut wrench set (metric) (or correct metric socket if it’s a block-style flange) to remove the line fasteners.
• Pull the lines straight back—do not pry hard on aluminum tubes.
• Immediately cap/cover the open lines and compressor ports with shop rags.

Step 6: Remove the compressor mounting bolts

• Support the compressor with one hand.
• Use a metric socket set 8mm-18mm, 3/8" drive ratchet, and 3/8" drive extensions (3" and 6") to remove the mounting bolts.
• Remove the compressor from below, working it out carefully around the subframe.

Step 7: Prepare the new compressor (oil and O-rings)

• Remove and replace the line O-rings using an O-ring pick set.
• Lightly coat new O-rings with PAG refrigerant oil (R-134a compatible) so they don’t tear.
• If your new compressor is not pre-filled, add the correct amount of PAG refrigerant oil per the compressor instructions.
• Rotate the compressor clutch/pulley by hand a few turns to distribute oil evenly.
• Never install O-rings dry.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand using a metric socket set 8mm-18mm.
• Tighten evenly, then final-tighten with a torque wrench (10-100 ft-lbs).
• Torque to 27 Nm (20 ft-lbs) for compressor mounting bolts.

Step 9: Reconnect the A/C lines

• Install lines straight into place to avoid pinching O-rings.
• Tighten line fasteners using a line/flare-nut wrench set (metric) or metric socket set 8mm-18mm.
• Torque to 12 Nm (106 in-lbs) for A/C line flange bolts.

Step 10: Reconnect compressor electrical connector

• Plug the connector in until it clicks, no tools required.

Step 11: Install the serpentine belt

• Route the belt according to your photo and the under-hood routing diagram.
• Use a serpentine belt tool (specialty) to rotate the tensioner and slip the belt on.
• Visually confirm the belt is fully seated in every pulley groove.

Step 12: Reinstall splash shield and lower the vehicle

• Reinstall the shield using the trim clip removal tool and flat-blade screwdriver.
• Lower the Patriot from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 13: Evacuate (vacuum) the A/C system

• Connect the A/C manifold gauge set (specialty) to the high and low service ports.
• Connect the center hose to the vacuum pump (specialty).
• Pull vacuum for 30–45 minutes, then close valves and verify it holds vacuum for 10–15 minutes.
• If vacuum won’t hold, you have a leak.

Step 14: Recharge with R-134a by weight

• Place refrigerant on a refrigerant scale (specialty) and charge through the low side using a R-134a can tap/charging hose (specialty).
• Charge the system to the under-hood label specification using the scale (best method).
• If the label is missing: Assumption: Use the factory under-hood A/C charge label for the exact charge amount.

Step 15: Reconnect battery and function check

• Reconnect the negative terminal using a 10mm socket.
• Start the engine and turn A/C to MAX with recirculation.
• Confirm the compressor clutch engages and the air gets cold.

---

✅ After Repair

• Check for abnormal noises (grinding/squeal) from the compressor area with A/C on.
• Confirm vent temperature drops steadily and stays cold at idle.
• Inspect all A/C line connections for oily residue over the next few days (a common sign of a slow leak).
• If cooling is weak, recheck charge by weight using the refrigerant scale (specialty).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-5.0 hours.

---
